    Custom Roll Forming Machine

    Home Custom Roll Forming Machine V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine
    • V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine

    • This Steel Metal Rooftop Ridge Cap Roll Forming Machine is v shape type, full automatic with safety cover. There is another type design as round arc type, this depends on user's choice.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.35-0.55mm
      Material Width: 610mm
      Covered Width: V24
      Forming Station: 15
      Driving Motor: 5.5KW
      Shaft Diameter: 75mm
      Cutting Blade Material: Cr12
    • Contact Us
    Detailed description

    Custom design and manufacture kinds of steel sheet roll forming machines are available


    Product Name: V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine

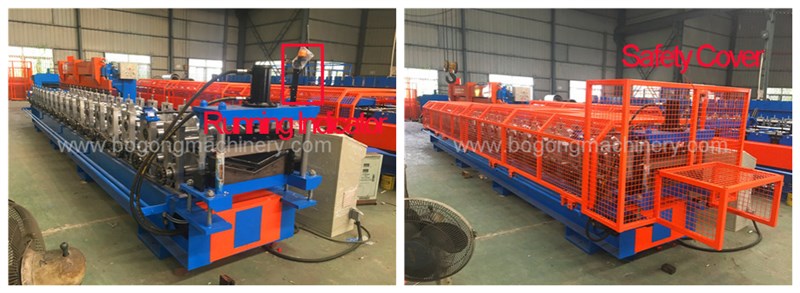

    n the steel construction market, there are different roof ridge cap roll forming machines based on different technical design on the Normally, a Roof ridge caps without STEPS sometimes can be used both as roof ridge caps and as roof valley flashings often. On our steel metal rooftop ridge cap roll forming machines, we have installed an indicator for showing producing line running state, if this indicator is light, mean whole producing line has been gotten through power supplier already, be care the electric power risk.

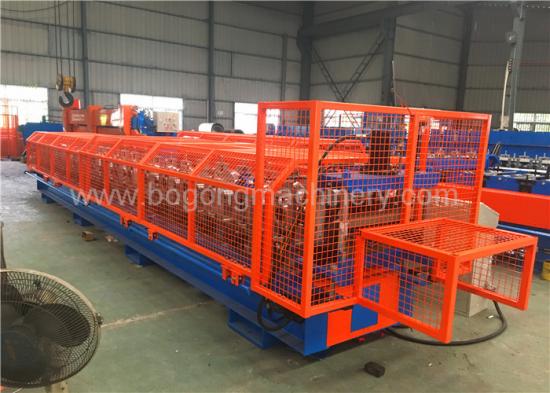

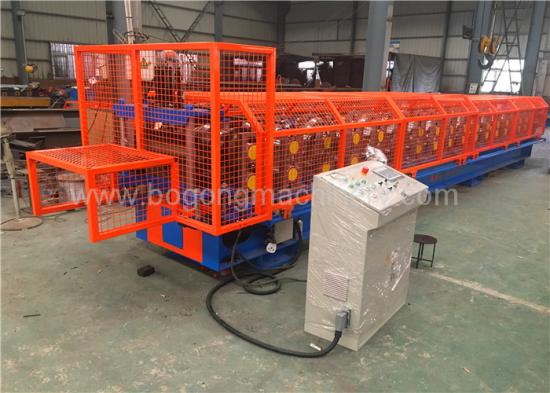

    Another safety work is roll forming line operator is there is safety cover unpon the roll forming machines, when the V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine is working, all the power parts are inside this safety cover, we only open this safety cover when we need any adjust or maintenance.

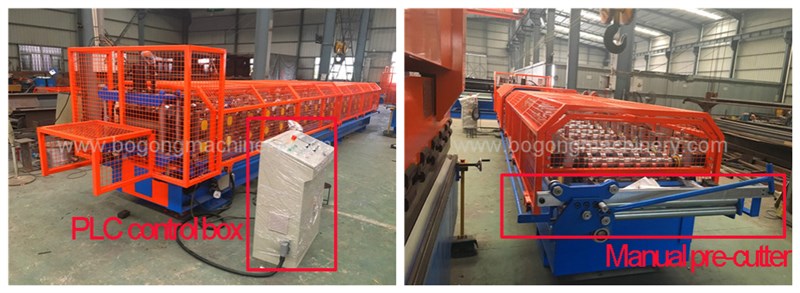

    Whole steel metal rooftop ridge cap roll forming machine is controlled by PLC control system, such as cutting off action, line speed, cutting quantity. it also can be combined with hydraulic uncoiler, hole punching section and even product pneumatic stacker. Custom design and manufacture are available.

    At the beginning end of steel metal rooftop ridge cap roll forming machine, there is one set manual pre-cutter, this is used for cutting no used material head and tail, the operator pull the pre-cutter's hand rod, then finish, it is very easy to operate and good usage.

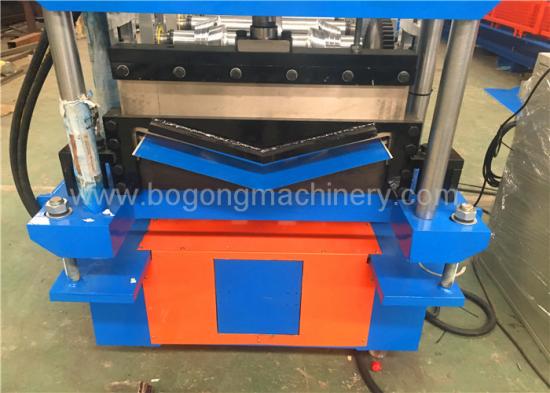

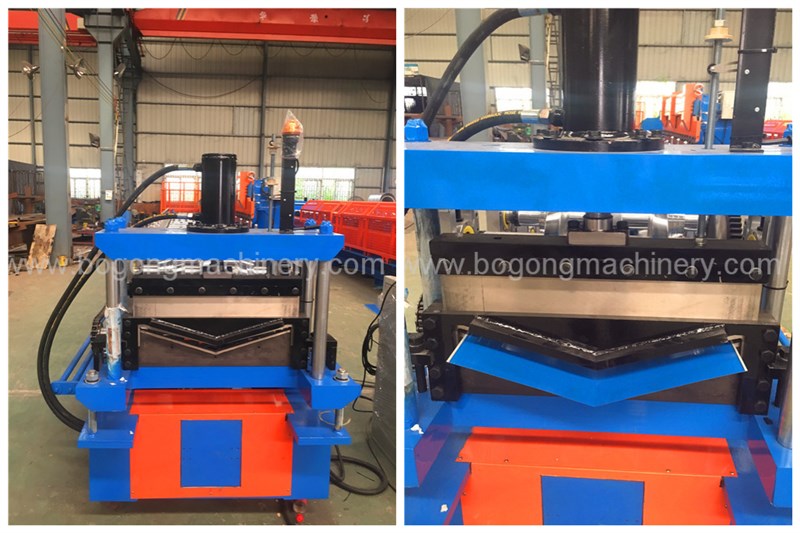

    This is the v shape rooftop ridge cap roll forming machine, and cutting off by no wasting cutting material type, hydraulic cutting, choose Cr12 material cutting blades.

    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    5.5KW

    Forming Steps

     15 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.35-0.55mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    8500*850*1350mm

    Weight

    4500KGS

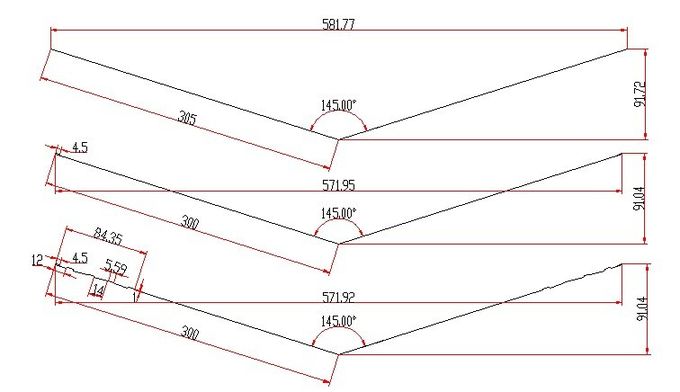

    Steel Ridge Cap Drawing

    The raw material width 610mm and material thickness is 0.35-0.55mm, can be rollformed from PPGI, pre-painted steel sheet, aluminum-zinc steel and galvanized sheet.
