    Custom Roll Forming Machine

    Home Custom Roll Forming Machine Sheet Metal Roof Top Ridge Cap Roll Forming Machine

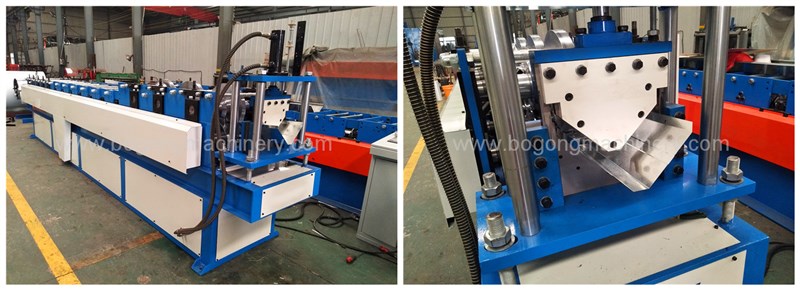

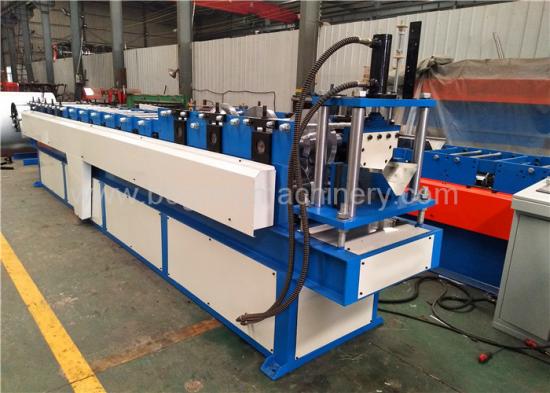

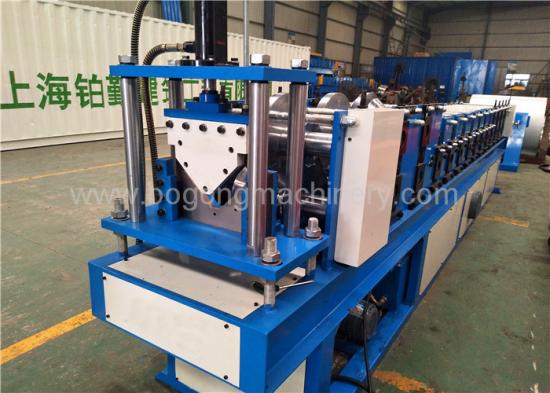

    • Sheet Metal Roof Top Ridge Cap Roll Forming Machine

    • This Sheet Metal Roof Top Ridge Cap Roll forming Machine is gutter type design, 12 stations roll forming, the speed can be more higher than tile roof type ridge cap.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 350mm
      Forming Station: 12 Steps
      Driving Motor: 5.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Customize ridge cap forming machine, ridge cap metal tile forming machine, ridge cap roofing machine and rain gutter roll forming machine


    Product name: Sheet Metal Roof Top Ridge Cap Roll forming Machine

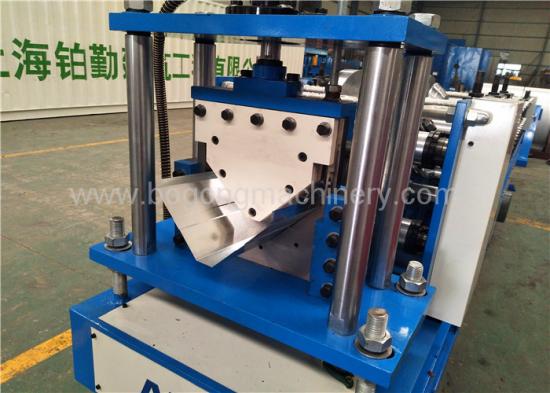

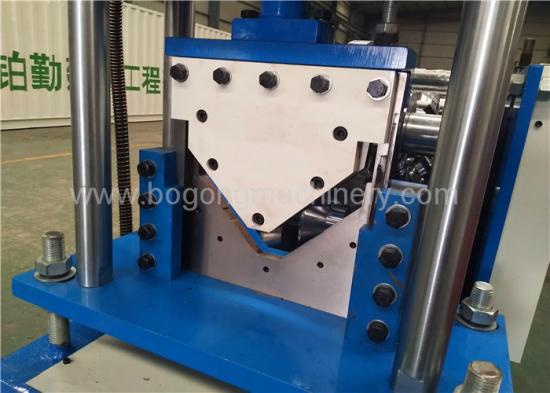

    This sheet metal roof top ridge cap roll forming machine is gutter design, not round arc type with tiles design, but it is the same application on roof top as ridge cap. We choose two piece of of cutting blades to cut off, no waste.

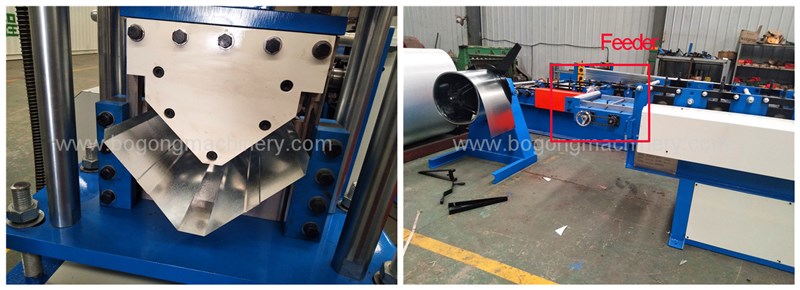

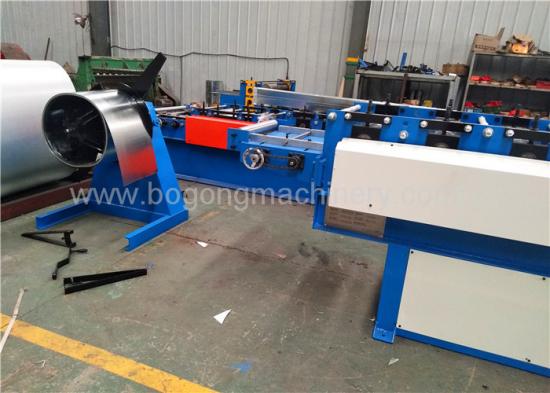

    At the beginning of sheet metal roof top ridge cap roll forming machine line, there is feeding rollers together with feeding table, good for feeding steel coil into roll forming machine section, the trip stop guider has been design, it can be used for adjusting different material width a little to make it suit for roll forming line.


    This is a portable design of metal roof ridge cap roll forming machines, 12 steps roll forming. Automatic produce, PLC control cutting length, quantity and producing speed., hydraulic system to cut off.

    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    5.5KW

    Forming Steps

     12 steps

    Working Speed

    15-18m/min

    Thickness for Steel

    0.4-0.6mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    7500*850*1350mm

    Weight

    3000KGS

    Our product range includes a wide range of ridge cap forming machine, ridge cap metal tile forming machine, ridge cap roofing machine and rain gutter roll forming machine. Welcome to inquiry!
