    Auxiliary Machine

    Home Auxiliary Machine Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine
    • Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine

    • Sheet Metal Roof Crimp Curved Roll Forming Machine is the auxiliary machines of metal roof sheet roll forming machine, it is used for producing the roof eave for steel construction, only can be formed after roll forming roof sheet out. Hydraulic crimp, automatic crimp curved.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.25-0.6mm
      Driving Motor: 5.5KW
      PLC Brand: Simenz
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Professional in design/manufacture PEB construction used, steel villa house used roll forming machines


    Product name: Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine

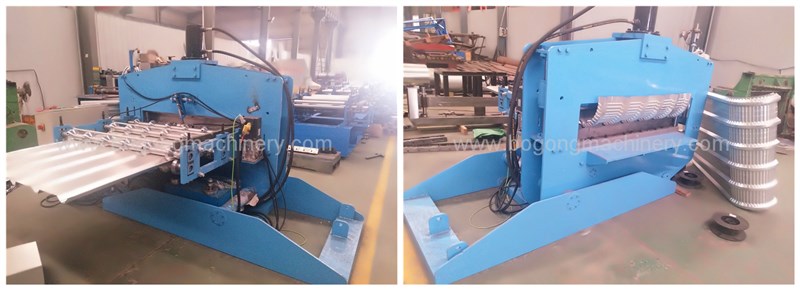

    Hydraulic sheet metal roof crimp curved roll forming machine is the auxiliary machine for steel roof sheet roll forming machine. It is the customized type of roll forming machine after finishing main roof sheet roll forming machine, because we need the roof sheet sample test crimp curved machine. This type of arc steel roof normally is used for steel construction roof eave, with this type of crimp curved roof, can proof wind and rain more better than common steel roof.

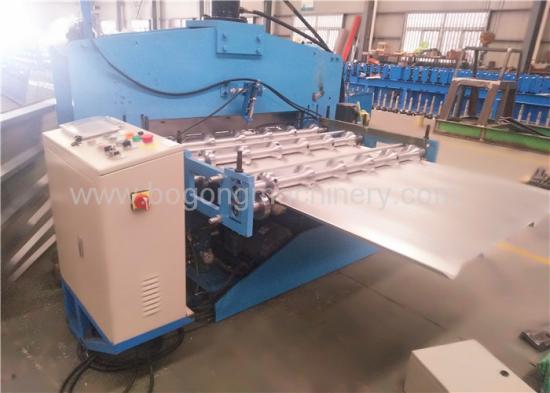

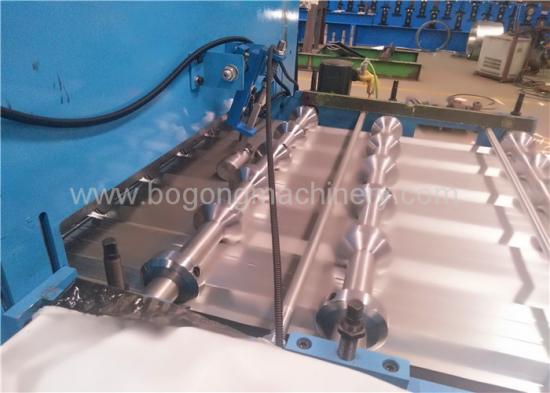

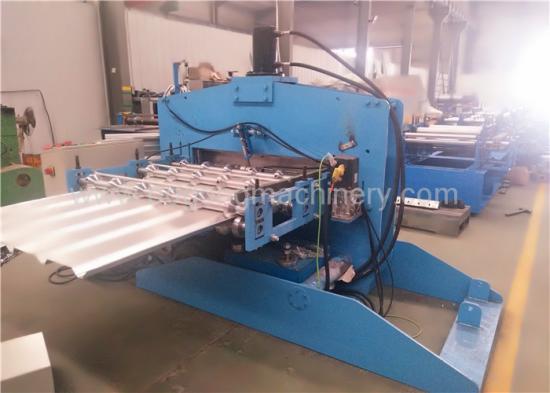

    See below pictures for reference, the roof sheet has been delivery into crimping curved die, then hydraulic system controlled by PLC  is working and crimping the embossing out, the crimping depth and roof radius can be set on PLC control box, whole roll forming machine can be fully automatic working.

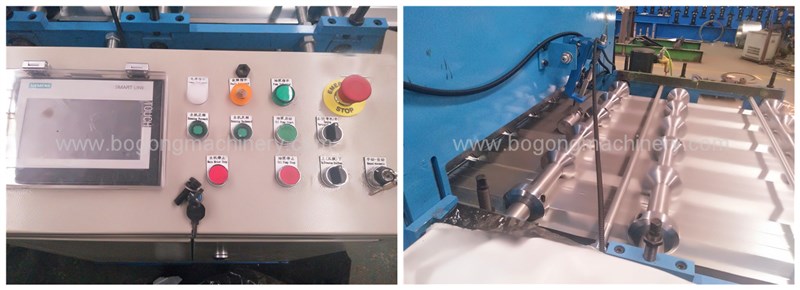

    Below is the PLC operational panel of our Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machines, we can start, stop machines on this panel, also control this crimp  curved roll forming machine work in vertical direction or horizontal direction, if there is any accident, press down the emergency stop soon. The working speed will be tested by encoder, see the encoder touches on roof surface, it can monitor how long the roof sheet has been crimped.

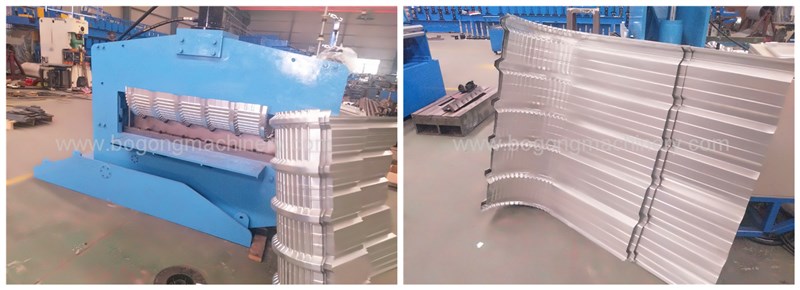

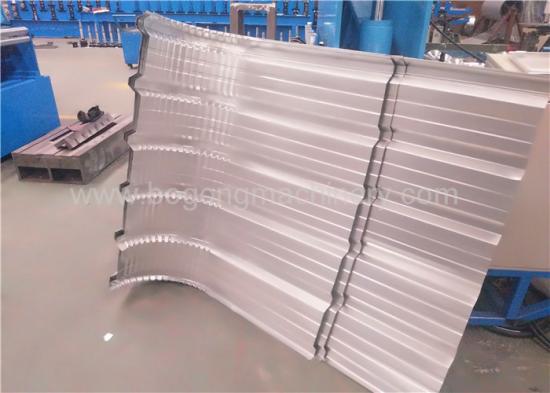

    Next picture is for showing our Hydraulic Sheet Metal Roof Crimp Curved Roll Forming Machine crimping curved effect, smoothly and nothing wrinkles happened of roof sheet surface.



    Technical Parameters


    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    5.5KW

    Forming Steps

     3 steps

    Working Speed

    0-10m/min

    Thickness for Steel

    0.25-0.6mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta, Simenz

    Encoder

    Omron

    Min. crimping radius

    500mm

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    3500*1450*1650mm

    Weight

    1500KGS

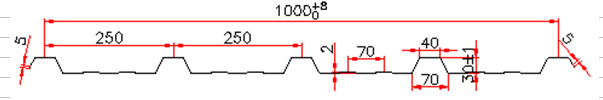

    Profile Design

    Feeding width: 1220mm, covered width: 1000mm; material thickness: 0.25-0.6mm
