    • Simple Slitting Cut To Length Machine Longitudinal Slitting Machine

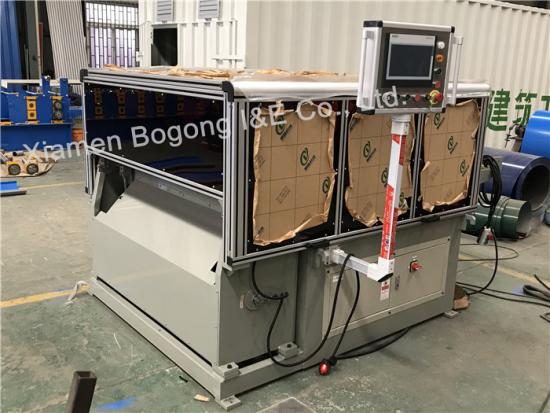

    • This cut to length machine is equipped with full protection guard, the safety guard is made by alluminum alloy frame, and covering by solid polycarbonate sheet.
    • Material Thickness: 0.3-1.0mm
      Material Width: Max. 1250mm
    • Contact Us
    Detailed description

    Simple Slitting Cut To Length Machine Longitudinal Slitting Machine

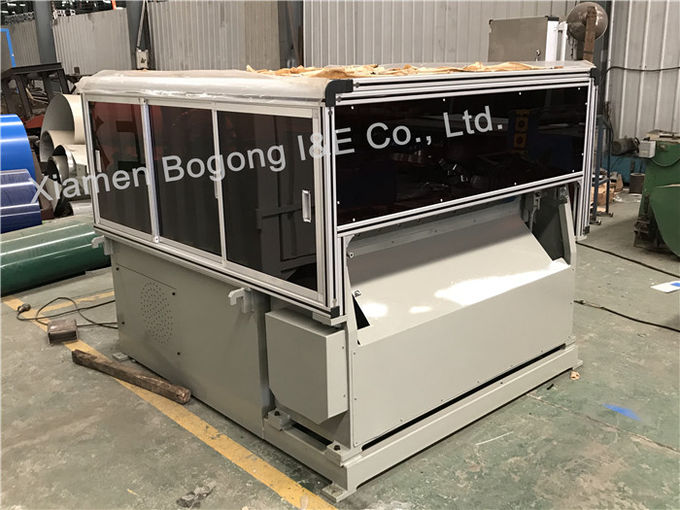

    This cut to length machine is equipped with full protection guard, the safety guard is made by alluminum alloy frame, and covering by solid polycarbonate sheet.

    The slitter have 5 sets of slitting rollers, material CR12, heat treatment. 4 sets will be installed in the machine to slit the sheet from 1 to 5 sheets maximum, another 1 set is for spare.




    Technical Parameter


    Straightening Machine  Nine shafts for straigthening
    Shafts manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
    Shafts Diameter=ф75mm, Precision Machined, fine Polished
    Main motor =5.5KW, Frequency speed control
    Max Line speed of roll Former: Approx. 7-15m/min
    Electric Guillotine Stop to shear, Post shearing
    Cutting tool material: Cr12Mov, Heat treatment
    Motor: 1.5KW
    PLC Control System Control the quantity & cutting length automatically
    Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
    Cut-to-length tolerance≤±2mm
    24V Control voltage
    Product Rack (or auto Stacker) Un-powered, 3 units



    Machine Description


    Metal sheets suppliers always need Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine for kinds for width and length from GI, PPGI coils.


    The relugar width (1000mm, 1219mm and 1250mm) GI, PPGI or Stainless coils are always brought from steel metal mill factory, but roll forming machine need kinds of material width, like roll formed roofing or wall panels, while there are many not common used steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

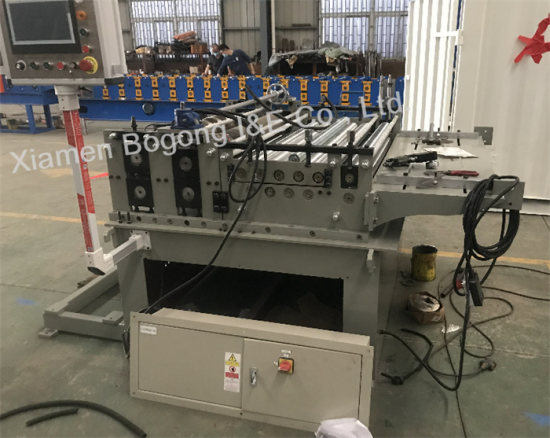

    A whole Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine includes: metal sheet guider, seven rollersleveling device, slitting rollers and cutting off blades.


    A Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine has been designed to cut longitudinally the wide steel coils into different narrow steel strips for producing continuously cold formed sectional steel products, like light gauge steel frames, c/z steel purlins and highway guard rails etc.
