    Auxiliary Machine

    Home Auxiliary Machine Automatic Metal Roof Sheet Crimping Curved Machine Customized Manufacture
    • Automatic Metal Roof Sheet Crimping Curved Machine Customized Manufacture

    • This Automatic Metal Roof Sheet Crimping Curved Machine Customized Manufacture is Controlled by PLC control program, with servo motor to feeding, better precision than common type crimping machine.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.6mm
      Driving Motor: 5.5KW
      PLC Brand: Simenz
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Custom make kinds of roof sheet roll forming machine, shutter door roll forming machine, tile roof roll forming machine, floor deck roll forming machine and other steel roll forming machines!


    Product name: Automatic Metal Roof Sheet Crimping Curved Machine Customized Manufacture


    Machine Details

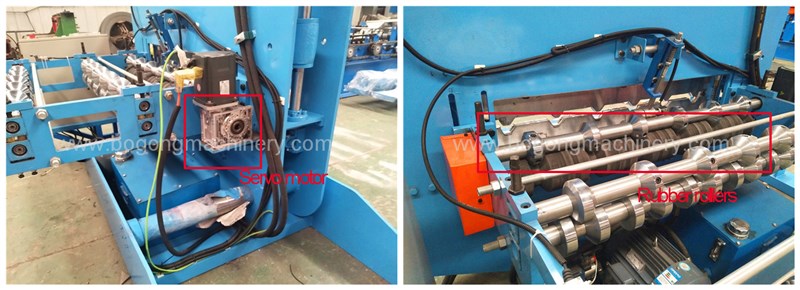

    Automatic Metal Roof Sheet Crimping Curved Machine Customized Manufacture is the next assistant machine for metal roof sheet roll forming machine. Our metal roof sheet crimping curved machine is with servo motor for feeding, it can improve the crimping action precision, but the crimping curved action will be done by hydraulic system.

    There is rubber material rollers on last feeding station, it is for keep metal roof sheet more better effective, no scrap or no destroy painting.

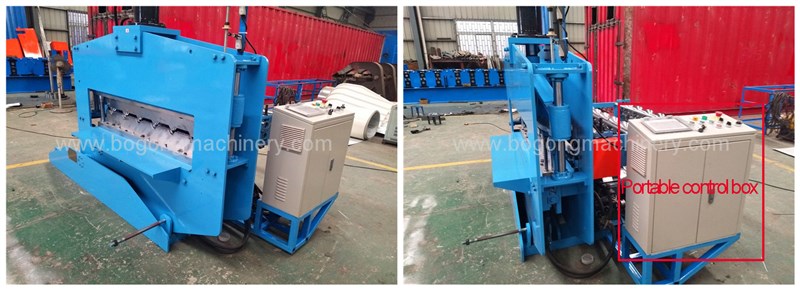

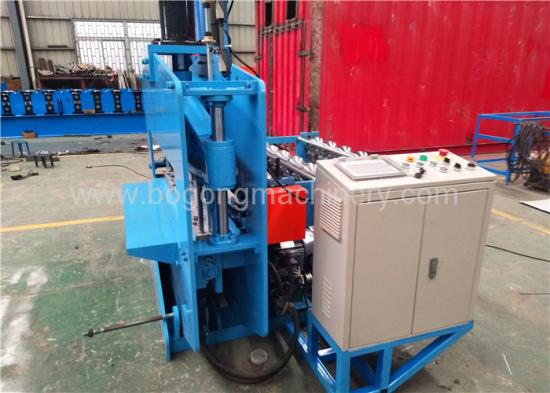

    This Automatic Metal Roof Sheet Crimping Curved Machine is controlled by PLC control system, we can start, stop machines on PLC operation board, also the PLC control system controls this crimp  curved roll forming machine work in vertical direction or horizontal direction, if there is any accident, press down the emergency stop soon. The working speed will be tested by encoder, see the encoder touches on roof surface, it can monitor how long the roof sheet has been crimped.

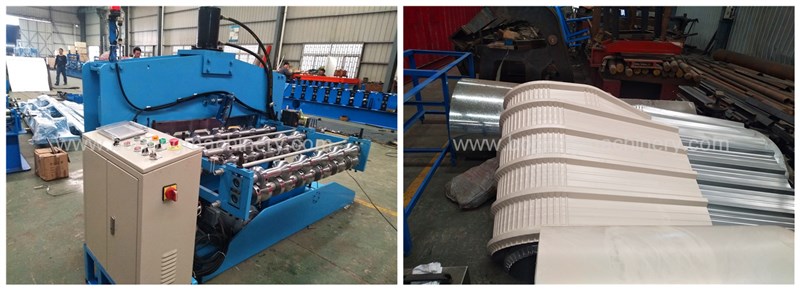

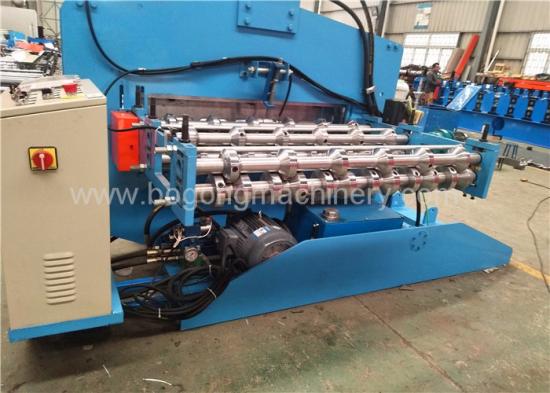

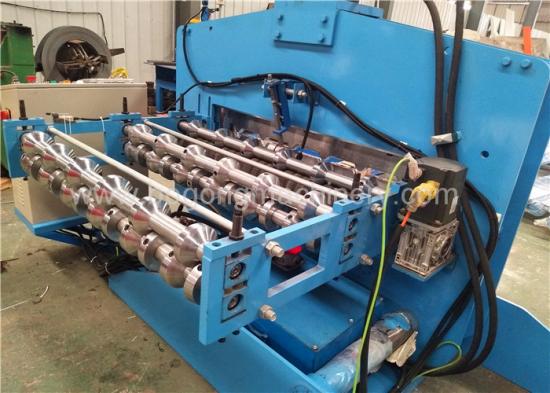

    We designed three stations for leading roof sheet into crimping mold on this Automatic Metal Roof Sheet Crimping Curved Machine, the feeding rollers are special designed according roof sheet design to ensure feeding roof sheet into crimping curved mold in straight direction. Another picture are crimping curved roof sheet sample produced by this Automatic Metal Roof Sheet Crimping Curved Machine.

    0


    Technical Parameters


    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    5.5KW

    Forming Steps

     3 steps

    Working Speed

    0-10m/min

    Thickness for Steel

    0.3-0.6mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta, Simenz

    Encoder

    Omron

    Min. crimping radius

    500mm

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    3500*1450*1650mm

    Weight

    1500KGS
