    Light Keel Roll Forming Machine

    Home Light Keel Roll Forming Machine Steel Construction Used Light Steel Keel Hat Roll Forming Machine

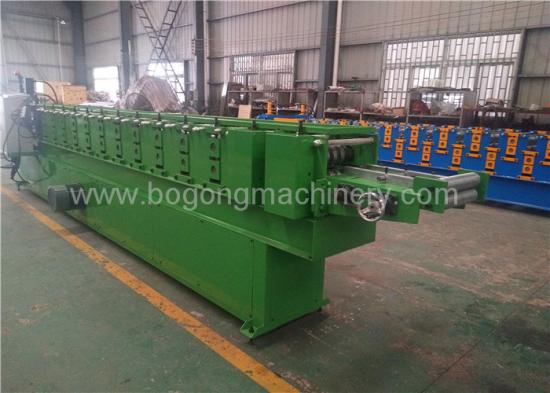

    • Steel Construction Used Light Steel Keel Hat Roll Forming Machine

    • This Steel Construction Used Light Steel Keel Hat Roll forming machine is manufactured by Xiamen Bogong Machinery, for processing galvanized sheet, but it is also available for pre-painted steel and aluminum zinc coil.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.8mm
      Material Width: 156mm
      Covered Width: 40mm
      Forming Station: 11 Stations
      Driving Motor: 4Kw
      Shaft Diameter: 65mm
    • Contact Us
    Detailed description

    Product name: Steel Construction Used Light Steel Keel Hat Roll forming machine


    Machine Details

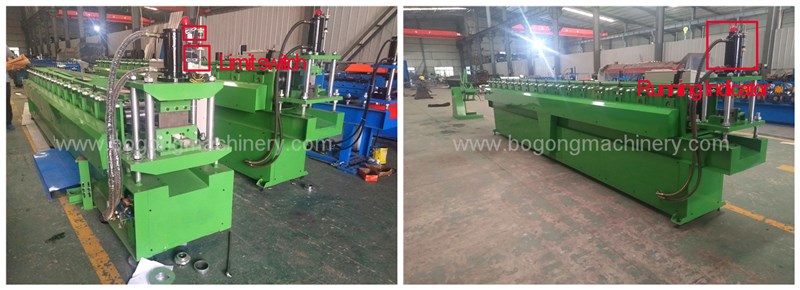

    There is limit switch on Steel Construction Used Light Steel Keel Hat Roll forming machine cutting section end, this switch is for controlling the upper cutting blade, to ensure the upper cutting blade won't go to too high or too lower. The mechanical part are combined with electric control system, full intelligent to track working state.


    We have installed machine running state indicator also, when the whole line has gotten through the power supply, this indicator will be light to notice the workers be careful of it. This is another safety items for our roll forming lines.

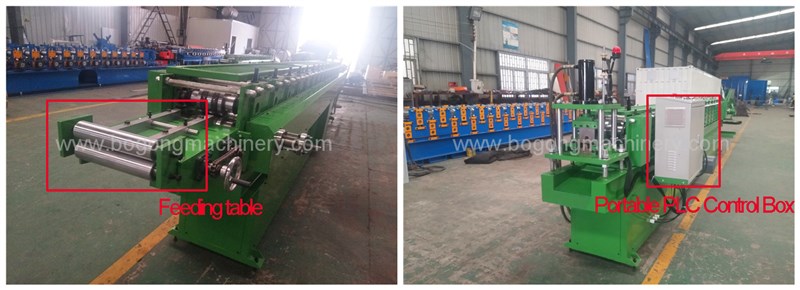

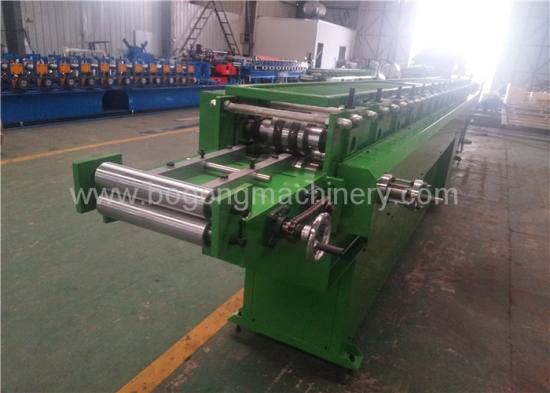

    This  Steel Construction Used Light Steel Keel Hat Roll forming machine  is small, just 11 steps roll forming, and about 5.8 meters long, so we design portable type PLC control box, welded on roll forming machine frame aside. And the feeding table is with one group of guiding roller. Hand wheel is on one side for adjusting different material feeding width.

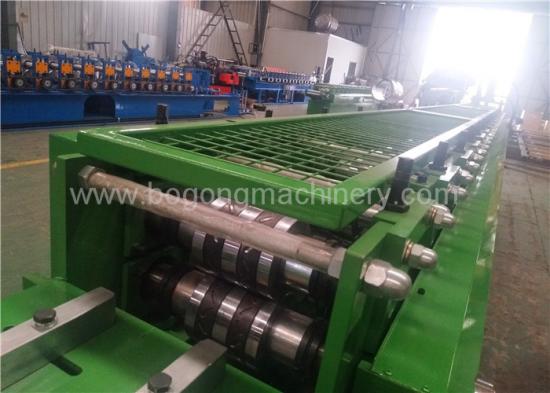

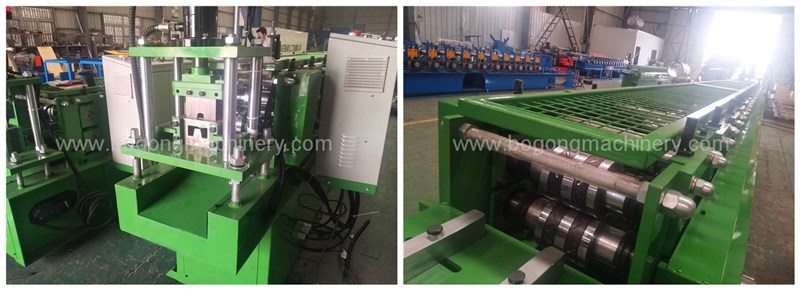

    Hydraulic cutting section for whole  Steel Construction Used Light Steel Keel Hat Roll forming machinesat the bottom is the waste material coming down  guiding plate. All roll forming section was covered with grids type of safety cover, the operator can see the working rollers well and avoid people's hand go inside, third safety part design of this  Steel Construction Used Light Steel Keel Hat Roll forming machines.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    4KW

    Forming Steps

     11 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.3-0.8mm

    Shaft Diameter

    65mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

    Galvanized steel

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    5800*950*1050mm

    Weight

    2500KGS

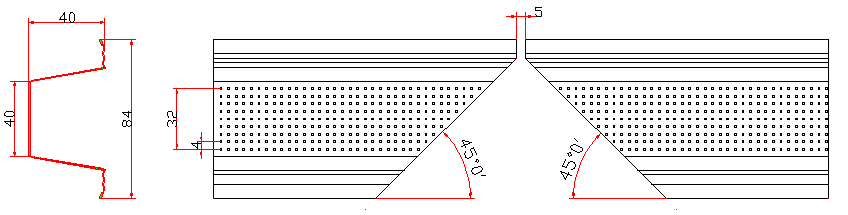

    Light Steel Keel hat Design Drawing


    This keel hat raw material strip width is about 156mm and thickness is 0.3-0.8mm, the bottom dot and swaist ribs  is the option designs for whole roll forming lines.
