    Light Keel Roll Forming Machine

    Home Light Keel Roll Forming Machine Light Steel Ceiling Channel Batten Roll Forming Machine
    • Light Steel Ceiling Channel Batten Roll Forming Machine

    • This Steel Construction Used Light Steel Keel Hat Roll forming machine is manufactured by Xiamen Bogong Machinery, for processing galvanized sheet, but it is also available for pre-painted steel and aluminum zinc coil.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.8mm
      Material Width: 156mm
      Covered Width: 40mm
      Forming Station: 11 Stations
      Driving Motor: 4Kw
      Shaft Diameter: 65mm
    • Contact Us
    Detailed description

    Kinds of steel keel, hat profile roll forming machines are accepted for custom manufacture


    Product name: Light Steel Ceiling Channel Batten Roll forming Machine


    Machine Details

    Light Steel Ceiling Channel Batten Roll forming Machine also called Light Steel keel Equipment , this small roll forming machine  is used for producing light steel keel, we design 11 stations roll forming. Light steel keel is popular used in construction area for ceiling decoration support and steel construction for wall or roof, such as hotel, train station, factory and office building, it is light but strong, easy for installation.

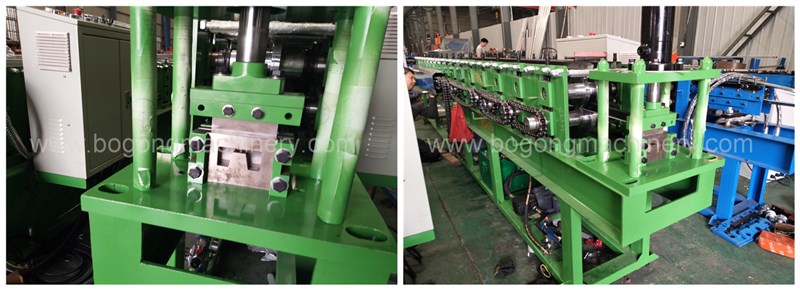

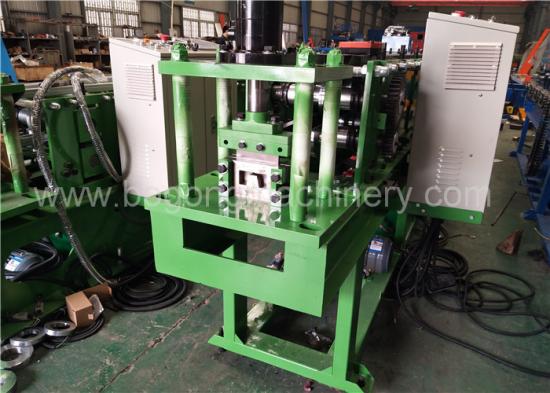

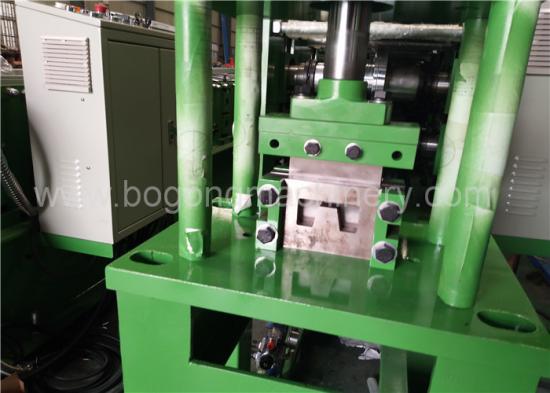

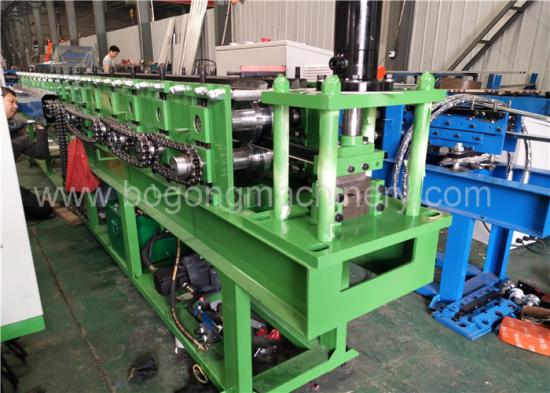

    Whole line choose hydraulic cutting off the steel channel battens, sprocket chains and gears to transport each station power.

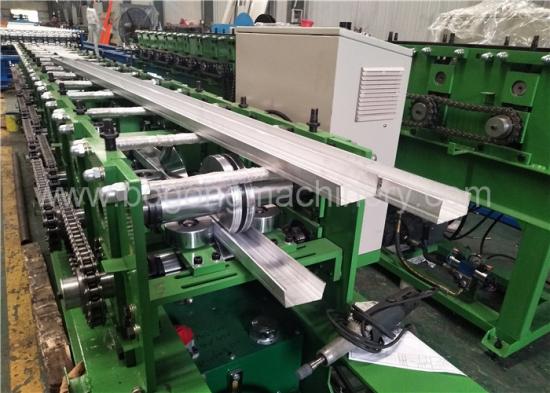

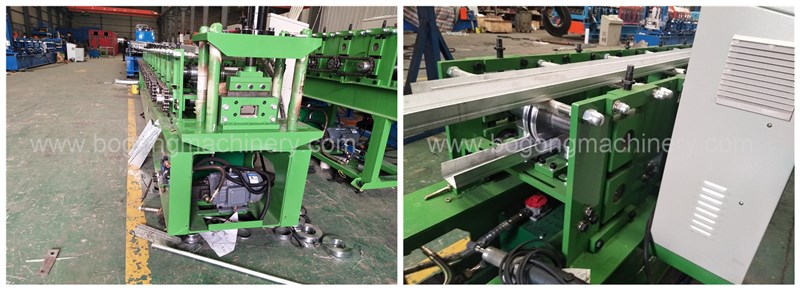

    This  Light Steel Ceiling Channel Batten Roll forming Machine  is small, about 5.8 meters long, so we design portable type PLC control box, welded on roll forming machine frame aside. Below picture is the small C channel steel keel, also used for ceiling batten. whole producing line is still adjusting and installing at our site.

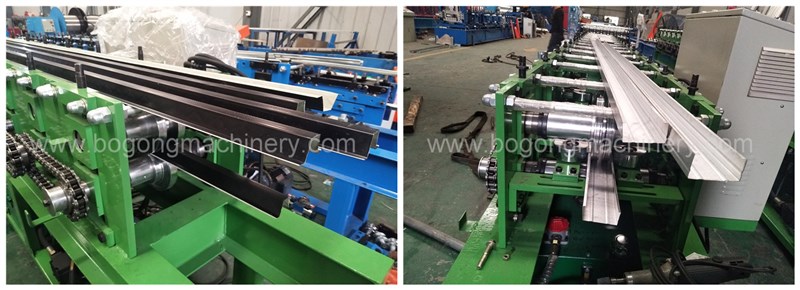

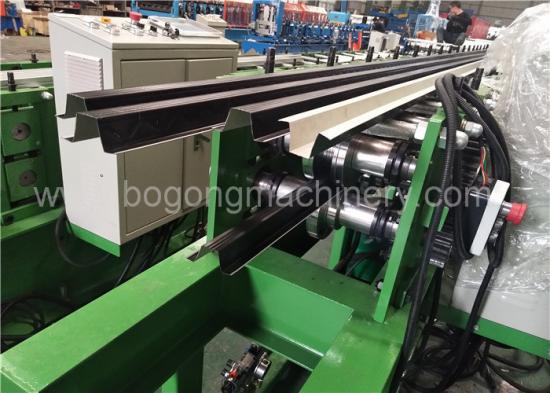

    Channel samples produced by Light Steel Ceiling Channel Batten Roll forming Machine, there is dot embossing at the channel's bottom position. For the c channel, there is also strengthening rib design both at bottom and waist. After all parts are finished, all roll forming section was covered with grids type of safety cover, the operator can see the working rollers well and avoid people's hand go inside.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    4KW

    Forming Steps

     11 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.3-0.8mm

    Shaft Diameter

    65mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

    Galvanized steel

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    5800*950*1050mm

    Weight

    2500KGS
