    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Pre-Painted Steel Roof Sheet Double layer Roll Forming Machine
    • Pre-Painted Steel Roof Sheet Double layer Roll Forming Machine

    • Double layer roll forming machine line is the popular designs for the market, it has several advantages as below: 1. Can save factory layout cost, two roof sheet roll forming machines only occupied one machine place; 2. Can save roll forming lines manufacturing cost a little; 3. Only need to maintenance one set hydraulic system and PLC control system.
    • Can be customized by user

    • Contact Us
    Detailed description

    Product Name: Pre-Painted Steel Roof Sheet Double layer Roll Forming Machine

    Technical Parameters


    No.

    Item

    Specification

    1

    Can Formed Material

    PPGI,GI,AI

    2

    Equipment operation

    Automatic

    3

    Voltage

    380V 50Hz 3Phase or as your requirement

    4

    Thickness of sheet (mm)

    0.4-0.6mm

    5

    Material width(mm)

    As your requirement

    6

    Cover Width of the sheet after formed

    as your drawing

    7

    The size of the roll forming machine

    9300mmx1600mmx1400mm

    8

    Speed

    10-15im/min

    9

    Diameter of shaft

    75mm

    10

    Weight of the Machine

    4500-6500KGS

    11

    Material of rollers

    45# steel quenched and chromed

    12

    Motor brand

    Siemens or Guomao

    13

    PLC

    Siemens or Delta or Mitsubishi

    14

    Total power (kw)

    7.5kw

    15

    Power of hydraulic system

    4kw

    16

    Chain Size

    1.5 inch


    Machine Details

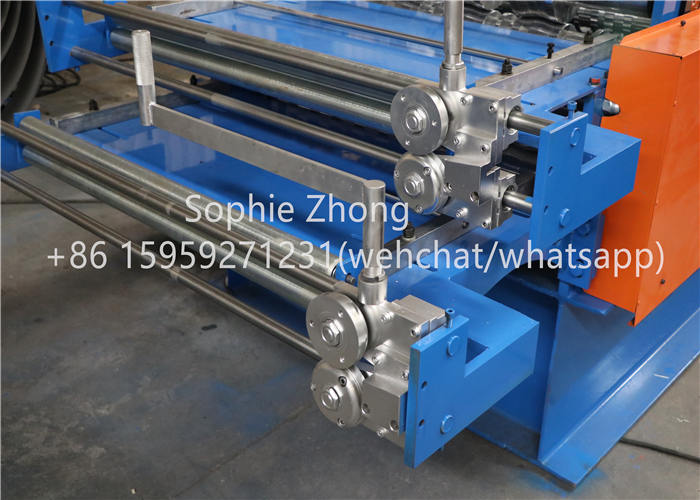

    Whole double layer roof roll forming line makes manual pre-shear for cutting material head and tail.

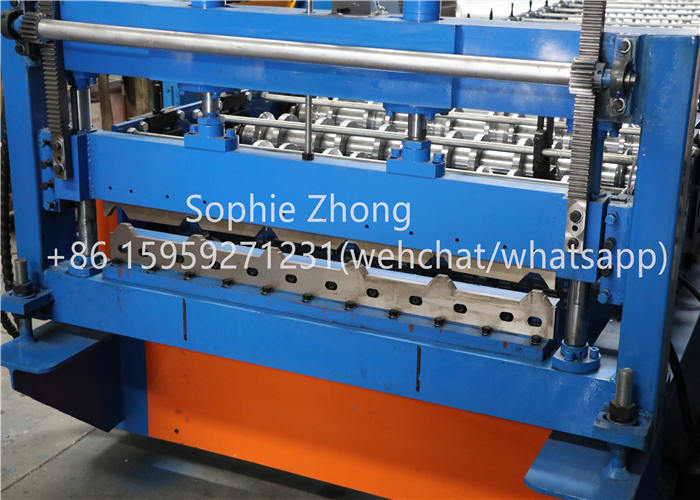

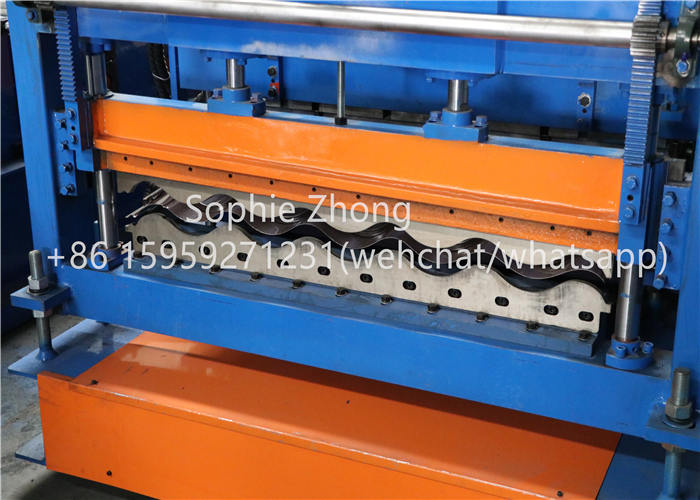

    Hydraulic Cutting Station

    The cutting off actions will be finished automatically, sample length and pieces can be set at PLC control system also.




    Machine Features

    a) The structure is simple and the appearance of the Double Layer Roof Sheet Forming Machine is beautiful, because we adopt the shape-steel structure, and most of the connectors are screws which make the machine flexible and stronger.
    b) All the components of machines are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
    d) It is very easy to install the equipment and suitable for producing in the factory.
    e) Low noise with high efficiency
