    Home Roof Tile Roll Forming Machine Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width
    • Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width

    • This Metal Steel Wave Roof Tile Roll Forming Machine is designed for roll forming aluminum sheet, the tile pressing mold and cutting blades are different from the color steel material, and the feeding width for this roll forming machine is 1200mm.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 1220mm
      Forming Station: 18 Station
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
      Roller Material: 45# Steel Coated With Hard Chrome
      Cutting Blade Material: Cr12
      PLC Brand: Simenz
    • Contact Us
    Detailed description

    Customized different kinds of roll forming machines for aluminum sheet, color steel sheet, galvanized sheet and aluminum zinc coated steel coil, all these machine can be used as tile roof, floor deck, metal roof, shutter door, high way guard rail, door frame and other application.


    Product Name: Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width

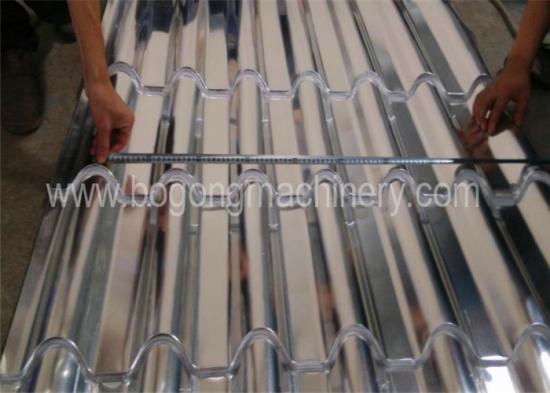

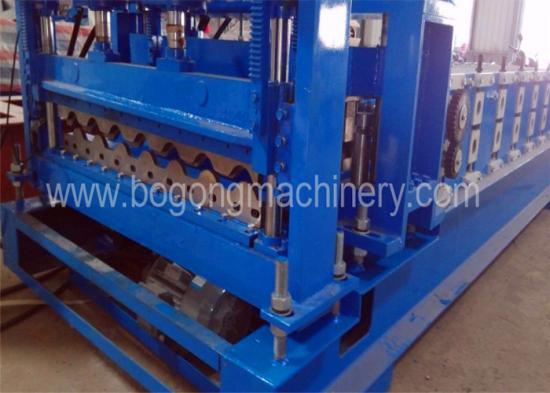

    This metal steel wave roof tile roll forming machine 1200mm feeding wdith is special designed for aluminum sheet, due aluminum sheet is soft and easy broken, the tile mold should be manufactured specially also. See the roof tiles come out from step tile mold, the tile position is smooth, there is nothing wrinkle on it.

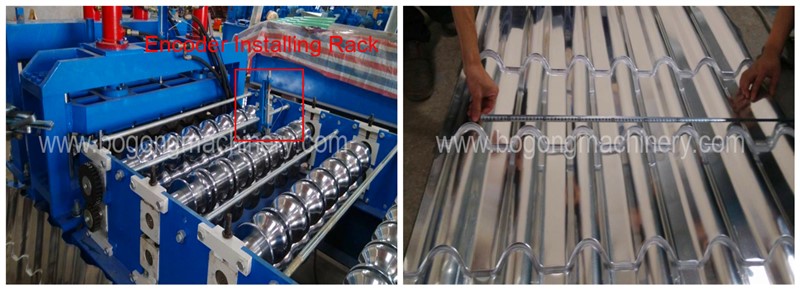

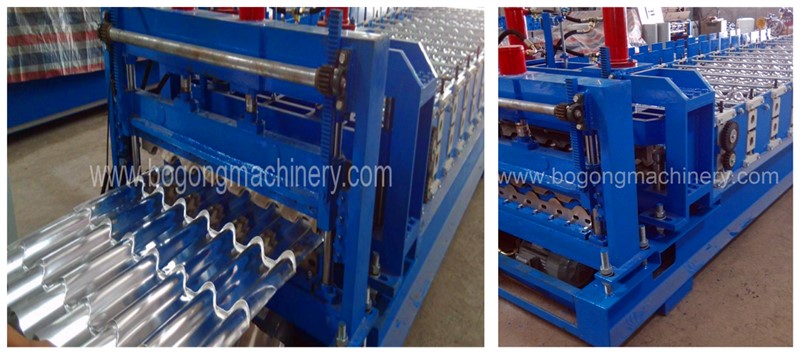

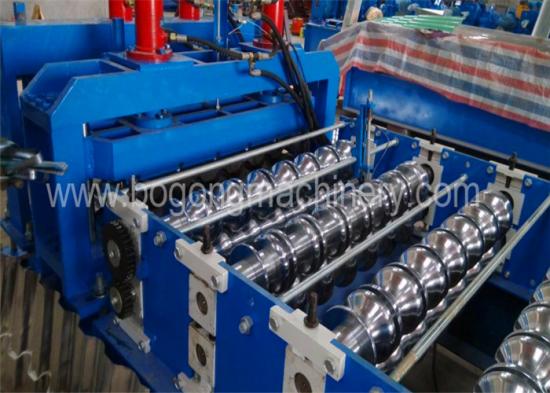

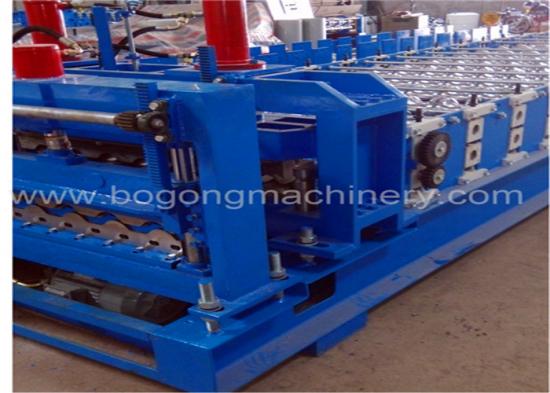

    This Metal Steel Wave Roof Tile Roll Forming Machine 1200mm Feeding Width is with 16 station roll forming, and the covered width after roll forming is 921mm, raw material width is 1200mm aluminum sheet.  All the roll forming rollers are made  from 45# steel, coated by hard Chromed for enlarge the rollers hardness and can anti rust also. See the encoder supporting rack, it is for installing encoder to measure roof sheet length and running speed. This encoder should touch on roof sheet surface well when it works.

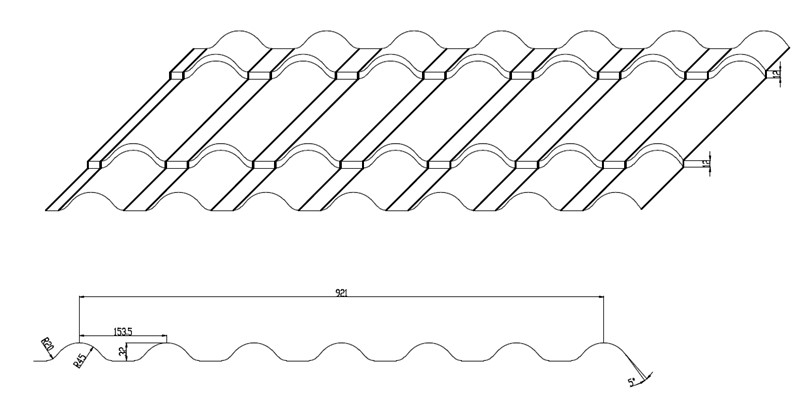

    See the roof tile design drawing for this Metal Steel Wave Roof Tile Roll Forming Machine,  the raw material will be aluminum sheet in 1200mm width, the suitable material thickness is 0.3-0.7mm, six waves and the max tile depth is 14mm.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

    16 steps

    Working Speed

    3-4m/min

    Thickness for Steel

    0.3-0.7mm (Material:aluminum)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Simenz

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    Aluminum sheet

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    180000*1550*1650mm

    Weight

    9500KGS
