    • Pre-Painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine

    • Pre-painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine is one type of roof sheet roll forming machines, but with step tiles on making steel house roof will be more hierarchical by eyes. It is traditional and classical for steel house roof choice.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 03-0.6mm
      Material Width: 1000mm
      Covered Width: 790mm
      Forming Station: 16
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Kinds of aluminum-zinc coated steel/galvanized steel/pre-painted steel tile roof roll forming machines, roof sheet roll forming machines, shutter door roll forming machines are acceptable.


    Product Name: Pre-painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine

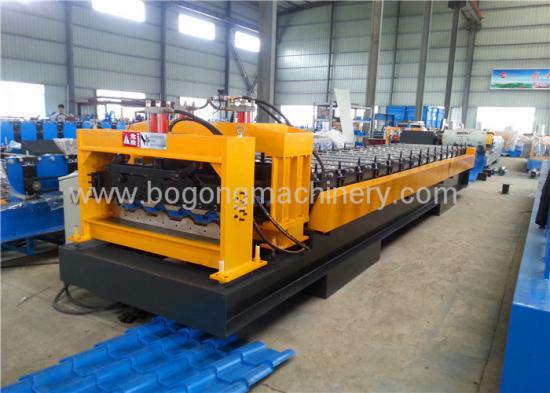

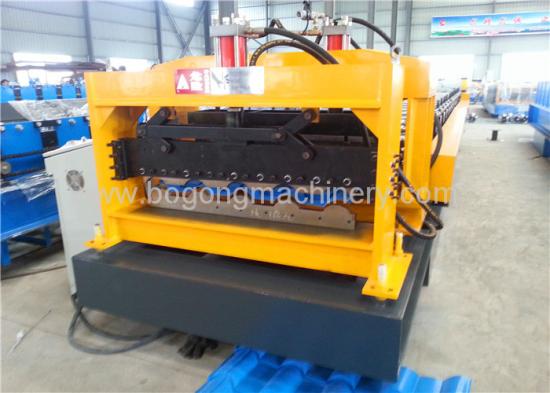

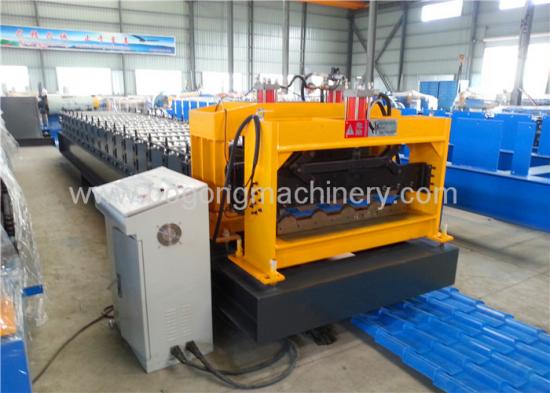

    This step tile roof roll forming machine is designed for producing both aluminum-zinc coated steel and pre-painted steel sheet coil, roll forming the steel metal sheet into roof sheet at first, before cutting off section, the step tile mold will forming tile steps, then cut off into correct length as we required. All the roll forming actions, step tile actions and cutting off sections are controlled by Simenz  PLC control system.

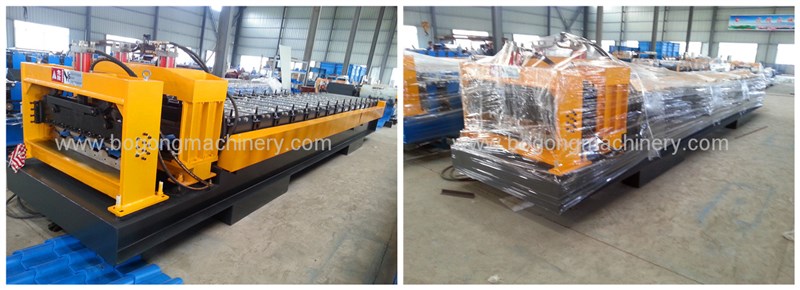

    The second picture is packed by plastic film before loaded into shipping container, it can keep whole Pre-painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine clean and new.



    Sample Pictures

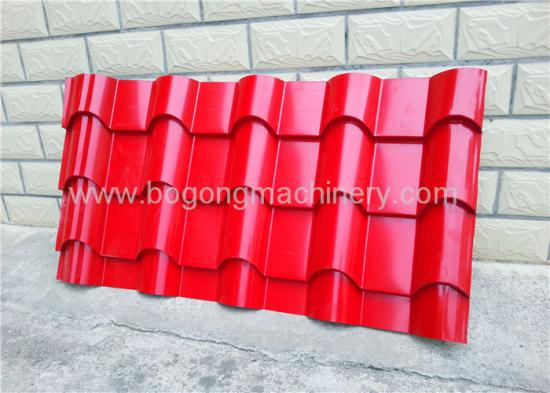

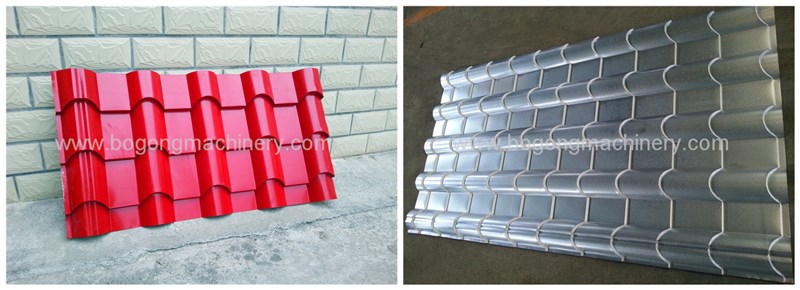

    This Pre-painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine design is with four pinches, 790mm covered width and the raw material width is 1000mm. Whole roof tile surface is smooth and the two connect edges are flat also.

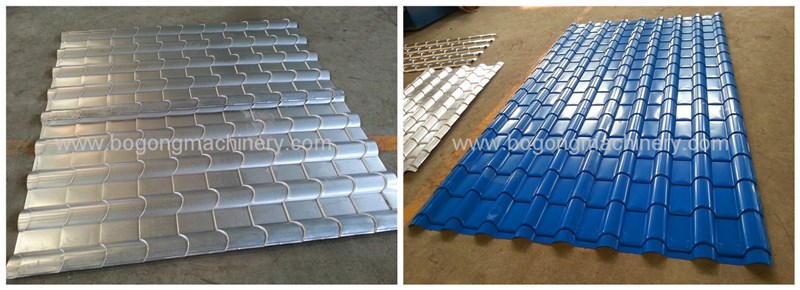

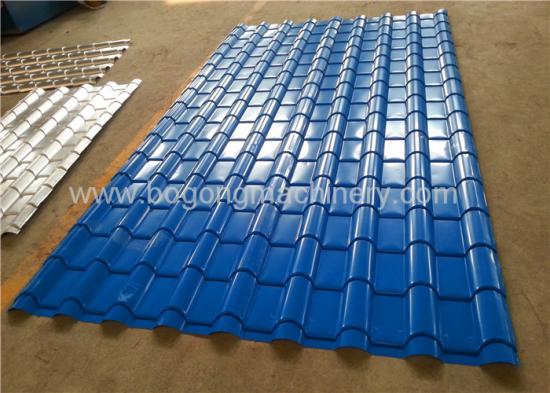

    Let's see the overlap effect with several pieces of pre-painted steel sheet step tile roof, after connecting each pieces tile roof sample together, the connecting position is flat and good for anti water-leakage, that 's what effect the final user needs. So our Pre-painted Steel / Galvanized Steel Step Tile Roof Roll Forming Machine is perfect for good quality steel house project.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

    16 steps

    Working Speed

    3-5m/min

    Thickness for Steel

    0.3-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9600*1450*1650mm

    Weight

    7500KGS


    Contact to us if you need more information about our roll forming machines.
