    • Flying Cut Corrugated Roof Tile Roll Forming Machine Bogong

    • Flying cut roof tile machine accelerated the production speed, and meet the requirements of increasing the productivity.
    • Lead Time:70 Days
      Shipping Port:Xiamen Port
      Material Thickness: 0.4-0.7mm
      Material Width: 1219mm
      Forming Station: 18 Steps
      Driving Motor: 7.5kw
      Shaft Diameter: 75mm
      Roller Material: 45# Steel
      Cutting Blade Material: Cr12
    • Contact Us
    Detailed description

    Flying Cut Non Stop Corrugated Roof Tile Roll Forming Machine Bogong



    Why flying cut corrugated roof tile machine:


    Flying cut roof tile machine accelerated the production speed, and meet the requirements of increasing the productivity.

    The whole line speed of flying cut type roof tile roll forming machine reach at 5-7m/min. compares to the stop pressing stop cutting type which the whole line speed is 2-3m/min.

    We have rich experience on the manufacturing of varies kinds of roof tile roll forming machine.

    The rollers holding structure can be customizable, below is the Square steel type torii pillar with bearing seat to hold rollers.

    And if you want a more encomonical type, we have the Q235 steel 18mm thickness side wall with bearing seat to hold rollers.




    Job material


    Feeding width: 1219mm
    Material thickness:0.4-0.7mm
    Applicable material:Prepainted Galvanized Steel(PPGI)
    yield strength 235-345Mpa or customized.



    Main Roll Forming Machine


    With feeding material guide, body frame made from H400 type steel by welding
    Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
    Shafts Diameter=ф75mm,precision machined
    Gear/Sprocket driving,about 18-step to form
    Main Motor=7.5KW,Frequency speed control
    Real forming speed:5-7m/min( Include tile pressing and cutting time)

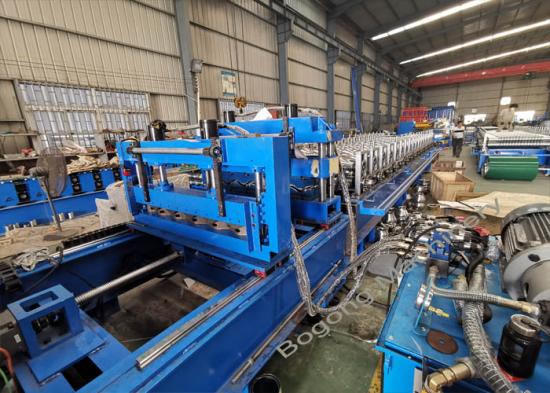

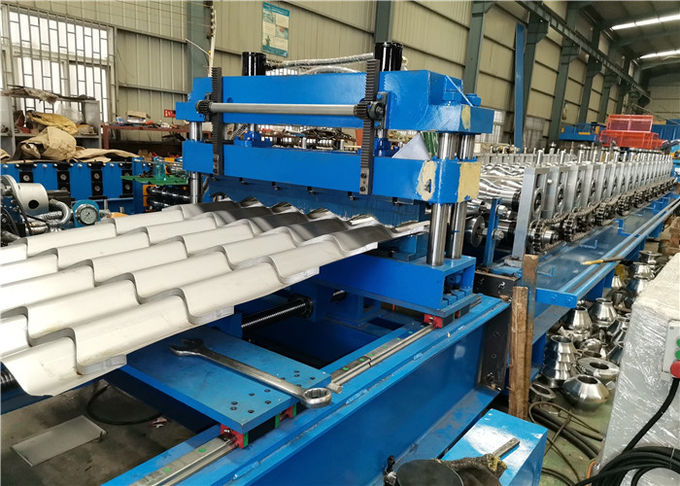

    Hydraulic Stair-Pressing and Cutting device

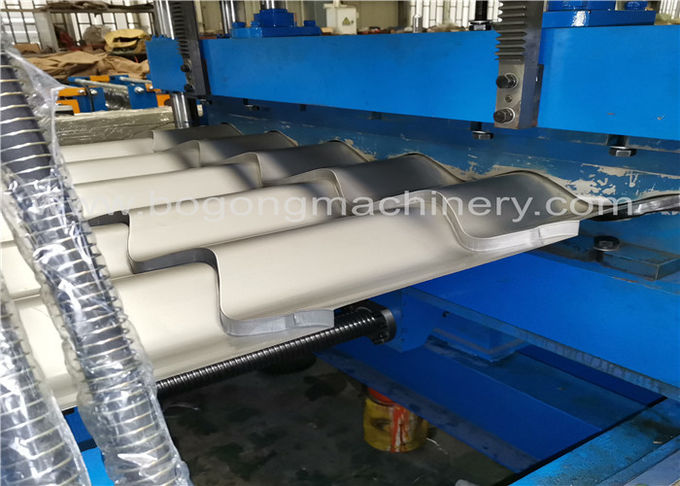

    2-step Pressing Method:clamp sheet first, and then press, which No fold and broken happen after pressing, make the finished tile appearance looks beautiful,Stair depth=13mm
    Non-stop to press, flying cutting, two pieces cutting blades, no blanking cutting, no waste material
    Hydraulic motor:5.5KW ;
    Cutting tool material: Cr12, treatment to HRC58-60 degree
    The cutting power is provided by the main engine hydraulic station



    Packing:


    loading into container and fixing steadily by wire rope, suitable for long-distance transportation.



    Details decide the quality, we have lots of cost-effective options, such as with steel springs to proect the hydraulic hose, with alarm light on the cutting unit, with height adjustable base frame... etc.

    Looking forward to hearing from you.
