    Home Roofing Sheet Roll Forming Machine Double Level Metal Wall Panel Roll Forming Machine YX5-70.5-1128 YX12-218-1090
    • Double Level Metal Wall Panel Roll Forming Machine YX5-70.5-1128 YX12-218-1090

    • If customization:Yes Series:Dual level roll forming machine Type:YX5/YX12 wall profiles
    • Material Thickness: 0.3-0.6mm
      Material Width: 1200mm
      Forming Station: 15/16
      Driving Motor: 5.5KW
      Shaft Diameter: 75mm
      Roller Material: 45#, Hard Chromed
      Cutting Blade Material: Cr12, Heat Treatment
      Cutting Type: Post Cutting
    • Contact Us
    Detailed description

    Double Level Wall Panel Roll Forming Machine YX5-70.5-1128 YX12-218-1090


    If customization:Yes
    Series:Dual level roll forming machine

    Type:YX5/YX12 wall profiles
    Brand:Bogong

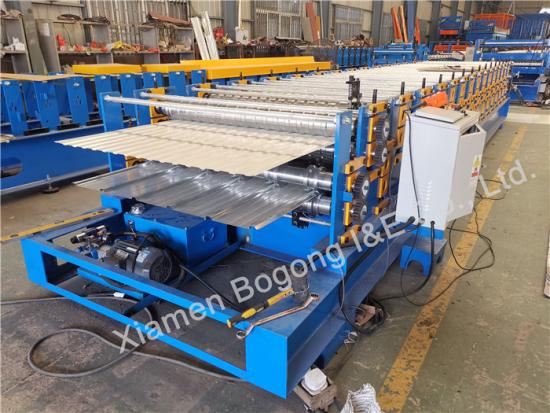

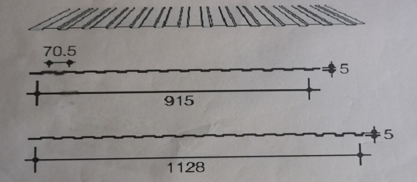

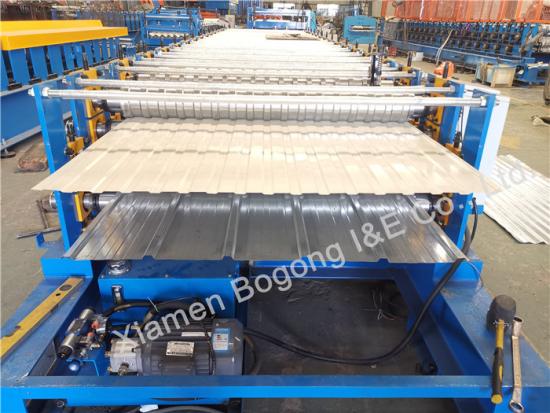

    Profile drawing:



    Upper level:




    Bottom level:






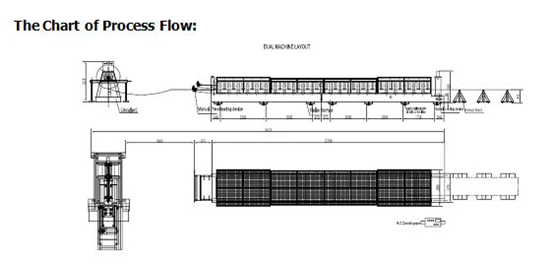

    Technical Parameters


    The main technical parameters are for your inference only.
    Only if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.

    Attention:
    The two levels can't be run at the same time
    Manual Clutch to switch the driven system
    The two profiles share one un-coiler/ base frame/ main motor for roll former/ hydraulic cutting carriage/PLC control system.


    (1) 5Tons un-coiler
    Description Manual or Hydraulic, With or without coil car
    (2) Manual Pre-shearing device
    Function un-powered
    Dual Leveling
    Smart cut control, to cut off the end of the final piece of sheet only
    Shearing Thickness Up to Max. 0.8mm (if thickness > 0.8mm, then hydraulic pre-shearing device or electric pre-shearing device instead )
    (3) The general machine parameter
    Suitable roll forming material Color steel sheet or galvanized steel sheet
    Thickness 0.4mm-0.6mm
    Feeding width 1200mm
    Frame design Q235 Wall plate design / Torri pillar design
    Upper Roll stages 15 stages
    Lower Roll stages 16 stages
    Material of forming roller 45# steel with forge treatment, CNC lathes, Hard Chrome Coated
    Shafts Diameter Φ75mm
    Main motor power 5.5KW with reducer
    Max. Line speed of roll former about 15m/min (Higher speed is available, depends on the specification required by the buyer)
    Hydraulic group power 3KW
    Material of cutting blade Cr12, heat treatment
    Electric Standard 380V /50Hz/3PH or as the customer's requirements
    Major Color of Machine Painted RAL 5015 (Blue) or as per customer's requirements
    (4) PLC Control system
    PLC Delta brand or customizable
    Touch Screen  Weinview brand or customizable
    Inverter Delta brand or customizable
    Encoder Omron brand
    (5) Product rack
    Description un-powered, 3 units
    Option:
    1. Dual pneumatic stacker
    2. CE certificate
