    Roofing Sheet Roll Forming Machine

    Home Roofing Sheet Roll Forming Machine CE Standard Steel Metal Inner Roof Roll Forming Machine
    • CE Standard Steel Metal Inner Roof Roll Forming Machine

    • This inner roof sheet roll forming machine is stand pillars baffle type, this type of design is more popular in the market at recently years, it has combines good outlook and high performance with this design.
    • Item No.:YX27-59-828
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.7mm
      Material Width: 1220mm
      Covered Width: 828mm
      Forming Station: 26
      Driving Motor: 11KW
      Shaft Diameter: 75/95mm
      Roller Material: 45# Steel, Coated By Chrome
      Cutting Blade Material: Cr12
    • Contact Us
    Detailed description

    Customize design&manufacture roll forming machines for roof sheet, door frame, roller shutter door, floor deck, warehouse, metal purlins and guardrails.


    Product Name: CE Standard Steel Metal Inner Roof Roll Forming Machine


    At the beginning end of this CE Standard Steel Metal Inner Roof Roll Forming Machine, we have made entry bench before pre-cutter. After the raw material come from uncoiler, the material passed by entry bench to avoid material block, it is the good middle passer between uncoiler and roll forming machine section, it also can match both automatic uncoiler and roll forming machine section's feeding speed well.

    This inner roof sheet roll forming machine is stand pillars baffle type, this type of design is more popular in the market at recently years, it has combines good outlook and high performance with this design.

    inner roof roll forming machine

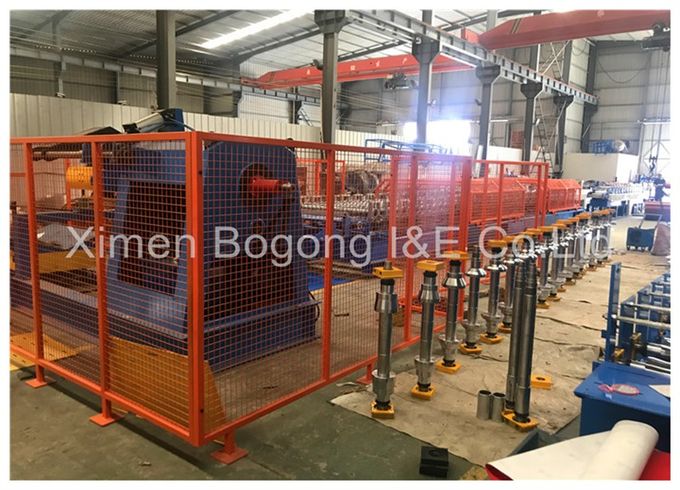

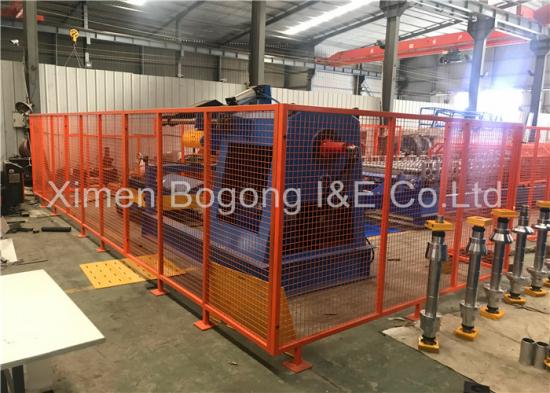

    Required as Europe market, all the driving motor, eletric parts and hydraulic parts for this CE Standard Steel Metal Inner Roof Roll Forming Machine should be with CE certificate, and all the working area should be inside safety guard.



    Technical Parameters


    Parameters Specification
    Voltage 380V/50HZ/3PH/or customized
    Driving Motor 11KW
    Forming Steps 26 steps
    Working Speed 15-20m/min
    Thickness for Steel 0.4-0.7mm (Material:PPGI,GI Steel G550)
    Shaft Diameter 75/95mm
    Shaft Material High grade 45# forged steel
    Roller Material G45# steel, CNC lathe,polished and chrome plated
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Post cutting, no waste cutting
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+Orange Or Customization
    Overall Size 13800*1450*1650mm
    Weight 11000KGS

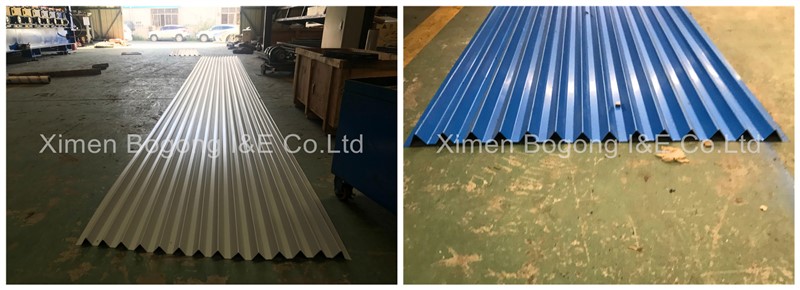

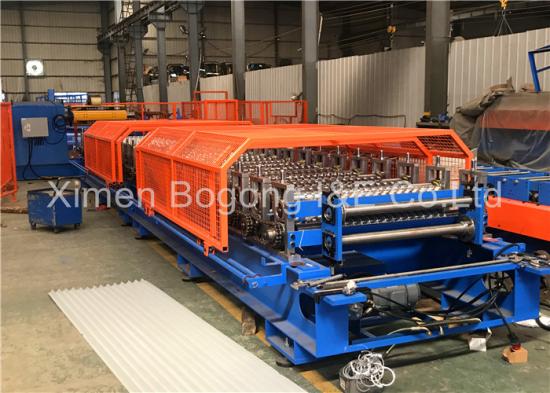

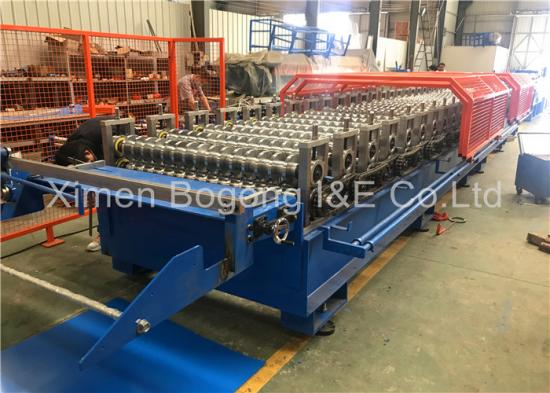

    Metal Roofing Sample And Machine appearance

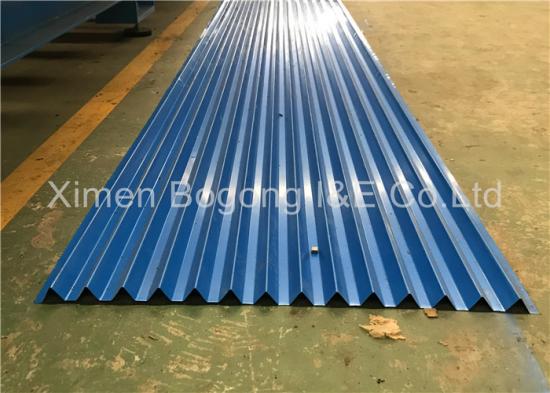

    The most difficult thing for this inner roof is too keep the roof sureface on same horizontal level and each wave distance are the same, see our sample as below
