  • Roofing Sheet Roll Forming Machine

    Home Roofing Sheet Roll Forming Machine Customized Sheet Metal Roll Forming Machines Stand Pillar Frame Type
    • Customized Sheet Metal Roll Forming Machines Stand Pillar Frame Type

    • This is the stand pillar frame type of Customized Sheet Metal Roll Forming Machines, it can roll forming steel sheet as roof used or wall used of PEB project.
    • Item No.:YX29-200-1000
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.25-0.45mm
      Material Width: 1220mm
      Covered Width: 1000mm
      Forming Station: 18 Steps
      Driving Motor: 11KW
      Shaft Diameter: 75mm
      Roller Material: 45 # Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
    • Contact Us
    Detailed description

    Customized steel roof/door/gutter/purlin/greenhouse profiles roll forming machines are acceptable.


    Product Name: Customized Sheet Metal Roll Forming Machines Stand Pillar Frame type

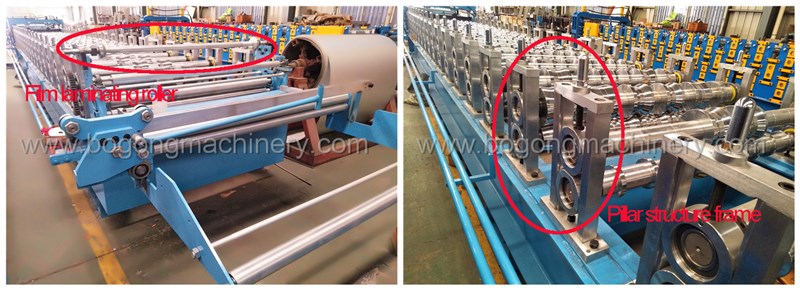

    This YX29-200-1000 roll forming machine for roof sheet has film laminated function, see the marked out roller above, this part is for installing film laminated device for steel roof sheet.

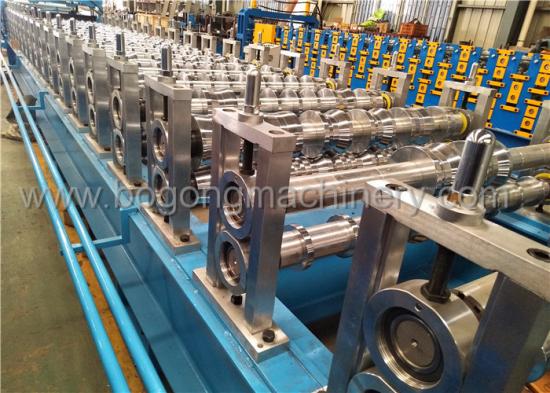

    We are the factory who is good at Customized manufacture Sheet Metal Roll Forming Machines, below trapezoidal metal sheet roof roll forming machine adopts stand pillar machine frame type,  compare to traditional machine frame,  it is good  for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.

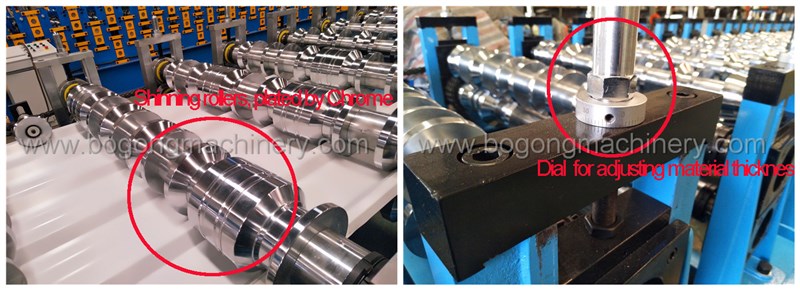

    All the roll forming rollers are machined by CNC lathe, then fine polished, so full set metal sheet roof roll forming machine rollers are shinning and looks at mirror.On each station,we have installed dials for reading, when we change to produce another different thickness of raw material, we can adjust these dials into corresponding reading, it is convenient and easy working after installing these dials on each stations' two sides.

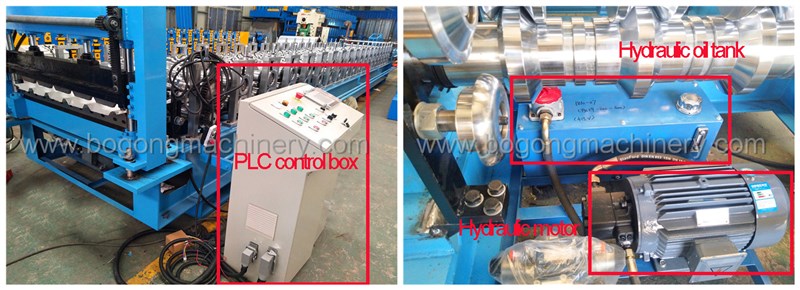

    Normally, one set metal sheet roof roll forming machine will have on PLC control box, there is touch screen, inverter inside,all the working actions are controlled here, such as cutting off, speed adjusting,stop and start the producing line. The hydraulic motor is for controlling cutting off action,there is oil tank inside machine frame also, it can save space in factory site.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     18 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.25-0.4mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9400*1450*1650mm

    Weight

    6500KGS

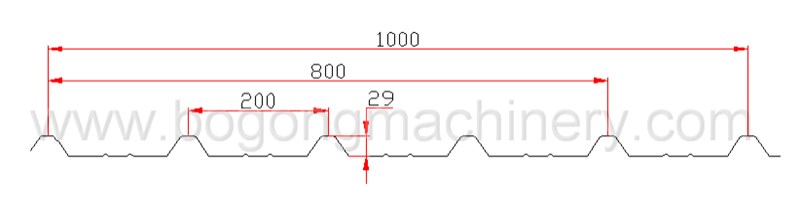

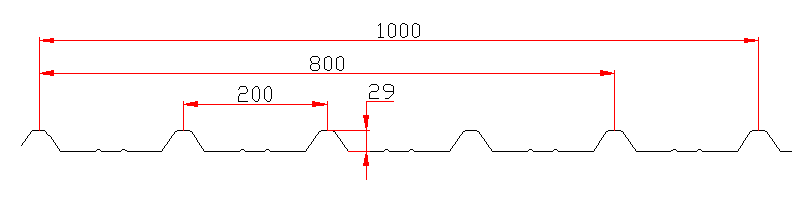

    Profile Design Drawing

    Raw material thickness: 0.25-0.4mm, raw material width: 1220mm, suitable for pre-painted steel coil, galvanized steel coil.



    Need customized any type of roll forming machines, contact us immediately.
