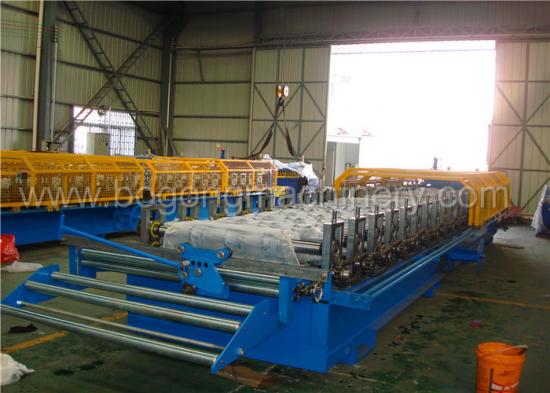

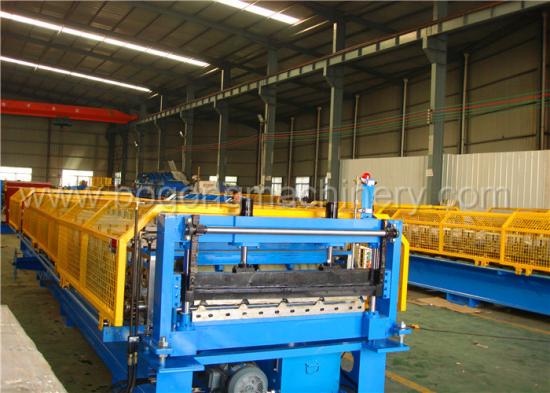

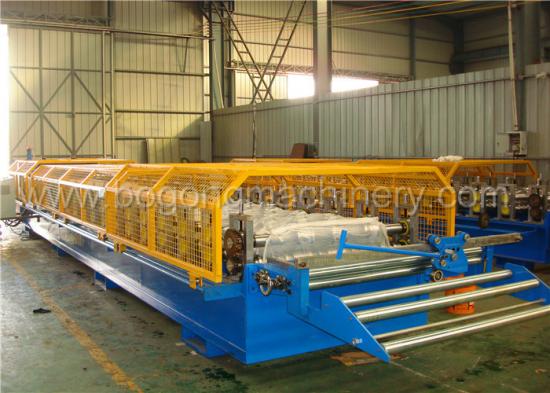

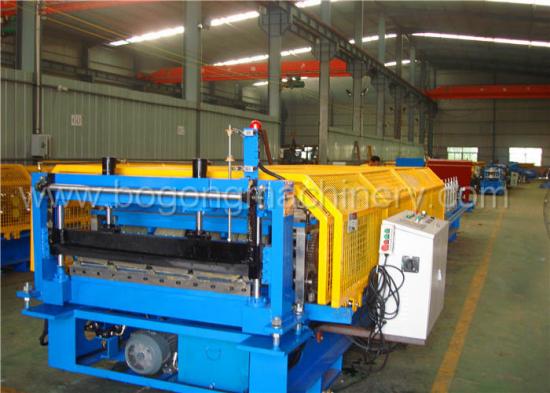

    Home Roofing Sheet Roll Forming Machine Trapezoidal Galvanized Steel Roofing Sheet Roll Forming Machine
    • Trapezoidal Galvanized Steel Roofing Sheet Roll Forming Machine

    • One set steel roofing sheet roll forming machine normally can roll forming galvanized steel coil, ppgi steel coil, for 914mm, 1000mm and 1220mm different material width.
    • Item No.:YX21-204-1020
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.7mm
      Material Width: 1220mm
      Covered Width: 1020mm
      Forming Station: 18
      Driving Motor: 7.5
      Shaft Diameter: 75mm
      Roller Material: 45# Steel, Coated By Chrome
      Cutting Blade Material: Cr12
    • Contact Us
    Detailed description

    Professional customized design/manufacture kinds of roll forming machines


    Product Name: Trapezoidal Galvanized Steel Roofing Sheet Roll Forming Machine

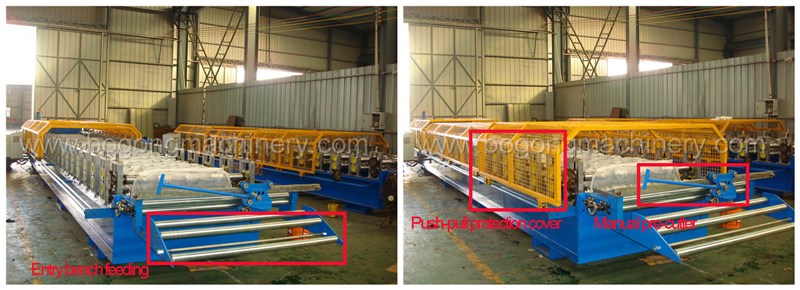

    At the beginning end of this trapezoidal galvanized steel roofing sheet roll forming machine, we have made entry bench before pre-cutter. After the raw material come from uncoiler, the material passed by entry bench to avoid material block, it is the good middle passer between uncoiler and roll forming machine section, it also can match both automatic uncoiler and roll forming machine section's feeding speed well.

    After entry bench, there is one set manual pre-shear, used for cutting no used material head and tail, the operator pull the pre-shear's hand rod, then finish.

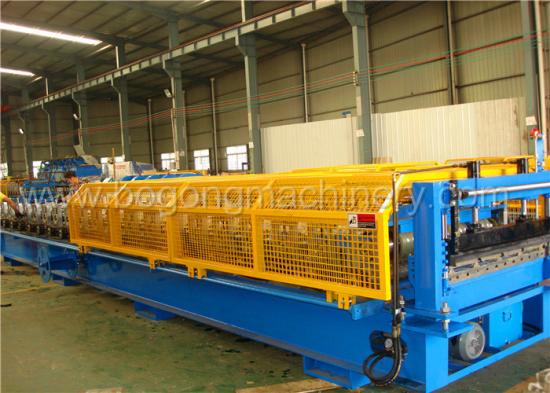

    In order to keep worker's safety, the pull-push protection cover is there. It is grid type, operator can see the trapezoidal galvanized steel roofing sheet roll forming machine's working state by eyes at the same moment. Each piece of cover is movable, can be pushed to each position if any maintenance is needed.

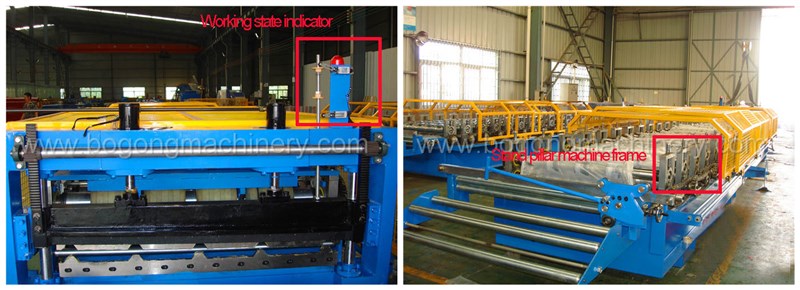

    Working state indicator is another new safety design of ours, after we switch on the power supply, this indicator will be light. It can remind staffs work more carefully after seeing the indicator is light, also good for reminding staffs switch off the power supply after been off duty every day.

    This metal roof sheet roll forming machine adopts stand pillar machine frame type,  compare to traditional machine frame,  it is good  for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.


    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     17 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.3-0.72mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9400*1450*1650mm

    Weight

    4500KGS

    The raw
