    • 914mm Feeding Width Roofing Corrugated Sheet Roll Forming Machine

    • This roofing sheet corrugated sheet roll forming machine is for roll forming 914mm feeding width pre-painted sheet coil, the material thickness can be 0.3-0.8mm, with manual pre-cutter, safety cover and shinning not rust screw nuts to lock.
    • Item No.:YX23-118-708
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.8mm
      Material Width: 914mm
      Covered Width: 708mm
      Forming Station: 20 Steps
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
      Roller Material: 45 # Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
    • Contact Us
    Detailed description

    Customized roof sheet/metal doors/purlins/ steel hat profiles roll forming machines are acceptable.

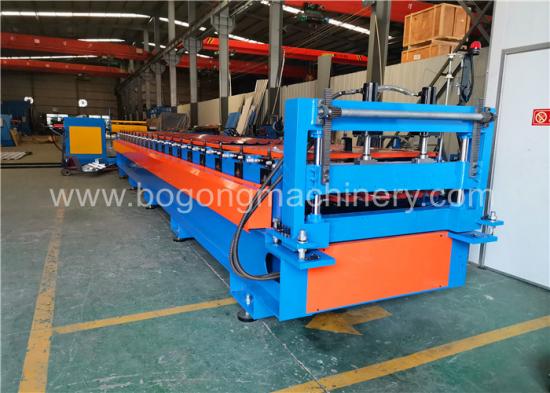

    Product Name: 914mm Feeding Width Roofing Corrugated Sheet Roll Forming Machine

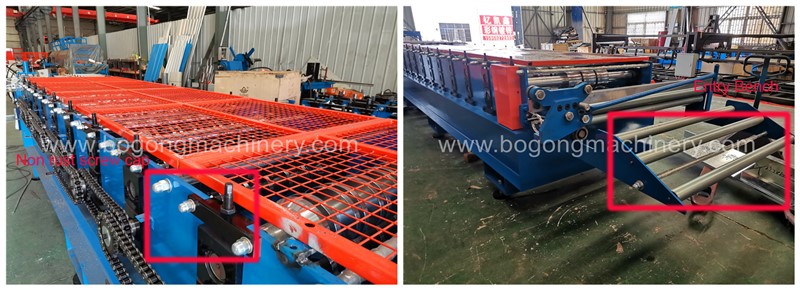

    Whole roofing corrugated sheet roll forming machine is matched with entry bench and manual pre-cutter. The entry bench is good for feeding steel coil into roll forming machines and pre-cutter is for cutting off the no used material head.

    The pull-rod screws nuts are all made from non-rust material, so whole corrugated sheet roll forming machine look more beautiful and machine performance is more stronger.

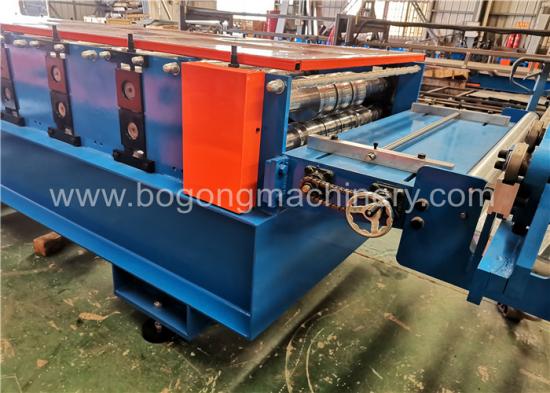

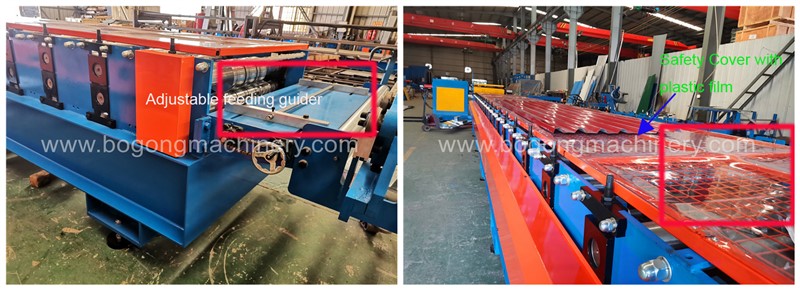

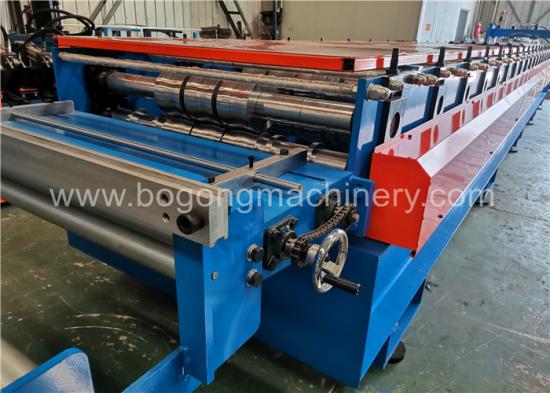

    Between manual pre-cutter and roll forming section, there are adjustable feeding guider, when the material width is a little different, we can adjust the feeding strip left or right a little to suit for the actual material width.

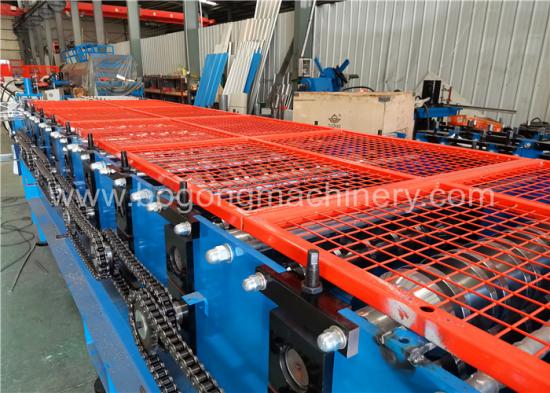

    Upon the roll forming section, there is grid type safety cover with plastic film for keep operator safe, also can keep roll forming rollers more cleaner.

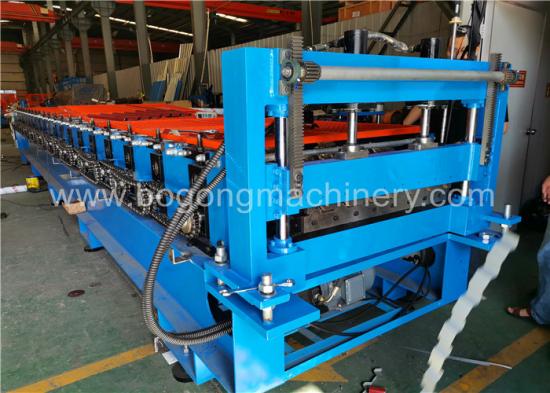

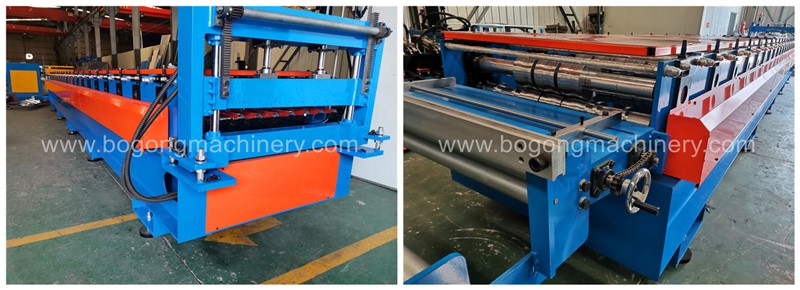

    The whole roofing corrugated sheet roll forming machine is for producing 914mm raw material width, the feeding end and cutting end is as below.


    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     18steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.3-0.8mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    10000*1450*1650mm

    Weight

    7500KGS

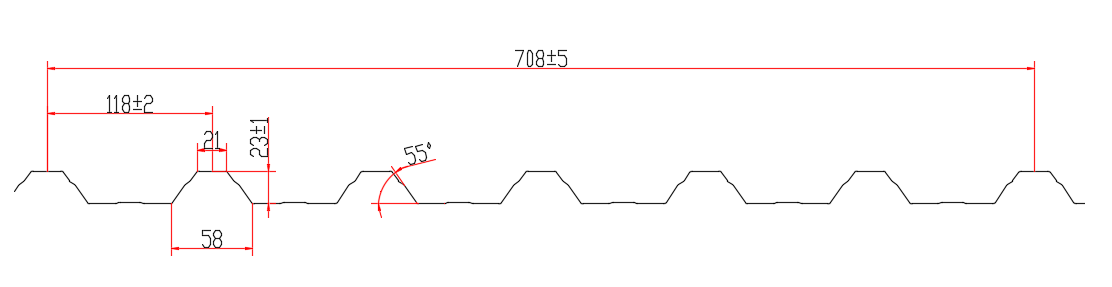

    Profile Design Drawing

    Raw material thickness: 0.3-0.8mm, raw material width: 1220mm, suitable for pre-painted steel coil, galvanized steel coil.


    Need customized any type of roll forming machines, contact us immediately.
