  • Roofing Sheet Roll Forming Machine

    Home Roofing Sheet Roll Forming Machine Custom Design Steel Metal Roof Roll Forming Machines Construction Used
    • Custom Design Steel Metal Roof Roll Forming Machines Construction Used

    • There are so many steel roof designs, different country has different popular style, Bogong Machinery can custom design steel metal roll roof roll forming machines as buyer's need.
    • Item No.:YX32-190-950
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 1220mm
      Covered Width: 950 Mm
      Forming Station: 20 Steps
      Driving Motor: 11KW
      Shaft Diameter: 75mm
      Roller Material: 45 # Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
    • Contact Us
    Detailed description

    Steel roof/door/gutter/purlin/greenhouse profiles roll forming machines are acceptable customized manufacture.


    Product Name: Custom Design Steel Metal Roof Roll Forming Machines Construction Used

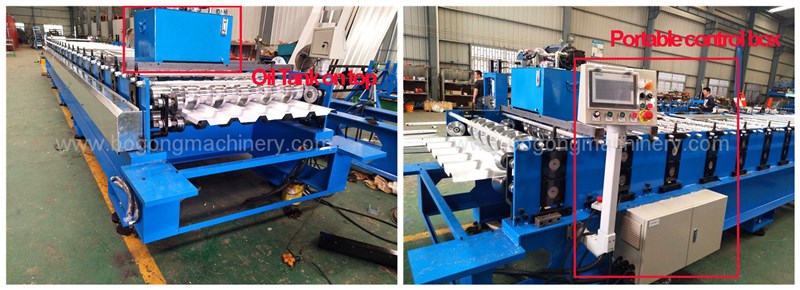

    This YX29-200-1000 roll forming machine for roof sheet has film laminated function, see the marked out roller above, this part is for installing film laminated device for steel roof sheet.

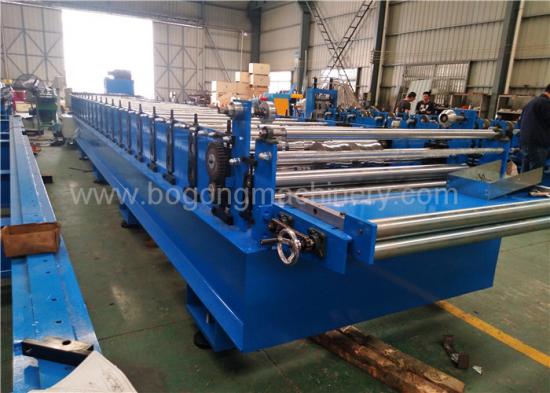

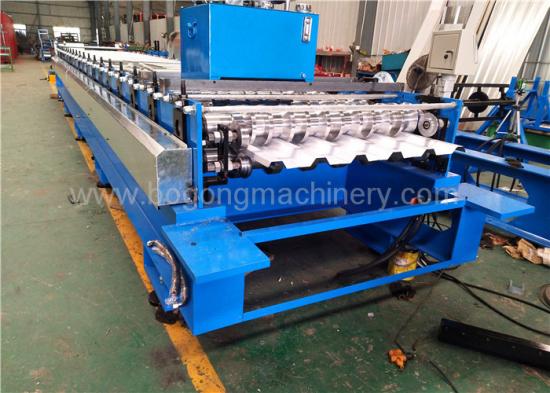

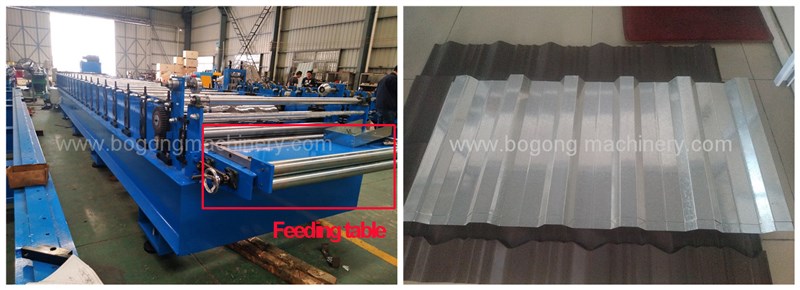

    We are the factory who is good at Customized manufacture Sheet Metal Roll Forming Machines, below trapezoidal metal sheet roof roll forming machine adopts stand pillar machine frame type,  compare to traditional machine frame,  it is good  for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.

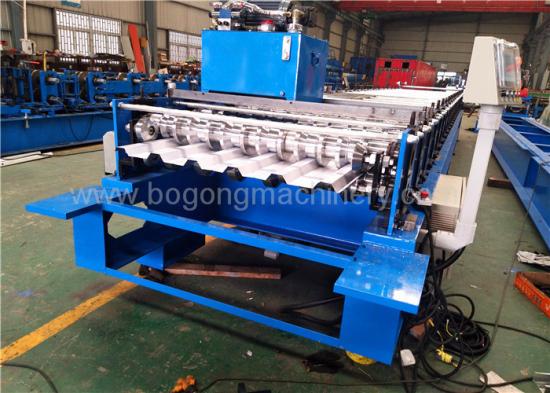

    All the roll forming rollers are machined by CNC lathe, then fine polished, so full set metal sheet roof roll forming machine rollers are shinning and looks at mirror.On each station,we have installed dials for reading, when we change to produce another different thickness of raw material, we can adjust these dials into corresponding reading, it is convenient and easy working after installing these dials on each stations' two sides.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    11KW

    Forming Steps

     20 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.4-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

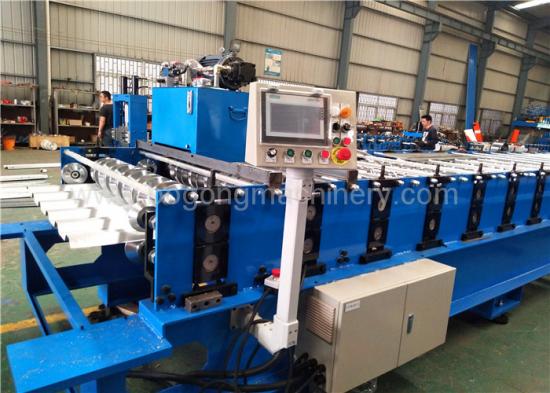

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9400*1450*1650mm

    Weight

    6500KGS

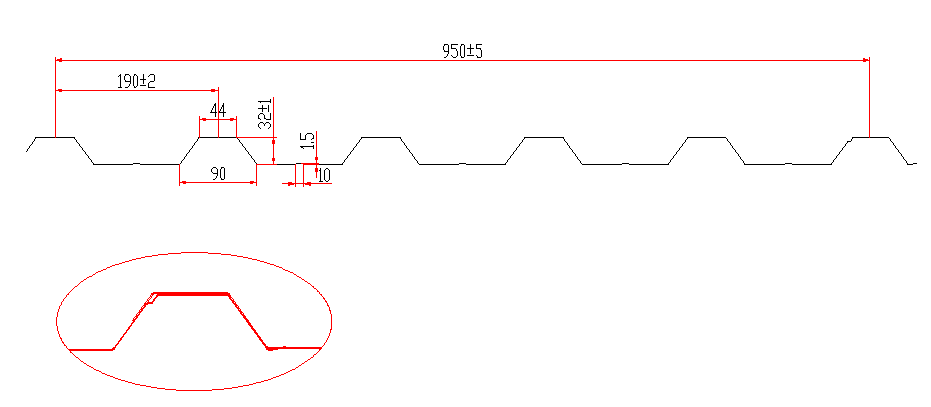

    Profile Design Drawing

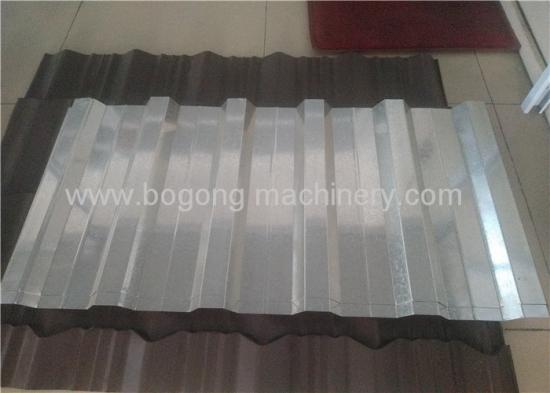

    Raw material thickness: 0.4-0.6mm, raw material width: 1220mm, suitable for pre-painted steel coil, galvanized steel coil.


    Need customized any type of roll forming machines, contact us immediately.
