    Roofing Sheet Roll Forming Machine

    Home Roofing Sheet Roll Forming Machine High Speed Roofing Corrugated Sheet Roll Forming Machine
    • High Speed Roofing Corrugated Sheet Roll Forming Machine

    • This is the stand pillar frame type of High Speed Roofing Corrugated Sheet Roll Forming machine, it can roll forming steel sheet as roof used or wall used of PEB project. Whole roll forming line can be matched with pneumatic stacker also.
    • Item No.:YX29-200-1000
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.5mm
      Material Width: 1220mm
      Covered Width: 1000mm
      Forming Station: 18 Steps
      Driving Motor: 11KW
      Shaft Diameter: 75mm
      Roller Material: 45 # Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
    • Contact Us
    Detailed description

    Custom manufacture roof, gutter, purlin, metal door frame, floor deck  and greenhouse profiles roll forming machines.


    Product Name: High Speed Roofing Corrugated Sheet Roll Forming machine

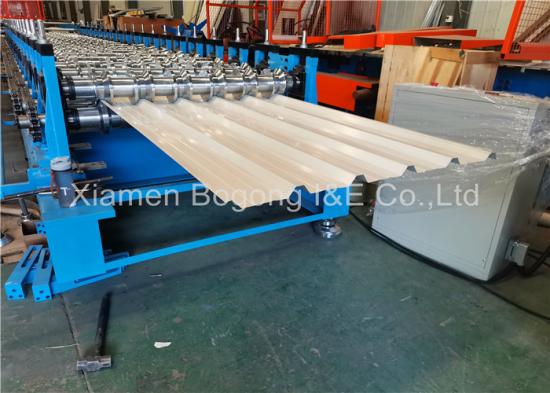

    This roll forming machine for roof sheet has film laminated function, see the roller over feeding end, this part is for installing film laminated device for steel roof sheet.

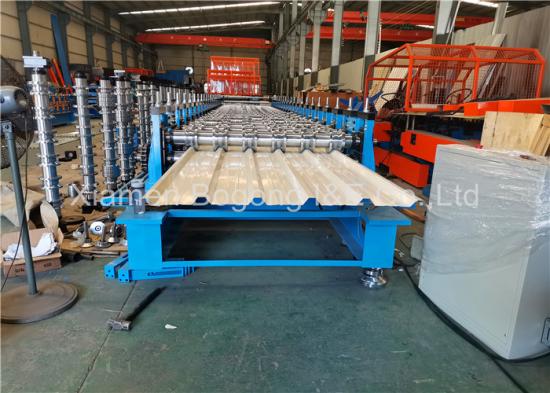

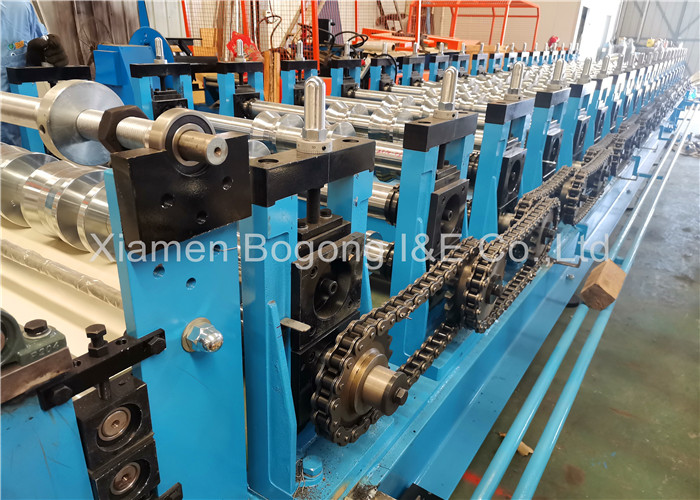

    We are the factory who is good at High Speed Roofing Corrugated Sheet Roll Forming machine, below trapezoidal metal sheet roof roll forming machine adopts stand pillar machine frame type,  compare to traditional machine frame,  it is good  for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.

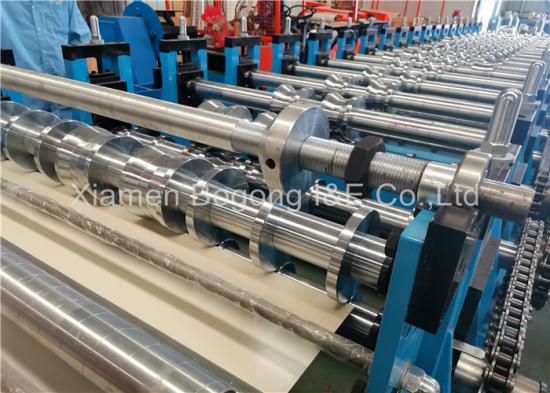

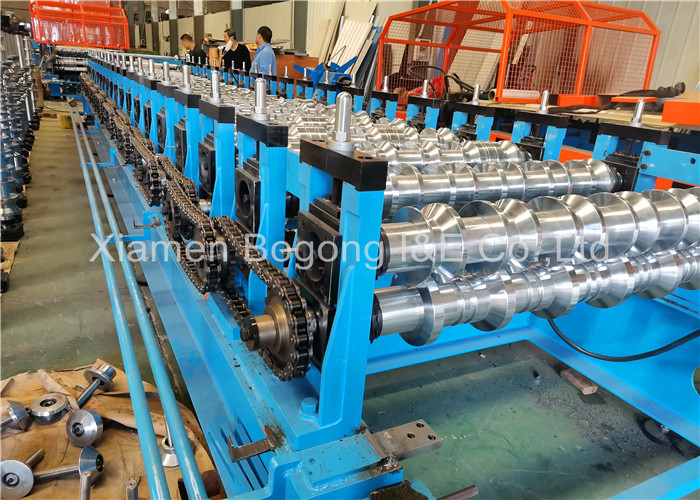

    All the roll forming rollers are machined by CNC lathe, then fine polished, so full set High Speed Roofing Corrugated Sheet Roll Forming machine rollers are shinning and looks at mirror. On each station, we have installed dials for reading, when we change to produce another different thickness of raw material, we can adjust corresponding reading dial, it is convenient and easy working after installing these dials on each stations' two sides.




    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     18 steps

    Working Speed

    25-35m/min

    Thickness for Steel

    0.3-0.5mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9400*1450*1650mm

    Weight

    6500KGS


    Tips

    This high speed roofing corrugated roll forming machine is for roll forming color steel sheet, we also can call color steel roofing roll forming machine. Color steel metal plate is mainly used for roofing, wall surface and interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, large-span steel structure houses, etc. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, Rainproof, long life and maintenance-free features have been widely promoted and applied.
