    Roofing Sheet Roll Forming Machine

    Home Roofing Sheet Roll Forming Machine YX18-75-1050 Corrugated Roof Panel Roll Forming Machine
    • YX18-75-1050 Corrugated Roof Panel Roll Forming Machine

    • YX18-75-1050 corrugated sheet roll forming machine is suitable for roll forming 914mm, 1000mm and 1250mm feeding width, total three feeding width. Good for user for different customer's need.
    • Item No.:YX18-75-1050
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.8mm
      Material Width: 1000/1250mm
      Covered Width: 1050mm
      Forming Station: 20 Steps
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
      Roller Material: 45 # Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Factory wholesale kinds of metal roll forming machines for roof, metal door, steel structure,gutter, floor deck, tile roof and so on.

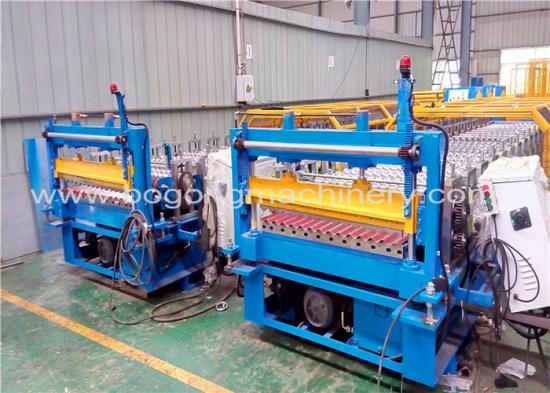

    Product Name: YX18-75-1050 Corrugated Roof Panel Roll Forming Machine

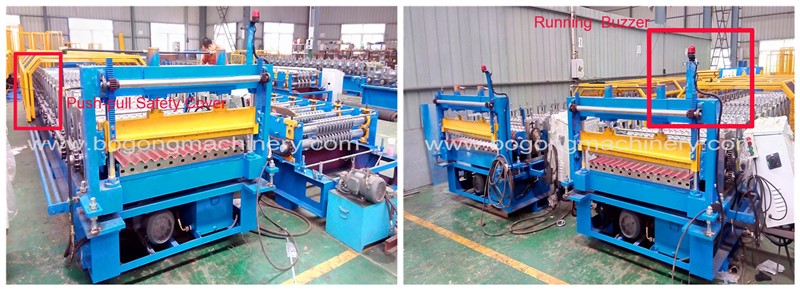

    This is the high quality type of corrugated roof panel roll forming machine manufacture method. Whole roll forming sections are covered by grid type safety cover, it can be pushed forward or backward, so when workers need to go inside for maintain roll forming machines or problems, we can push the safety cover to the other end. It is much convenient for use.


    We have installed the running indicator at the end of cutting section also. When the roll forming machine power supply has been switched on, this indicator will be light. So before the worker needs to go to machine inside to check machines, he should check the this indicator and ensure safe enough at first.

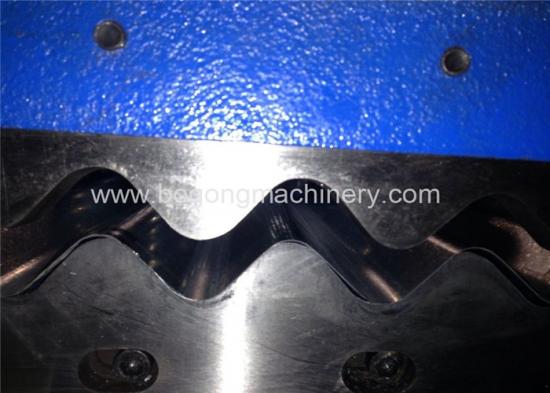

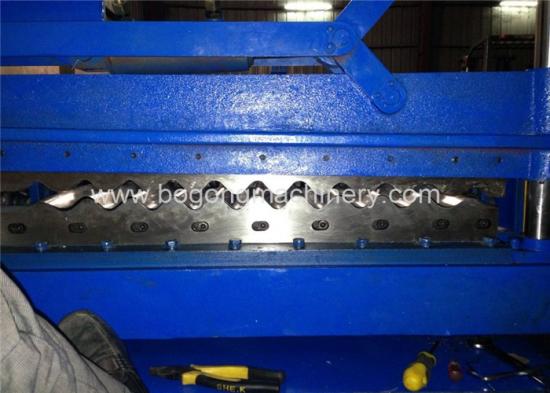

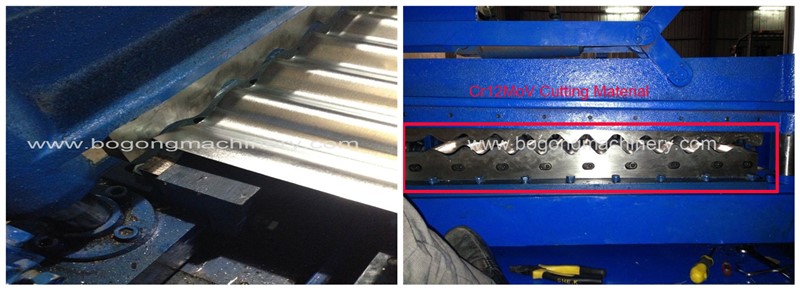

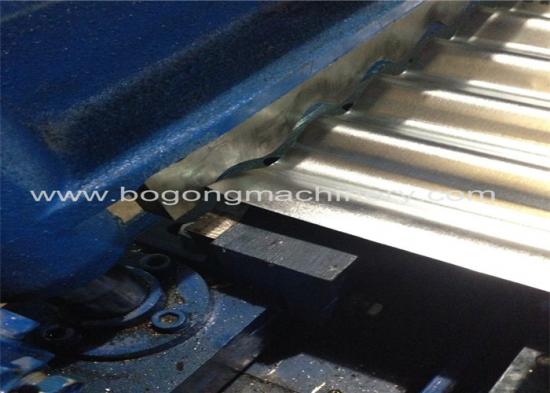

    This is the cutting section of corrugated roof panel roll forming machine, two pieces of cutting blades cutting off. The cutting blades are machined by CNC laser, it is for keeping blades each part precision, the more comfort to corrugated sheet sample, the cutting effect will be more beautiful. And the cutting blades are made from Cr12MoV, the hardness is good enough.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     18 station

    Working Speed

    15-20m/min

    Thickness for Steel

    0.3-0.8mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12MoV steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    10300*1450*1650mm

    Weight

    6500KGS

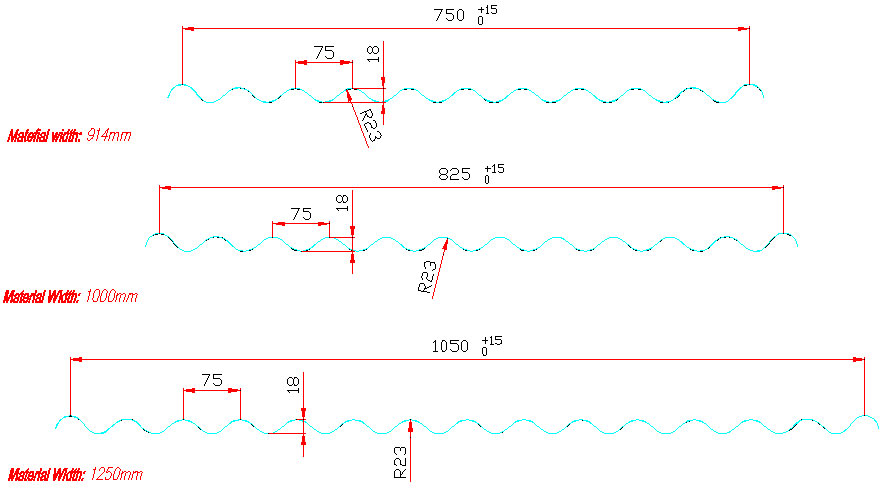

    Profile Design Drawing

    Raw material thickness: 0.3-0.8mm, raw material width: 1914/1000/1250mm, suitable for pre-painted steel coil, galvanized steel coil.


    Need customized any type of roll forming machines, contact us immediately.
