    Light Keel Roll Forming Machine

    Home Light Keel Roll Forming Machine Steel Keel Used Small C Purlin Roll Forming Machine
    • Steel Keel Used Small C Purlin Roll Forming Machine

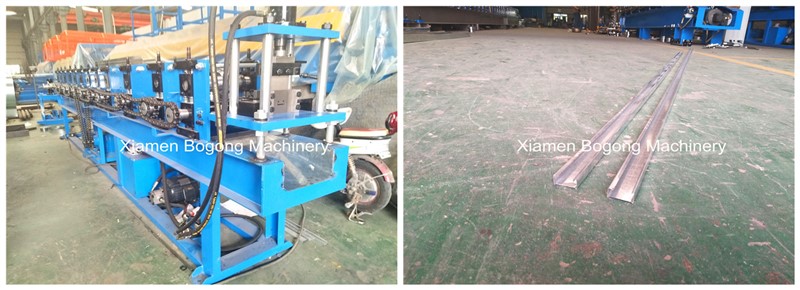

    • Steel Keel Used Small C Purlin Roll Forming Machine is for roll forming aluminum zinc coated steel material, the suitable material thickness is 0.4-0.7mm, it is C shape, used for ceiling steel keel.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.8mm
      Material Width: 156mm
      Covered Width: 40mm
      Forming Station: 11 Stations
      Driving Motor: 4Kw
      Shaft Diameter: 65mm
    • Contact Us
    Detailed description

    Kinds of steel keel, hat profile roll forming machines are accepted for custom manufacture


    Product name: Steel Keel Used Small C Purlin Roll Forming Machine


    Machine Details

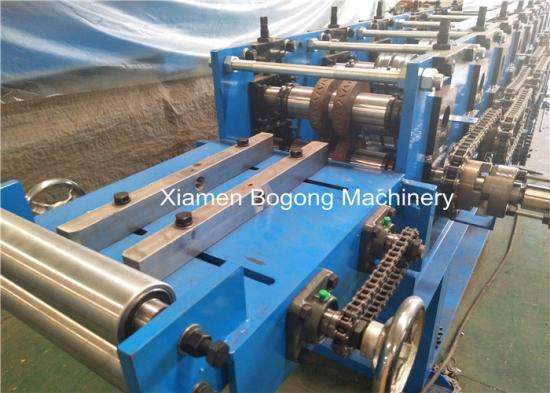

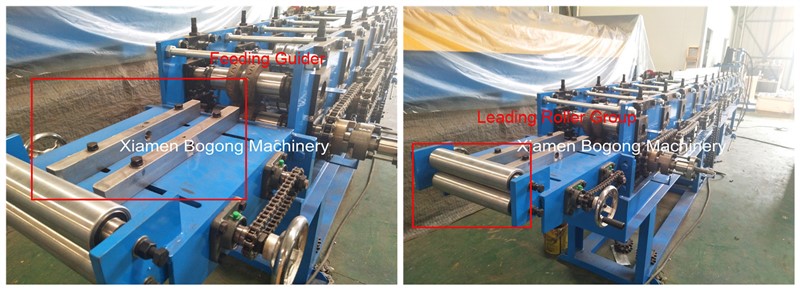

    We have designed one group leading rollers at the beginning of steel keel used small C purlin roll forming machine, it is for leading steel coil into machine more smoothly, it will roll together with steel coil. And because this small C purlin roll forming machine is type change design, it means one machine can produce several sizes of C purlin, so the feeding guider is adjustable designed, it can be moved to left or right side.

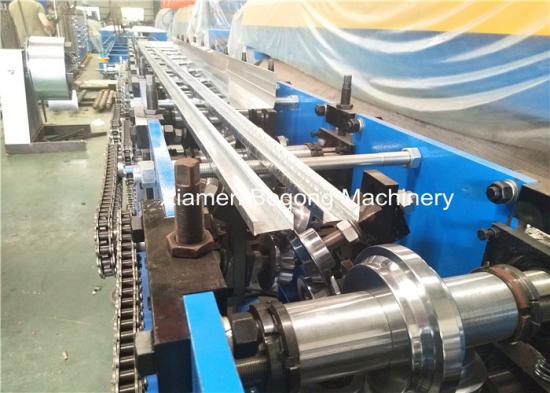

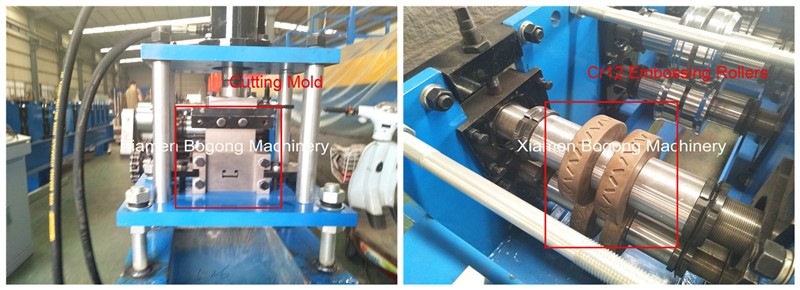

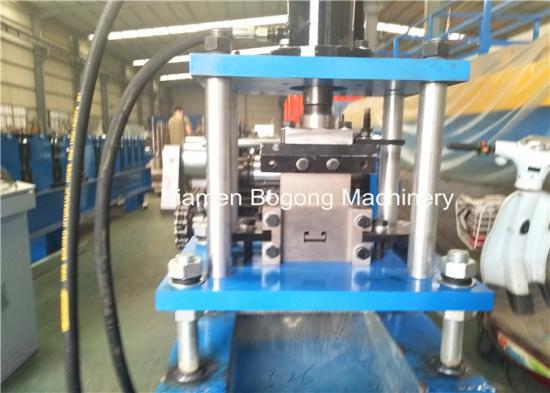

    All the cutting molds are made from Cr12 material, it ensures the cutting blades is  hard enough and strong enough. Sometimes, the small C need with strength ribs, so we made Cr12 embossing rollers to roll forming it. When we needn't  embossing on steel keel, just lift upper this roller station on steel keel used small C purlin roll forming machine, then this group roller won't work out the strength ribs on purlin bottom position.

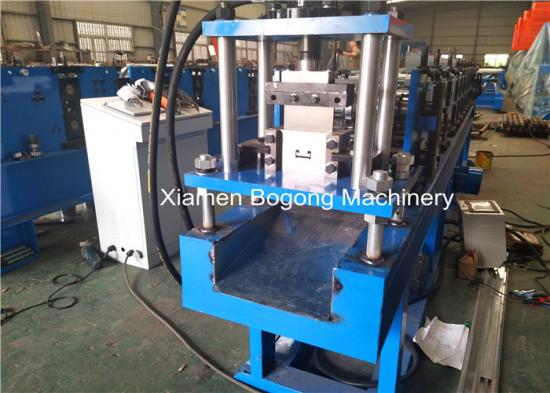

     This steel keel used small C purlin roll forming machine is with waste material cutting , so at the end of roll forming machine, the closed plate is inclination shape to make the wasting material fall down better.


    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    4KW

    Forming Steps

     11 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.3-0.8mm

    Shaft Diameter

    65mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

    Galvanized steel

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    6500*950*1050mm

    Weight

    2650KGS
