    Custom Roll Forming Machine

    Home Custom Roll Forming Machine High Speed Greenhouse Gutter Structure Roll Forming Machine
    • High Speed Greenhouse Gutter Structure Roll Forming Machine

    • One greenhouse steel structure normally needs Greenhouse Gutter Structure Roll Forming Machine, greenhouse omega profile roll forming machine, greenhouse clip profile roll forming machine, greenhouse film steel fastener machine and also Wiggle wire film steel lock profile machine and GI profile machine.
    • Contact Us
    Detailed description

    Custom manufacture greenhouse gutter /  greenhouse omega profile /greenhouse clip profile/greenhouse film steel fastener/ Wiggle wire film steel lock profile roll forming machine

    Product name: High Speed Greenhouse Gutter Structure Roll Forming Machine

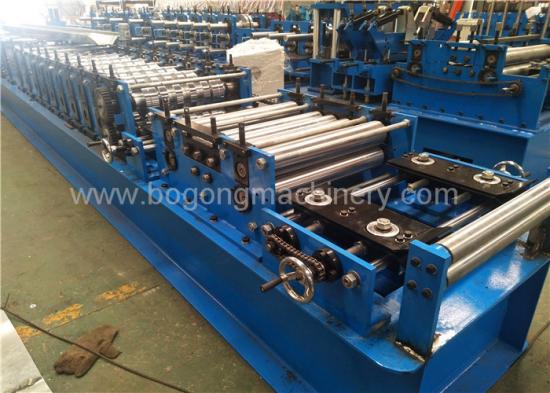

    For this high speed greenhouse gutter structure roll forming machine, we have designed two guider sections at the beginning of whole roll forming lines. After galvanized steel coil goes into feeding rollers, the first feeding guider leans material go into straightening rollers, after straightening device, the second guiders working and lead flattened material into roll forming sections. The two guider sections width is adjustable.

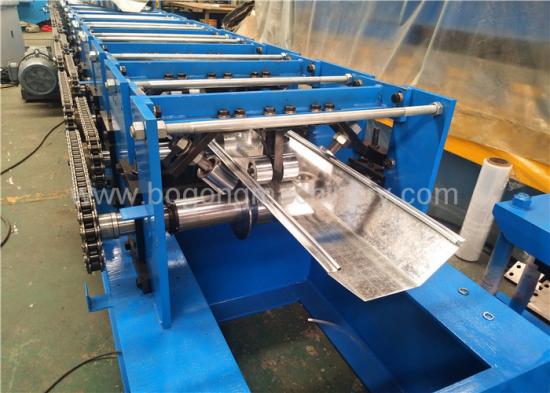

    greenhouse gutter roll forming machine

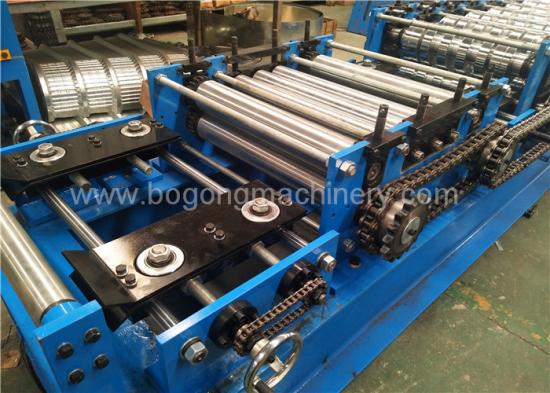

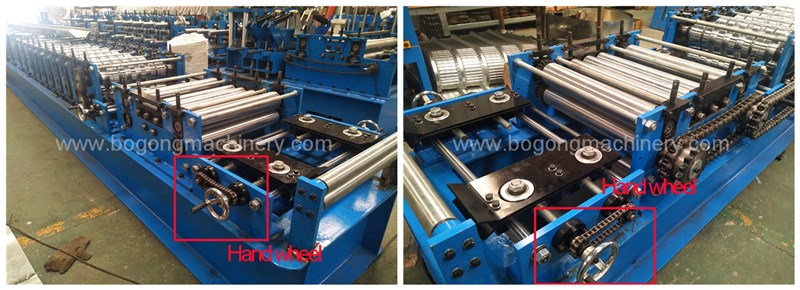

    See below pictures for reference, the hand wheel we have marked out is for adjusting the feeding material width.Because as our experience, the steel coil width may be slitted a little different, some coil is wider and some is smaller, then we can adjust these hand wheels to suit for our high speed greenhouse gutter structure roll forming machine lines. There are two groups hand wheels on each guider section, total four sets, we only need adjust on side hand wheel on each guider section is it is necessary, because there are union combined.

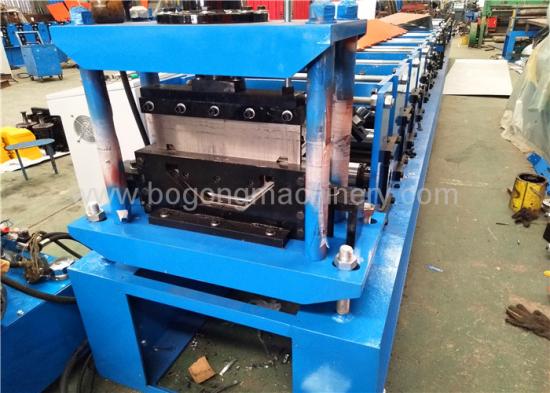

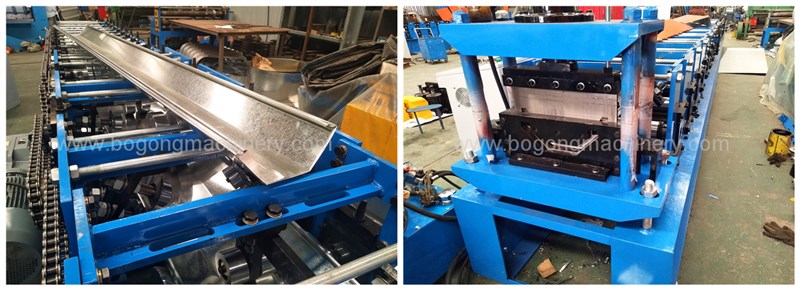

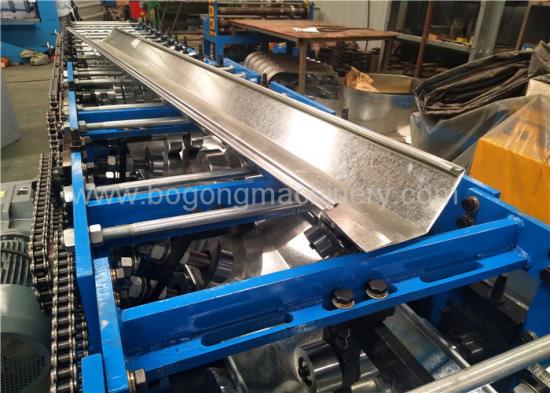

    The gutters cutting off action are finished by hydraulic system, it is blanking cutting, with small waste material to ensure cutting head is beautiful. This  greenhouse gutter structure roll forming machine speed is adjustable, it can be adjust on PLC control box. The important for greenhouse structure product is to keep the gutter straight and the connecting position is smoothly, see below sample for reference.


    Technical Parameter


    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 11KW
    Hydraulic Cuting Motor 3KW
    Forming Steps 18 Station
    Working Speed 15-20m/min
    Thickness for Steel 15-2.0mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material GCr15 steel with polished and heat treatment
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Pre-punch pre-cut
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+black Or Customization
    Overall Size 9000*1000*1450mm
    Weight 4500KGS


    Need More Information, pls contact: +86 15959271231 (whatsapp/ wechat ID also)
