    Custom Roll Forming Machine

    Home Custom Roll Forming Machine Size Interchangeable Solar Channel Roll Forming Machine
    • Size Interchangeable Solar Channel Roll Forming Machine

    • Solar channel roll forming machine also called solar branket roll forming machine photovoltaic branket roll forming machine, it is used with solar panel roll forming machine together normally. We xiamen Bogong Machinery can custom manufacture according to user's rquirements size interchangeable also.
    • Lead Time:70 Days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 4mm
      Material Width: Custom
      Covered Width: Inerchangeable
      Forming Station: 22
      Driving Motor: 15kw*2
      Shaft Diameter: 100mm
      Roller Material: GCr15
      Cutting Blade Material: SKD11
      Cutting Type: Post Cut
      PLC Brand: Simenz Or Custom
      Encoder Brand: Encoder
    • Contact Us
    Detailed description

    Custom design & manufacture kinds of roll forming machines, such as door rail, roller shutter door, high way safety guardrail, roof sheet, floor deck used forming machines.


    Product Name: Size Interchangeable Solar Channel Roll Forming Machine



    Machine Details

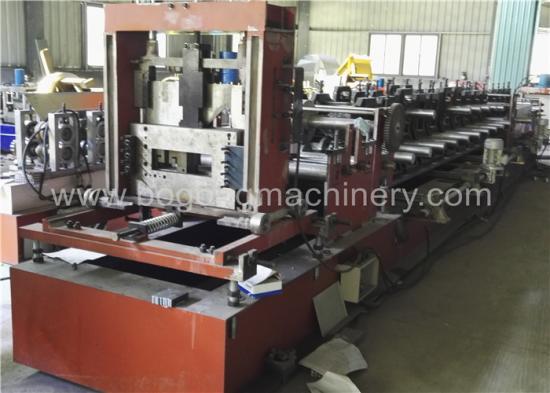

    This size interchangeable solar channel roll forming machine is a full automatic line combined with straightening device, hole punching section, size interchangeable roll forming section and universal cutting off section.

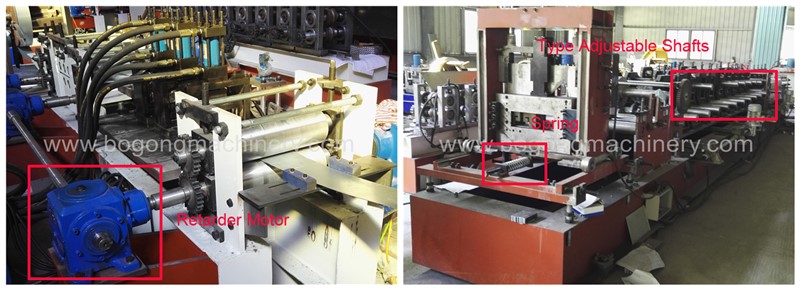

    On each station of roll forming section, there is matched with a retarder motor, the connecting rod and couplings made all stations run on the same time, this can ensure the machine precision more higher and the driving power is enough.

    We have designed and manufactured one buffered spring together on universal cutting section, it is more safe and not go off when the speed is too fast. This is a size interchangeable roll forming machine for solar branket, so all the shafts are moveable type.

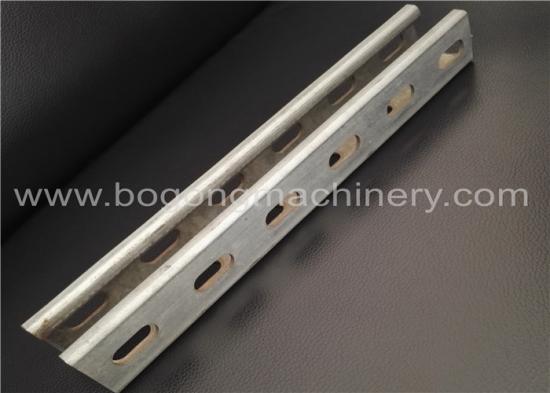

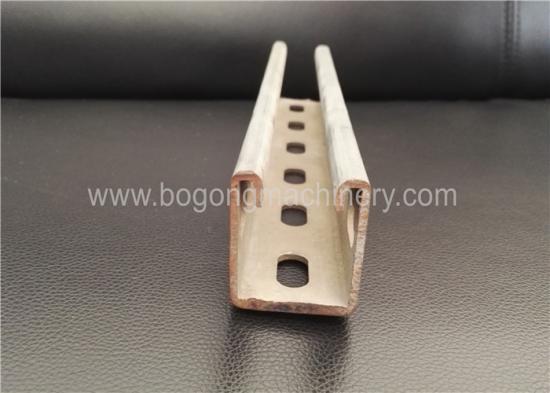

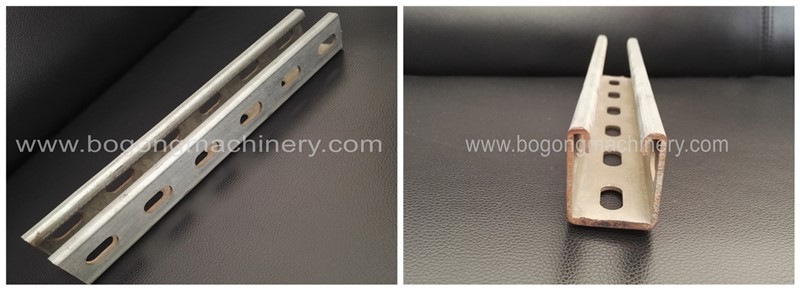

    See the solar channel sames after roll forming by the size interchangeable solar channel roll forming machine, the material thickness is 4mm, the samples piece should be straight and all hole distance should correct for cables.


    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH--or customized
    Driving Motor 15KW*2
    Hydraulic Cuting Motor 11KW
    Motor For Width Adjust 0.75KW*3
    Forming Steps 22
    Working Speed 15-20m/min
    Thickness for Steel 4mm (Material:PPGI,GI Steel G550)
    Shaft Diameter 100mm
    Shaft Material High grade 45# forged steel
    Roller Material Gr15 steel with polished and heat treatment
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Pre-punch punching post cutting, one pin for side hole, one pin for bottom hole
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+Gray White Or Customization
    Overall Size 11000*1400*1700mm
    Weight 180000KGS


    Need more information, pls contact with us soon.
