    • Three In One Quick Change Small Steel Profile Roll Forming Machine

    • Our Quick Change Small Steel Profile Roll Forming Machine can produce total three profiles, three profiles share machine frames and each profile has their own full small set machine roll forming rollers, shafts, but only share the PLC control box and driving motor.
    • Material Thickness: 0.4-0.8mm
      Forming Station: 12 steps
      Shaft Diameter: 65mm
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Each roll forming designs for door, roof, wall, fence, storage rack are available for custom manufactured.


    Product Name: Quick Change Small Steel Profile Roll Forming Machine


    Machine Details

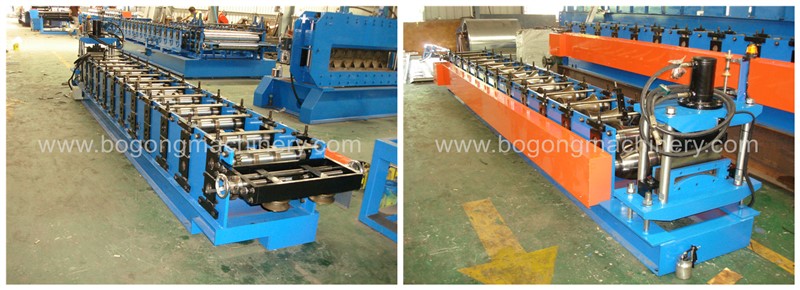

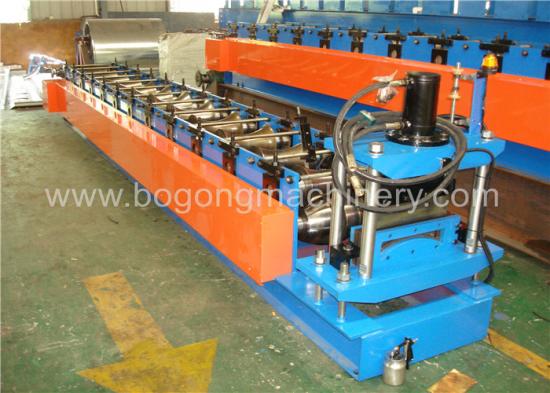

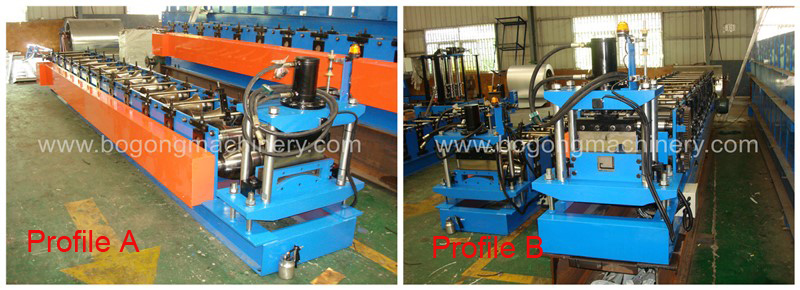

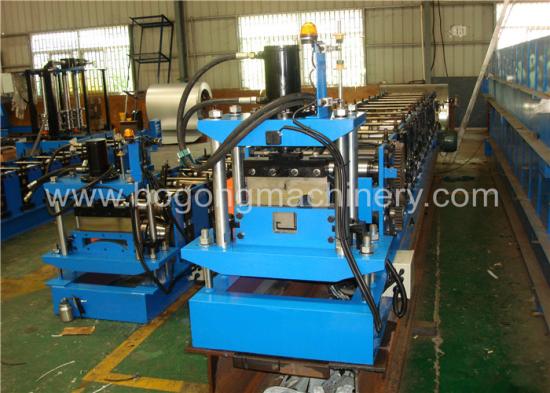

    This design is for total three types of steel profiles, each profile used roll forming section has its own small machine frame with rollers and shafts, but three profiles share the electric control system and hydraulic system. After finished the current design producing take, worker only need to lift the current small machine up and change another needed profile set on big frame, very easy to operate, no need change any rollers and adjust again, that why we call it into Quick Change Small Steel Profile Roll Forming Machine.

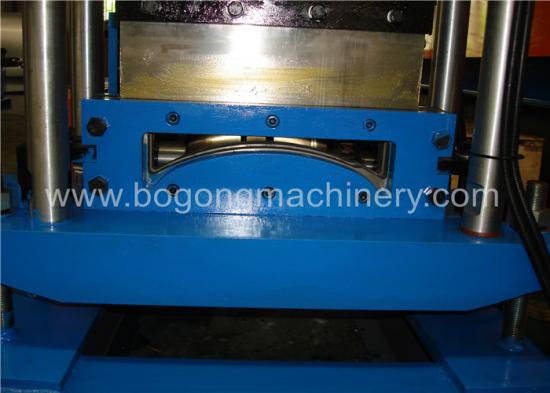

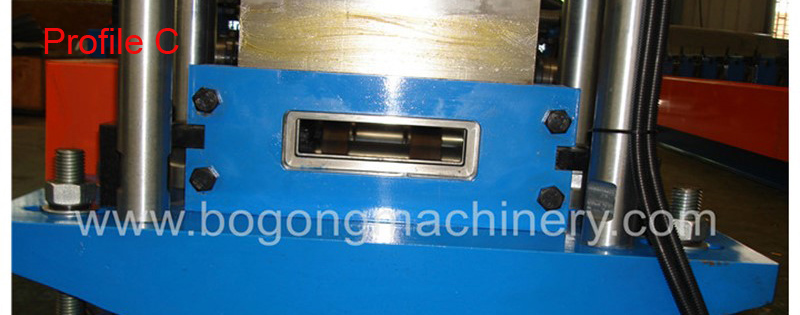

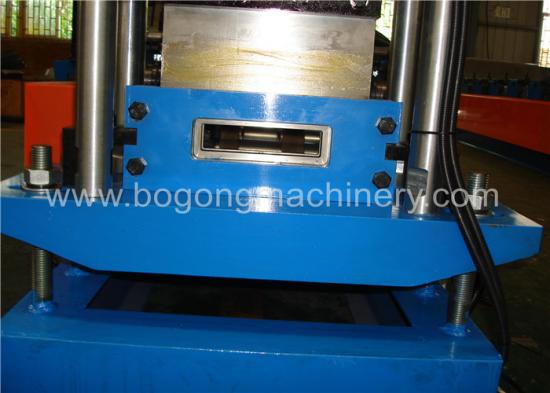

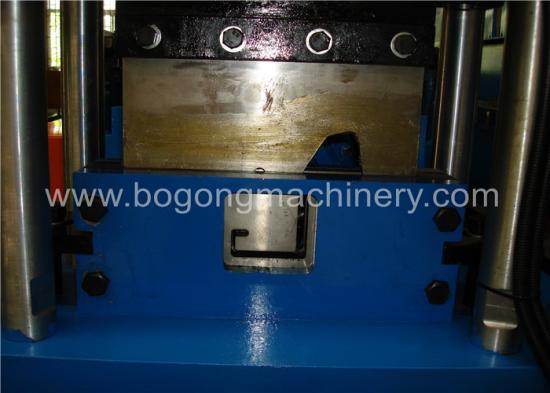

    On this Quick Change Small Steel Profile Roll Forming Machine, everything are the same as common used roll forming machines, separated roll forming part for each profile design, and has their own small machine frame also. But the cutting blades is different, each profile has alone cutting blades.So the quick change type roll forming machine normally is suitable for small designs to save layout place better.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    4KW

    Forming Steps

     10,12 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.5-0.8mm

    Shaft Diameter

    65mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

    Galvanized steel

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    6500*950*1050mm

    Weight

    4550KGS
