    Custom Roll Forming Machine

    Home Custom Roll Forming Machine Steel Sheet Ceiling Panel Roll Forming Machine
    • Steel Sheet Ceiling Panel Roll Forming Machine

    • Ceiling panel also can be called decoration panel plate, ceiling panel roll forming machine is one brand of steel sheet roll forming machines, customized design and manufacture are available.
    • Item No.:YX41-406
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.6mm
      Forming Station: 20 Steps
      Driving Motor: 5.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Accept all custom roll forming machines for ceilings, doors, roofs, purlins and green house used metal materials, etc.


    Product Name: Steel Sheet Ceiling Panel Roll Forming Machine

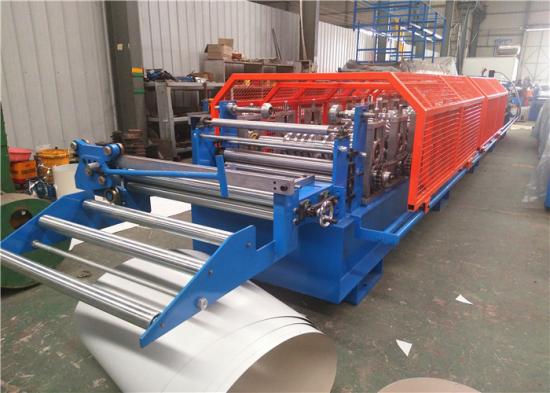

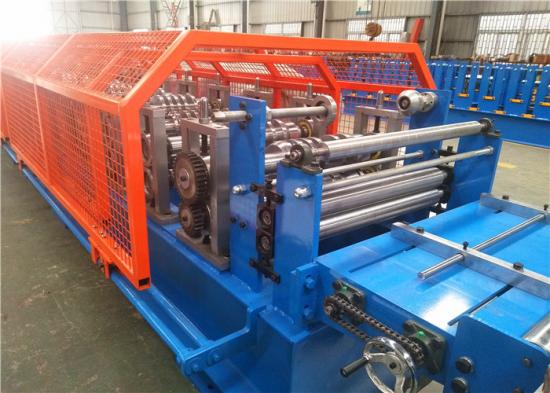

    1. Before feeding table, there is entry bench and pre-sheer at steel sheet ceiling panel roll forming machine's beginning end, see below pictures, the feeding guider on feeding table is adjustable, hand wheel adjusting.

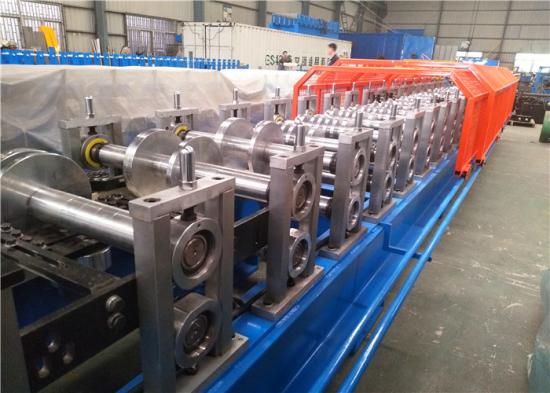

    In roll forming sections, we have made push-pull safety mesh cover on this steel sheet ceiling panel roll forming machine, it is for keep workers safe and won't push their hands inside when the machine is running.

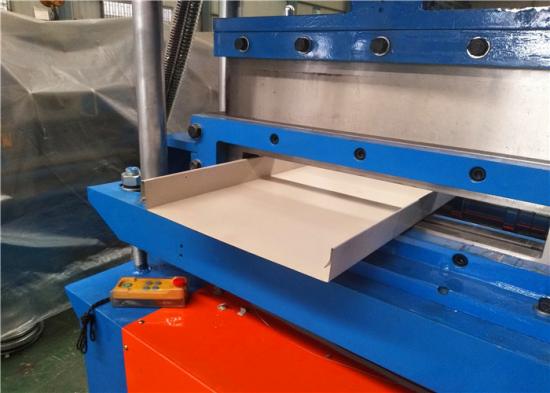

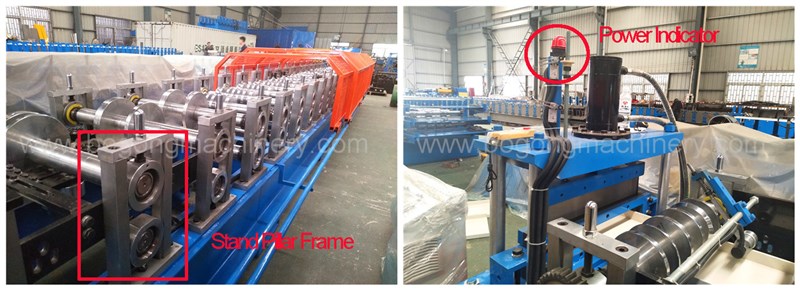

    2. At the cutting off end of steel sheet Ceiling Panel Roll Forming Machine, we install power indicator, when the steel ceiling roll forming machine is working, the indicator will be light, it is more safe for operator and can remind worker to switch off the power supply after be off duty.


    The final user required us to make the whole roll forming machine frame as stand pillar type, this is high quality type design and new popular style in the market, more beautiful appearance, another good choice for our quality customers.

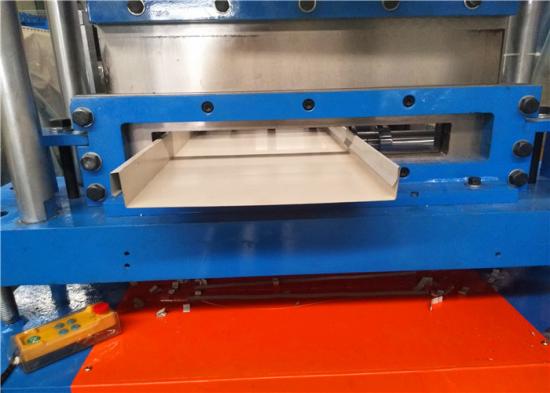

    3. This is the type changeable steel sheet ceiling panel roll forming machine, can produce three sizes of ceiling panels, D-spacer change the types, but the cutting blades should be changed after exchanging anther width. One alone station for roll forming strength ribs, user can choose roll forming ribs or not.


    Technical Parameters


    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    5.5KW

    Forming Steps

     20 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.3-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    10000*1050*1350mm

    Weight

    6500KGS

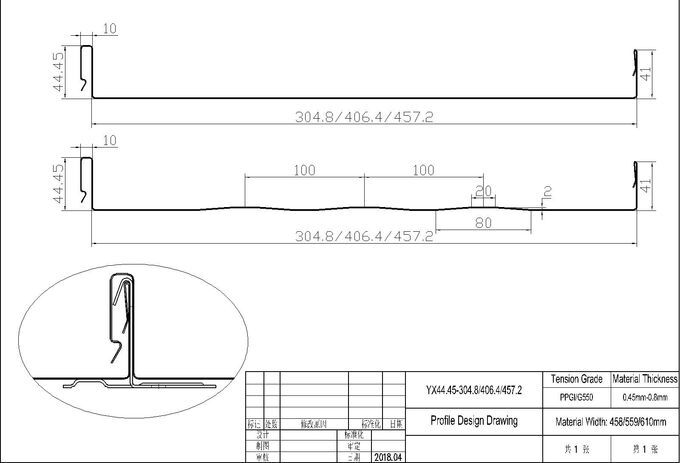

    Profile Drawing Drawing



    Three feeding width three effective width, changeable design for steel decoration sheet roll forming machine profile design, any need, feel free to contact us, we can customize design or OEM for users.
