    Custom Roll Forming Machine

    Home Custom Roll Forming Machine Steel Metal Fence Strip Roll Forming Machine With Punching
    • Steel Metal Fence Strip Roll Forming Machine With Punching

    • Whole steel metal fence strip roll forming machine with punching machine is decelerated by main motor and driven by gear unit for driving up and down barrel rolls. Both rolls keep meshing status by gear unit. The sheets are put on the movable platform and feeding by crank mechanism which will make sure the sheet entering into machine without any deviation.
    • Lead Time:60 Days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 1.2-1.8mm
      Forming Station: 8
      Driving Motor: 5.5KW
      Shaft Diameter: 65mm
      Roller Material: 45# Steel
      Cutting Blade Material: SKD11
      Cutting Type: Post Cut
      PLC Brand: Simenz Or Custom
      Encoder Brand: Encoder
    • Contact Us
    Detailed description

    Custom design & manufacture kinds of roll forming machines, such as steel storage shelf, door rail, roller shutter door, high way safety guardrail, roof sheet, floor deck used forming machines.

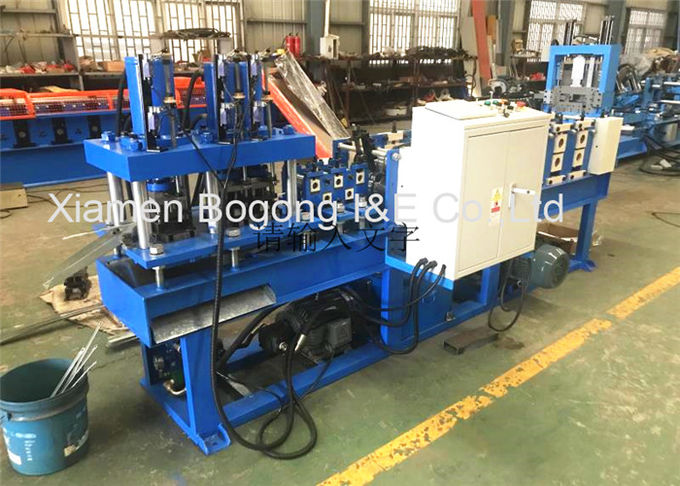

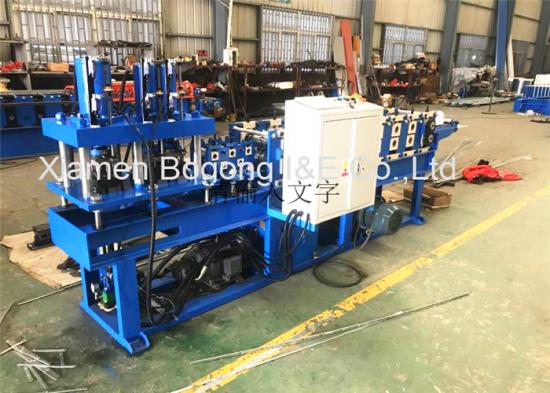

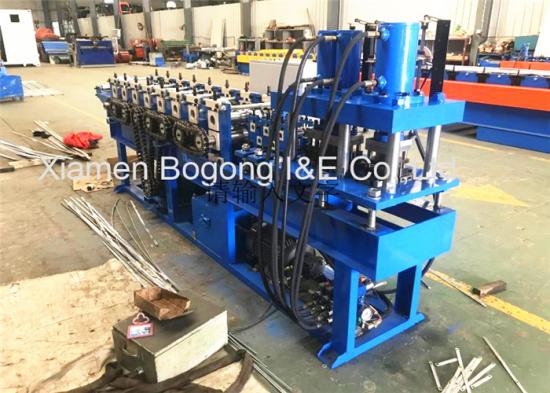

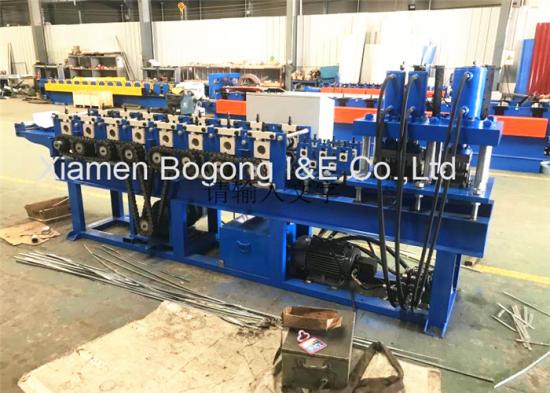

    Name: Steel Metal Fence Strip Roll Forming Machine With Punching



    Compact Machine Structure

    Whole steel metal fence strip roll forming machine with punching machine is decelerated by main motor and driven by gear unit for driving up and down barrel rolls. Both rolls keep meshing status by gear unit. The sheets are put on the movable platform and feeding by crank mechanism which will make sure the sheet entering into machine without any deviation.


    Easy control and operate

    The machine adopts variable-frequency regulating speed technology, so in order to achieve best forming effect; you can set different forming speed, feeding speed according to different raw material sheets. The installating holes will be pre-punching at the beginning of fence strip roll forming machine and then the formed well strip will be cut off by hydraulic cutting system,.




    We Xiamen Bogong Machinery is China Manufacturer, we can make customized Galvanized Sheet New Design Light Gauge Steel Keel Roll Forming Machine  according to user's requirements. Welcome come to inspection and provide steel keel hat sample for double confirm!

    Technical Parameter



    Machine Component Specification
    Roll Forming Machine Gear/Sprocket driving; 8 stations roll forming
    Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
    Shafts Diameter=ф65mm, Precision Machined, fine Polished
    Main motor =5.5KW, Frequency speed control
    Max Line speed of roll Former: Approx. 7-15m/min
    Hydraulic Cutting Device Stop to punch, post punch, stop to cut, Post cut
    Cutting tool material: Cr12, Heat treatment
    Hydraulic unit, Pump motor =7.5KW
    PLC Control System Control the quantity & cutting length automatically
    Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
    Cut-to-length tolerance≤±2mm
    24V Control voltage
    Product Rack Un-powered, 3 units

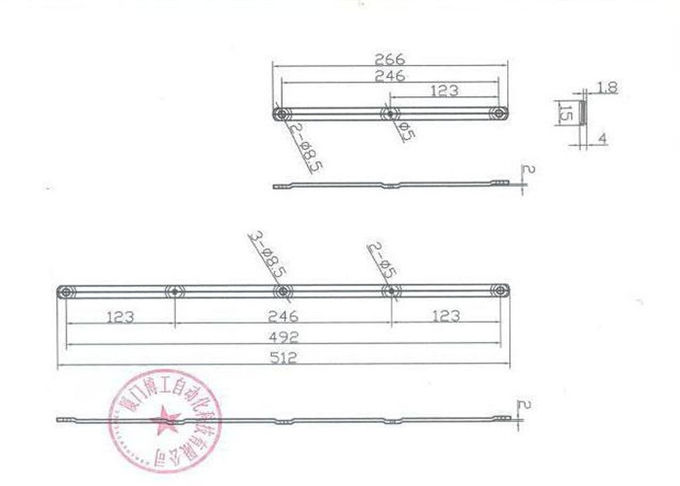

    Profile Design & Sample

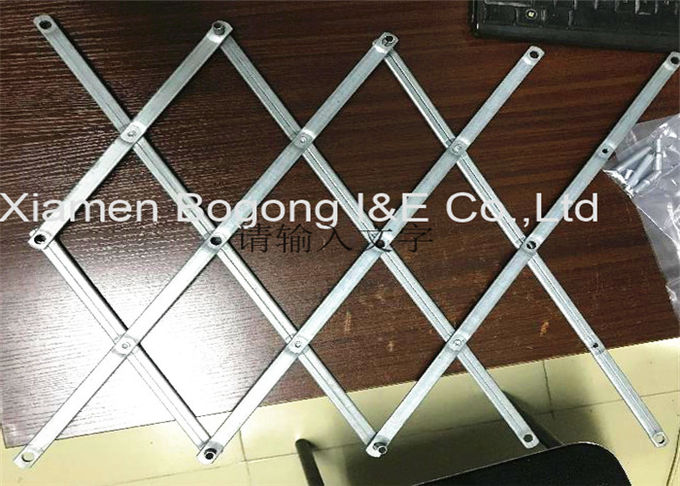

    This Steel Metal Shrinkable Fence Strip Roll Forming Machine is new design for our customer, there is installing holes for fence installation.






    FOR MORE INFORMATION, FEEL FREE TO CONTACT ON LINE:

    WHATSAPP/ WECHAT: 0086 15959271231


    leave a message

    If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
    Subject : Steel Metal Fence Strip Roll Forming Machine With Punching

    If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
