    Shutter Door Roll Forming Machine

    Home Shutter Door Roll Forming Machine Steel Metal Rolling Shutter Door Roll Forming Machine 136mm Feeding Width
    • Steel Metal Rolling Shutter Door Roll Forming Machine 136mm Feeding Width

    • This roll forming machine is for producing galvanized shutter door material, the important for all Steel Metal Rolling Shutter Door Roll Forming Machine is to ensure all shutter door panels should be connected well, not to lose after rolling up.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.6-1.0mm
      Material Width: 136mm
      Covered Width: 76
      Forming Station: 15
      Driving Motor: 4KW
      Shaft Diameter: 65mm
      Cutting Blade Material: Cr12
      Cutting Type: Blanking
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Customize any kinds of steel door, rolling shutter door roll forming machines and other necessaries.


    Product name: Steel Metal Rolling Shutter Door Roll Forming Machine 136mm Feeding Width

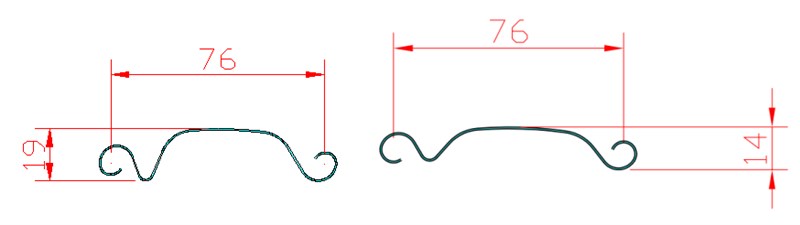

    Profile Design Drawing

    This Steel Metal Rolling Shutter Door Roll Forming Machine is the popular design for garage door, the raw material width is 136mm and 122mm,the raw material can be pre-painted  sheet and galvanized sheet, and suit for 0.6-1.0mm thickness.

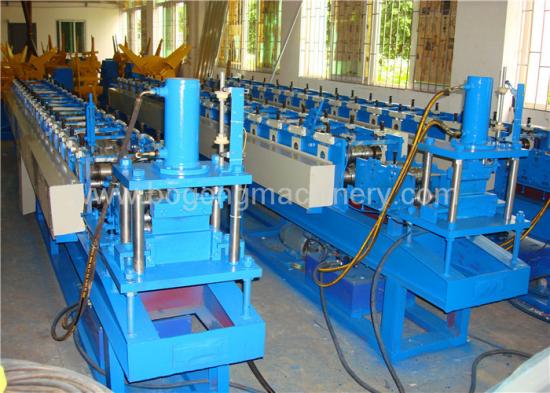

    Main Machine Details

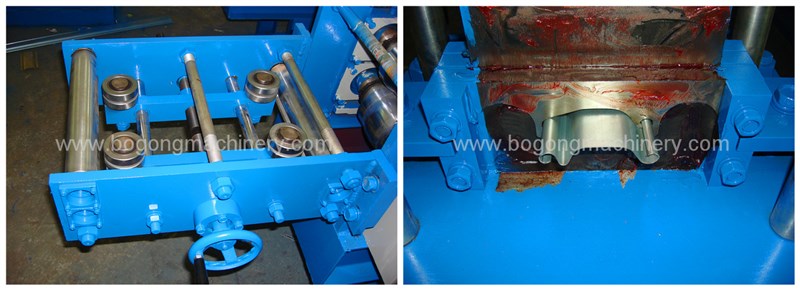

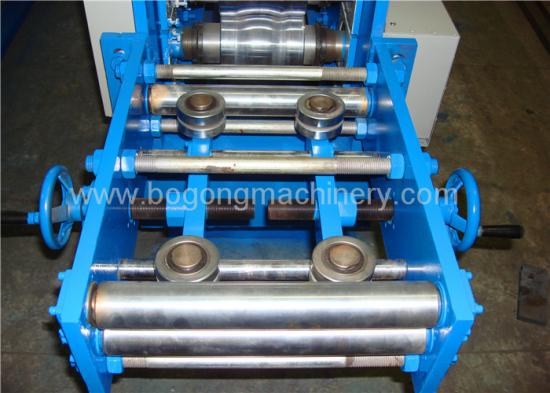

     At the beginning of Steel Metal Rolling Shutter Door Roll Forming Machine, there is one group guiding roller, then guiding plate for material head, the guiding plate width can be adjusted by hand wheel, it is convenient for operating.

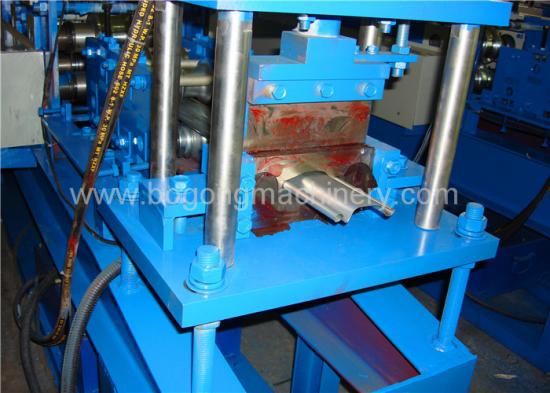

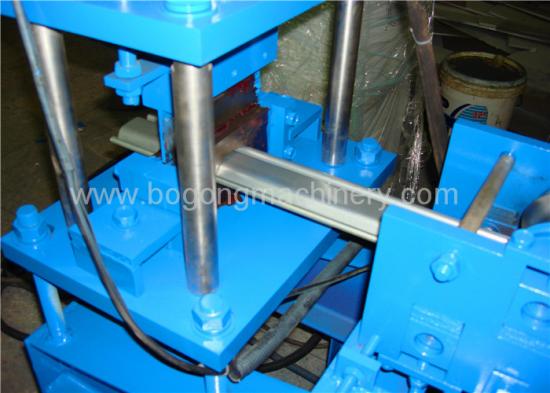

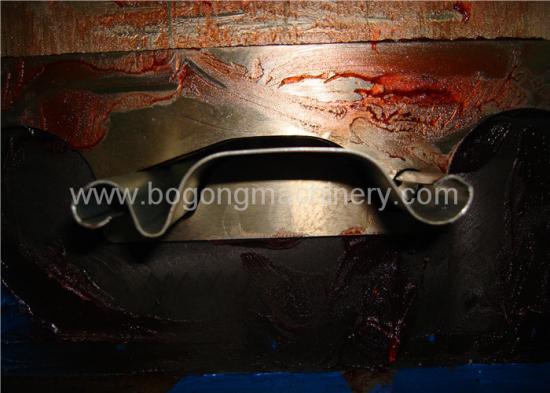

    Next is hydraulic cutting section, three pieces of cutting blades cutting, with small waste material cutting to ensure cutting place good.

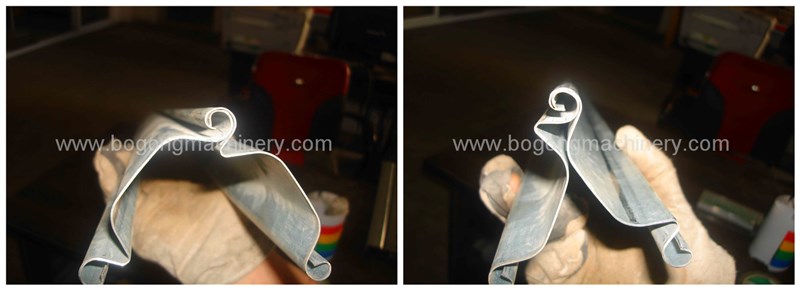

    For Steel Metal Rolling Shutter Door Roll Forming Machine, the most important is to produce good effective joint shutter door panel, see below jointed effect picture, no matter positive direction or negative direction, all should keep the overlap is good, never fall down from other pieces.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    KW

    Forming Steps

     15 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.6-1.0mm

    Shaft Diameter

    65mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

     GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    7500*950*1050mm

    Weight

    2500KGS
