Steel Metal Door Frame Roll Forming Machine
- This door frame roll forming machine is used for roll forming metal door and metal window frame used strips, the door frame is together with installation section, it is good for install door frames.
- Lead Time:60-80days
Product Orgin:China
Shipping Port:Xiamen Port
Material Thickness: 1.0-1.5mm
Covered Width: 90mm
Forming Station: 12 Steps
Driving Motor: 7.5KW
Shaft Diameter: 70mm
Cutting Blade Material: Cr12
Cutting Type: Waste Material
Encoder Brand: Omron - Contact Us
Customized make roller shutter door forming machine, door rail machine and door guider roll forming machine
Product name: Steel Metal Door Frame Roll Forming Machine
Machine Details

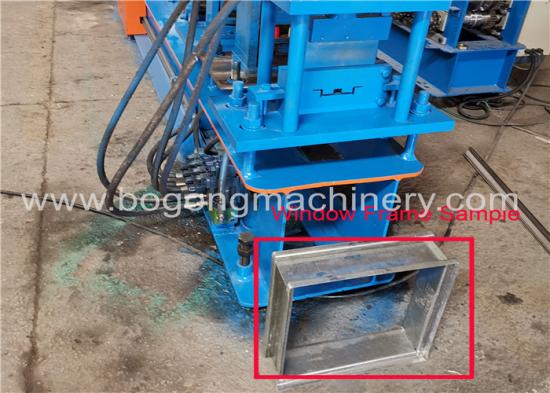

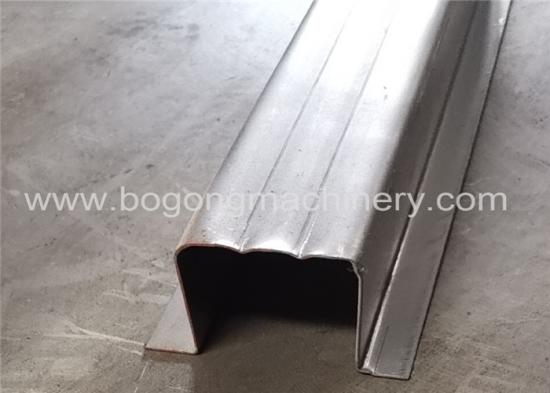

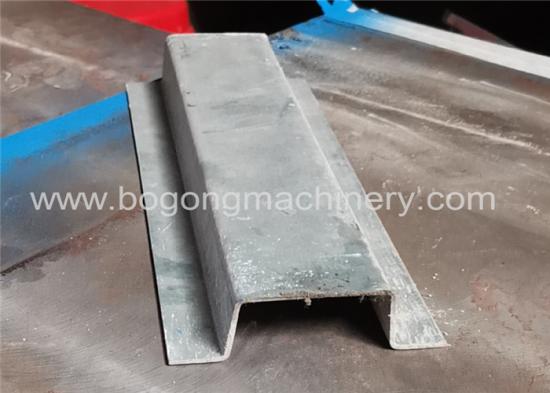

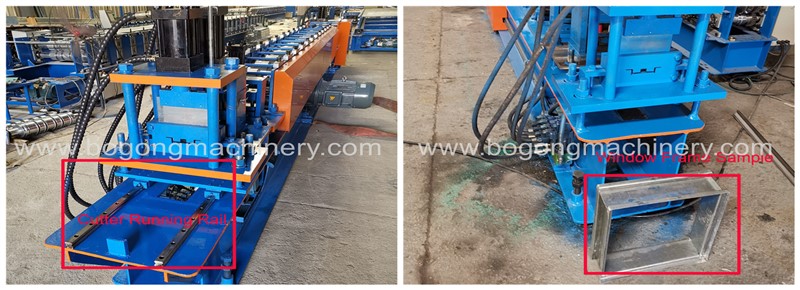

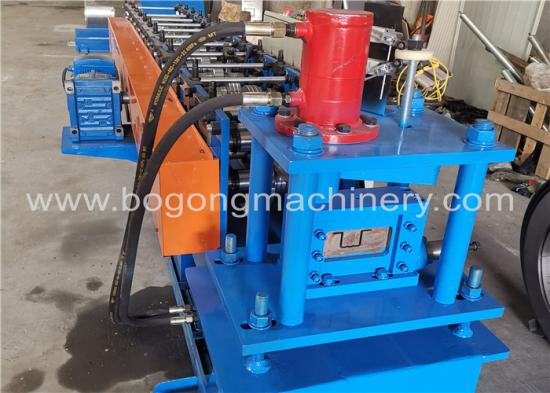

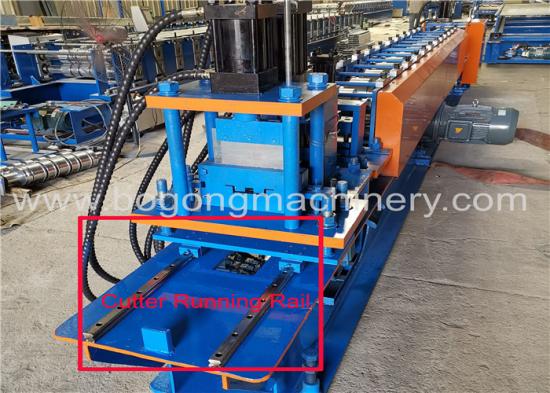

Our Steel Metal Door Frame Roll Forming Machine is following running cutting off type, this can improve whole line working speed. See the running rail for cutting set unit, there is also stop stroke for keeping cutting set unit safe and won't fall down from the rail. After the steel frame sample cutting off from the roll forming machine, it is easy to install well as window frame without any other accessaries.

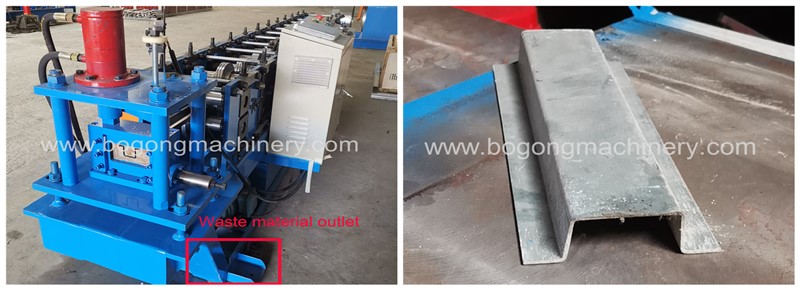

At the end of steel frame roll forming machine end, we have designed waste material outlet collector, it is good for cleaning the waste material and keep working shop clean. Due to this is one small roll forming machine, the PLC control box is portable type also, good for moving when it is available.

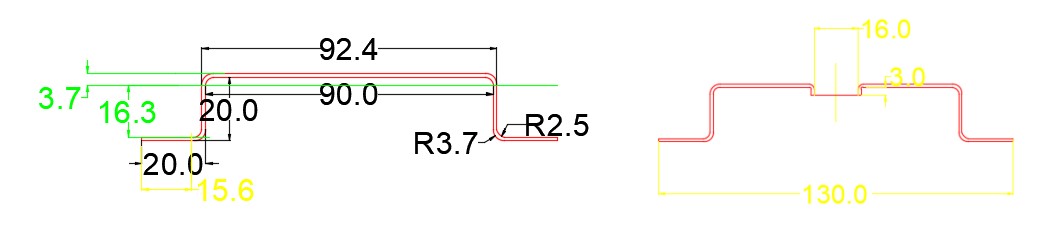

Profile Design Drawing
This steel frame roll forming machine is suit for 1.0-1.5mm material thickness and below is the raw design drawing for reference:
|
Technical Parameters
|
|
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 7.5KW |
| Hydraulic Motor | 3KW |
| Forming Steps | 12 steps |
| Working Speed | 10-15m/min |
| Thickness for Steel | 1.0-1.5mm |
| Shaft Diameter | 70mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | G45# steel, CNC lathe,polished and chrome plated |
| PLC Cabinet | Schneider, Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequency quench |
| Cut-off System | Post cutting, three pieces of cutting blades |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Raw Material | Galvanized steel |
| Painted Color | Blue+Orange Or Customization |
| Overall Size | 6200*950*1050mm |
| Weight | 3000KGS |
