Garage rolling door forming machine, door rail making machine and door guider roll forming machine are customized acceptable.

Product name: Garage Rolling Door Rail Roll Forming Machine

Machine Details

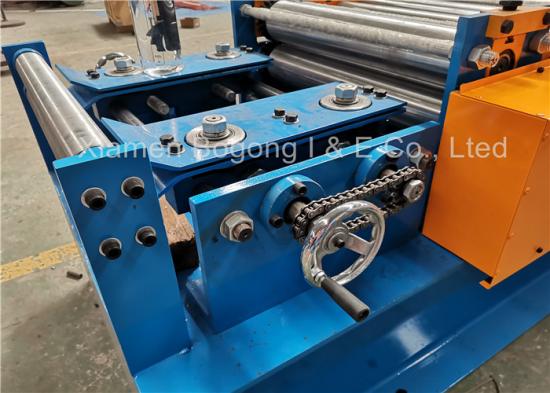

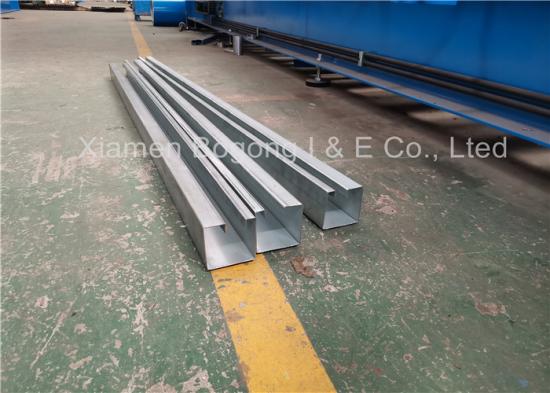

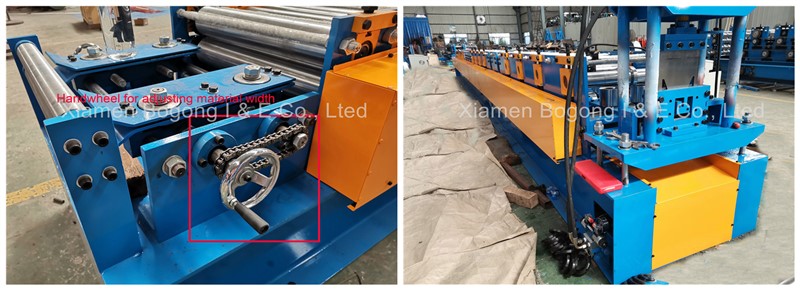

This Garage Rolling Door Rail Roll Forming Machine is used for producing big size door rails in factory or market, the material thickness is: 1.5mm. In order to easily operation, we have designed handwheel at the beginning of machine. It is combined by chain, operator can adjust the suitable material width soon by revolving the wheels on machine two sides.

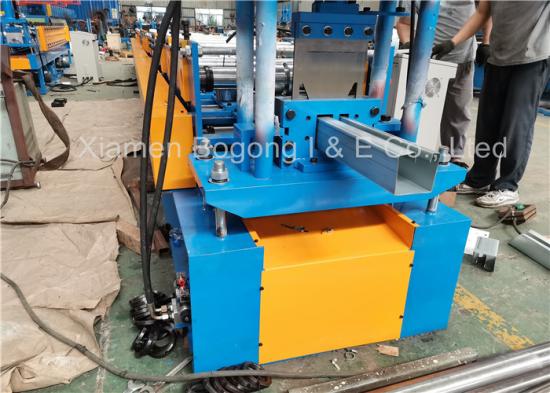

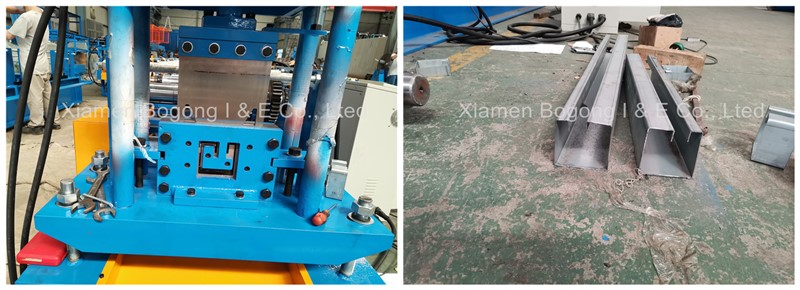

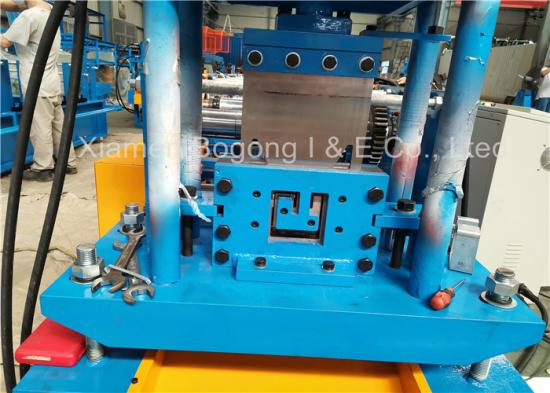

Hydraulic stop to cut has been used on this Garage Rolling Door Rail Roll Forming Machine, with slug cutting for ensure cutting effection, but we have improved the cutting blades hardness by Cr12 material, the cutting blades is more more sharp and slug thickness is less than common.

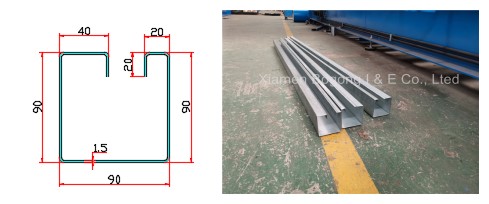

Profile Design Drawing

This door rail roll forming machine is suit for 1.5mm material thickness and below is the raw design drawing for reference:
