    Standing Seam Roll Forming Machine

    Home Standing Seam Roll Forming Machine Aluminum Sheet Standing Seam Roof Panel Roll Forming Machine
    • Aluminum Sheet Standing Seam Roof Panel Roll Forming Machine

    • There are two options for users to buy aluminum sheet standing seam roof panel roll forming machines: in factory or portable? We can custom design and manufacture both factory used and portable type of many shapes standing seam roof panel roll forming machines.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.3-0.5mm
      Forming Station: 14 Steps
      Driving Motor: 5.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Different design of standing seam roof panel roll forming machine, tapered standing seam roof machine/ tapered slitting machine/ arc roof bending machine are acceptable


    Product Name: Aluminum Sheet Standing Seam Roof Panel Roll Forming Machine

    Machine Details

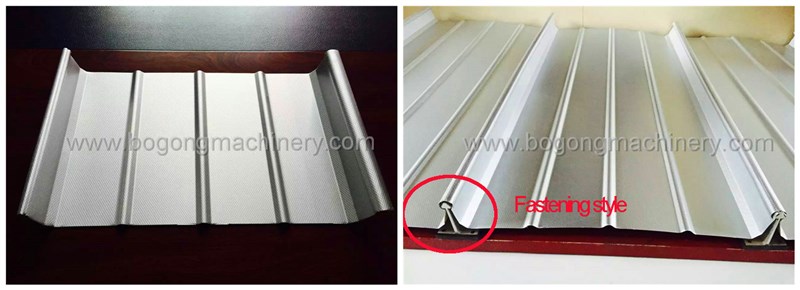

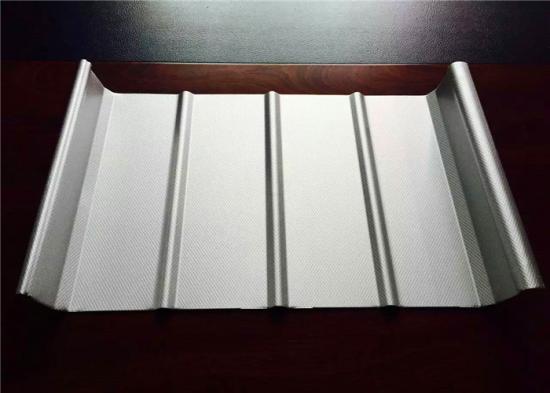

    There are many types of standing seam roof panel roll forming machines, see below shape, it is oblique type clip lock type, 14 stations roll forming, this machine frame is wall-plated connect type, each station are connected by square wall plates and locked by screw nuts, compacting strips.

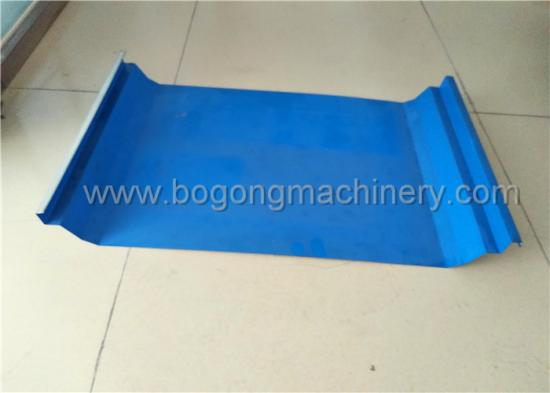

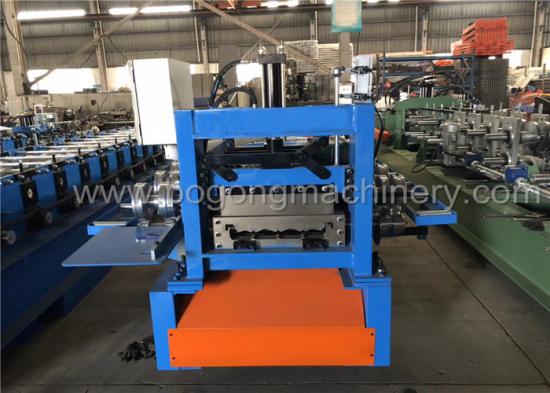

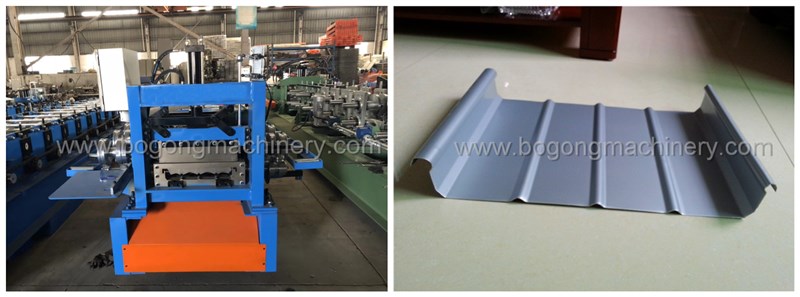

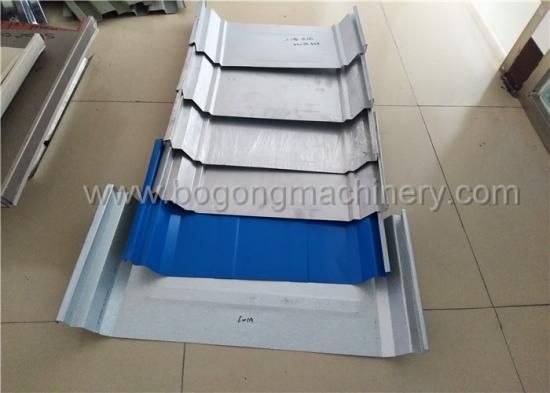

    See another type design of standing seam roof roll forming machine, the standing seam roof material is aluminum sheet, so we also call this machine aluminum sheet standing seam roof panel roll forming machine. When make the two pieces of roof panel join together well, we normally need fastener, then seamed the two pieces of standing seam roof by electric seaming machine. By the way, the standing seam roof raw material can be Al-Mn-Mg alloy coil, aluminum sheet, ppgi sheet, galvanized sheet and even copper sheet, it depends on user's local popular and acceptable material.

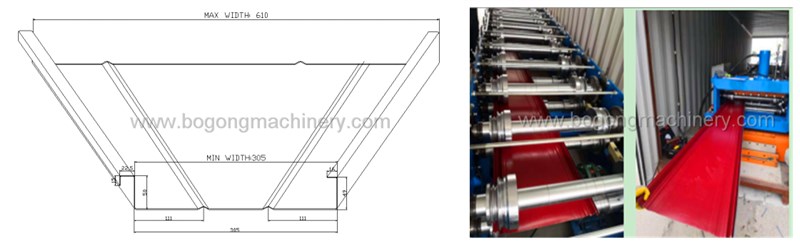

    Except straight type standing seam roof panel roll forming machine, we also can customized taped style standing seam roof panel roll forming machine. See below design, one end width is 610mm and other end is 305mm, between 305mm and 610mm width range, the size can be interchangeable according to user's requirements. PLC control system can calculate tapered angle degree after we input panel's two end width and panel length.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    5.5KW

    Forming Steps

     14 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.3-0.5mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    7000*850*1250mm

    Weight

    3000KGS

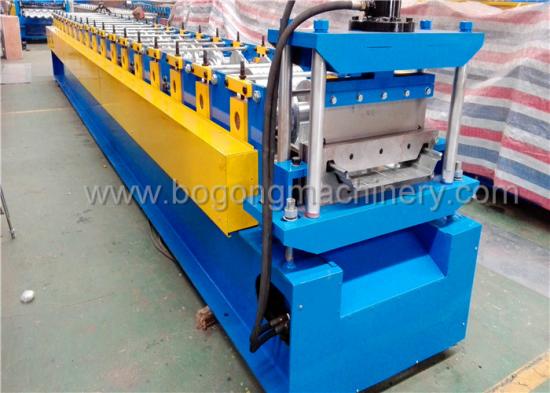

    One more YX65-425 standing seam roof sheet roll forming machine for reference.Contact with us soon to get more information.
