Aluminum sheet standing seam roll forming machines, portable standing seam roof roll forming machine, standing seam roof bending machines and electric seaming machines, tapered slitting machines are acceptable  for custom manufacturing.

Product Name: Tapered Aluminum Sheet Standing Seam Roll Forming Machine

This tapered aluminum standing seam roof roll forming machine  both can produce straight type standing seam roof and tapered standing seam roof, all the sizes can be changed by operating as below:

Remove cutting blades first, change the pre-machined Spacers according instruction manually, which are designed to allow for tapered or straight panels to be formed; Then feed the tapered flat sheet from one side of roll former to form this side’s shape, after run out, take it back to the feeding place, feed the panel from another side to run to the end to form the tapered pane.

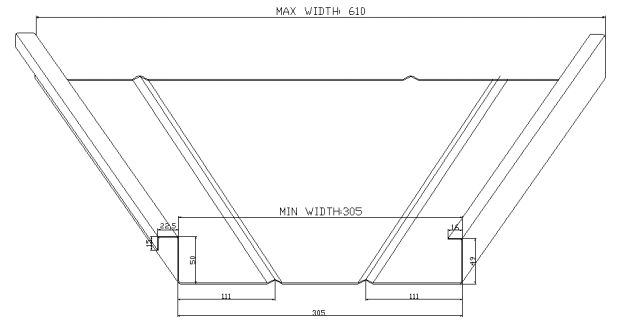

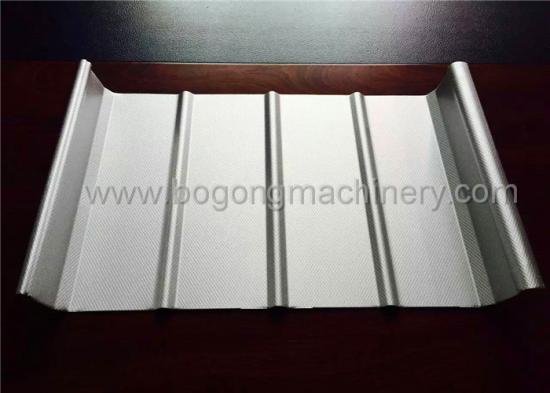

This photo is tapered type roof sheet, see as below:

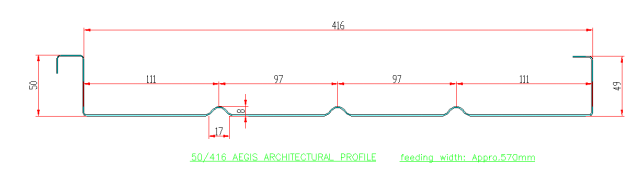

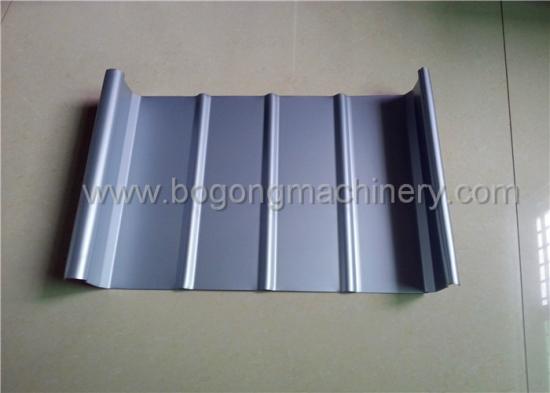

This one is straight type standing seam roof sample, below picture for reference only.

Technical Parameters

Standing Seam Roof Design

a. aluminum 3004 coil: working thickness: 0.7mm-1.0mm, 0.93mm thickness is for inspection, common use, Tensile strength: 220Mpa, Yield strength: 210Mpa;


b. Pre-painted coil: Job thickness: 0.5mm-0.9mm, 0.5mm thickness is for inspection,common use, Grade: ASTM A653M CSB Z180
