Each roll forming machines for portable standing seam roof, for crimping shapes and curving shapes are available for custom manufacture.

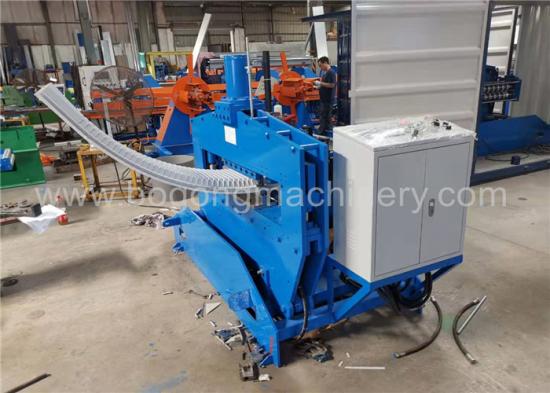

Product Name: Portable Standing Seam Roof Crimping Curved Machine YX50-416

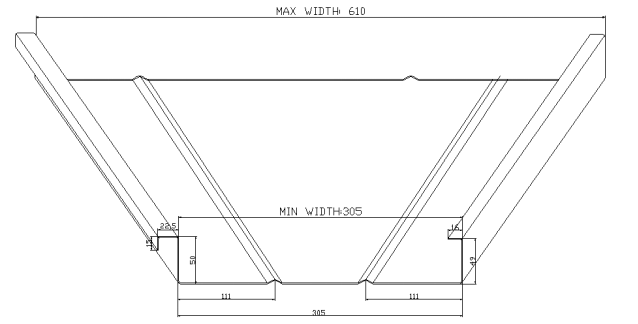

This Portable Standing Seam Roof Crimping Curved Machine YX50-416  both can crimping straight type standing seam roof and tapered standing seam roof.

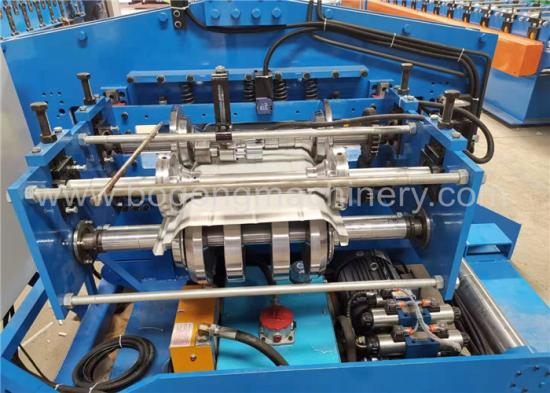

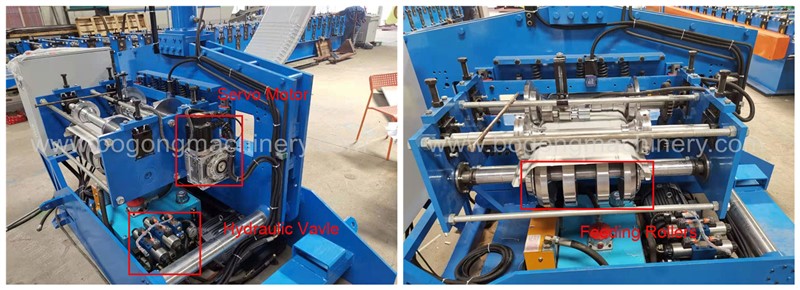

There are on servo motor for feeding roof sheet inside, it is good for control the crimping precision. All the hydraulic valves will be famous brand of YUKEN. Before crimping mold, there are two stations feeding rollers for standing seam roof. It is used for leading material in and ensure the feeding direction is straight and correct.

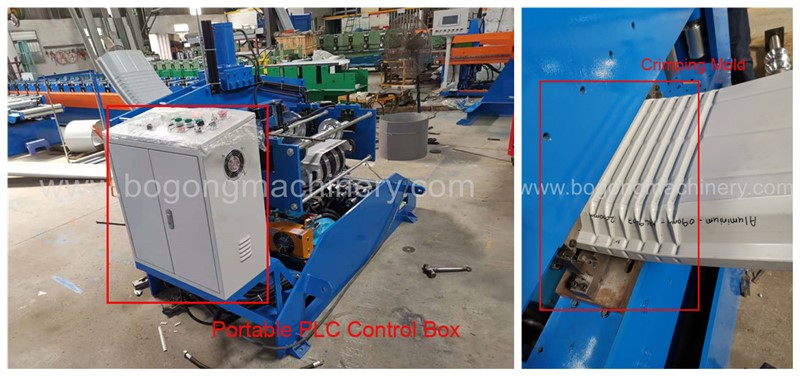

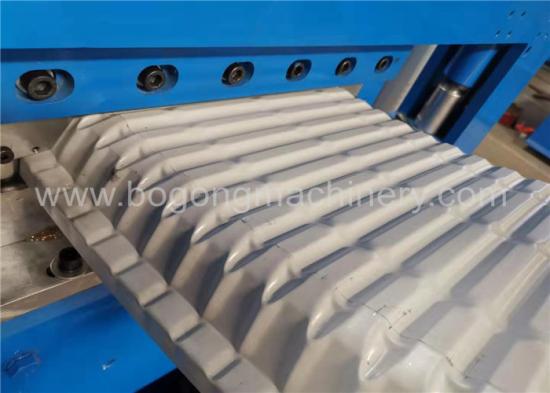

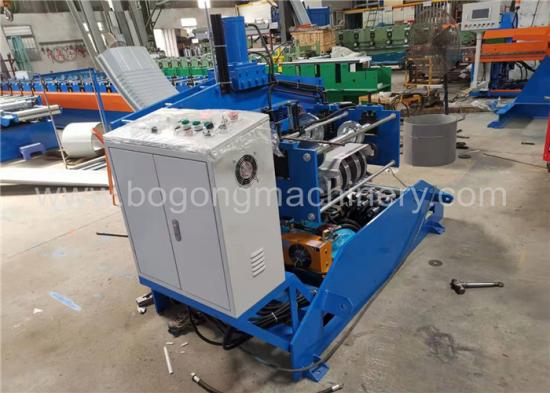

Due to this is the small crimping machine for standing seam roof, we make portable PLC control box also, we have welded one steel frame for supporting the PLC control system. All main electric control parts are Simenz brand, good quality for long working life. See the crimping mold, it is whole alone mold not any break, it can ensure the bottom place of crimped roof is smooth and beautiful.

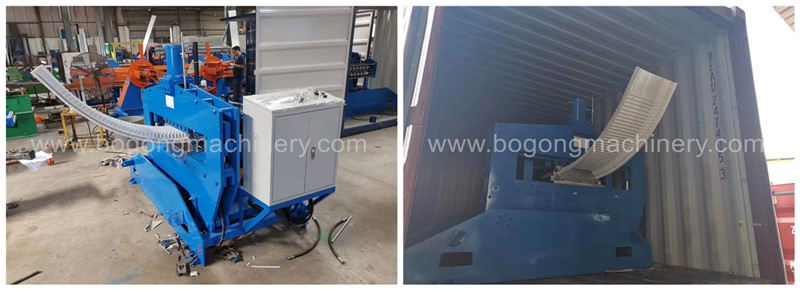

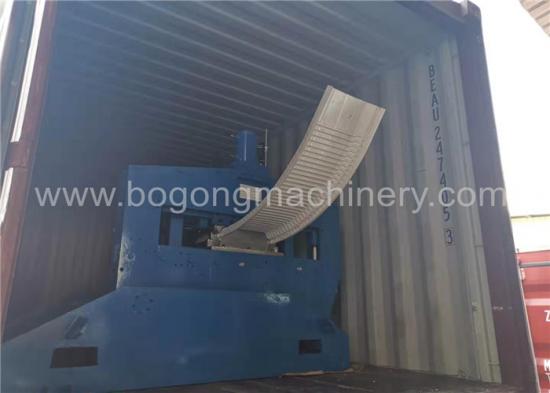

This Portable Standing Seam Roof Crimping Curved Machine normally is working together with portable standing seam roof roll forming machine at project site, so it is also put into small steel box inside, even can be put inside 20ft container. Where the project need, take these machines to buy truck to the project site, it is convenient for owner.

Technical Parameters

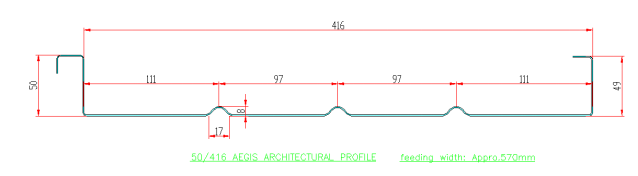

Standing Seam Roof Design

a. aluminum coil: working thickness: 0.7mm-1.0mm, 0.93mm thickness is for inspection, common use, Tensile strength: 220Mpa, Yield strength: 210Mpa;


b. Pre-painted coil: Job thickness: 0.5mm-0.9mm, 0.5mm thickness is for inspection,common use, Grade: ASTM A653M CSB Z180
