    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Steel Metal Roofing Sheet Dual Level Roll Forming Machine

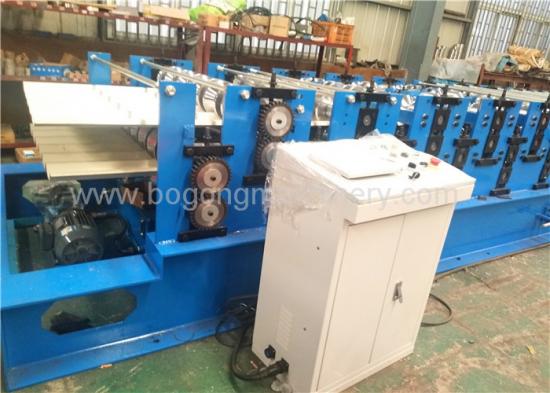

    • Steel Metal Roofing Sheet Dual Level Roll Forming Machine

    • Steel Metal Roofing Sheet Dual Level Roll Forming Machine is the roll forming machine has two layers for two roof sheet designs, one is upper layer and the other is lower layer, it is the good choice for saving layout place option
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.7-1.0mm
      Material Width: 1220mm
      Covered Width: 900/1000mm
      Forming Station: 21/22 Stations
      Driving Motor: 11KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Customize all special designs of steel roof sheet, metal doors, floor deck roll forming machines.


    Product name: Steel Metal Roofing Sheet Dual Level Roll Forming Machine


    Machine Details

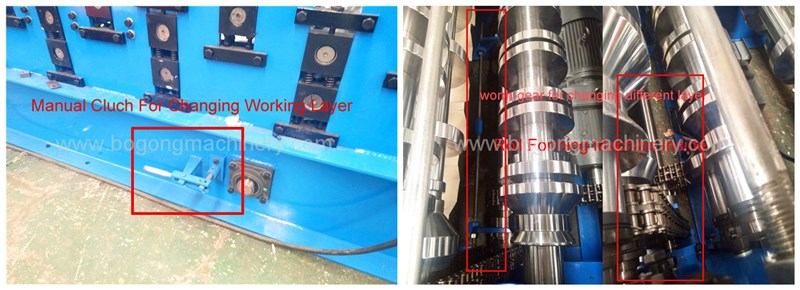

    The two layers of this Steel Metal Roofing Sheet Dual Level Roll Forming Machine can not work on the same time, so we have designed the manual clutch for changing working layer, we can see machine inside structure, the mechanical theory principle is: there are worn-gears aside the driving motor, when the bottom layer worn gear working together with motor, the bottom layer is running, or the upper layer is working.

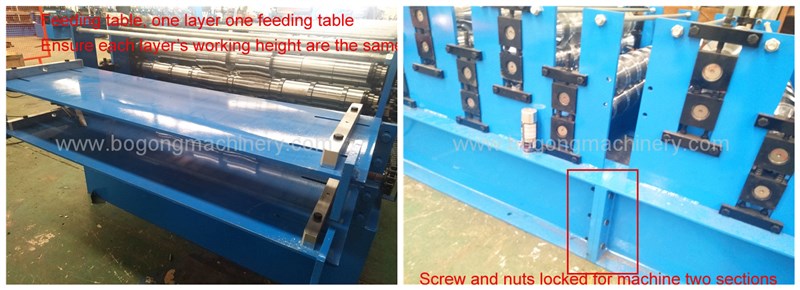

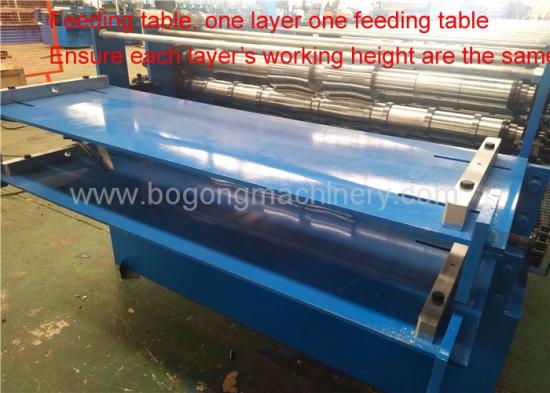

    Because this is dual level type Steel Metal Roofing Sheet Roll Forming Machine, so there are  two feeding tables, two feeding table can ensure each layer's working height are the same, it is good for solving material block.

    Due to this Steel Metal Roofing Sheet Dual Level Roll Forming Machine  is longer than 12 meters, in order to solve loading shipping container problem, we break on machine into two section and jointed with screws and nuts on machine frame two sides.

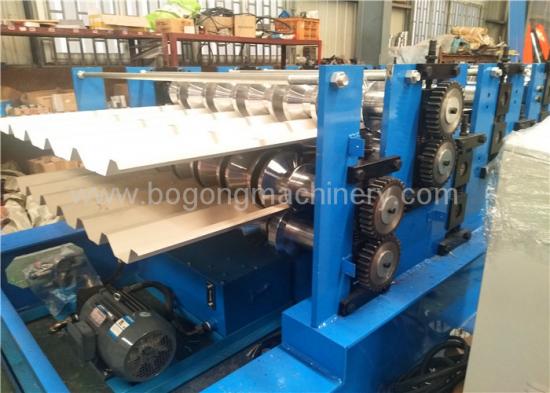

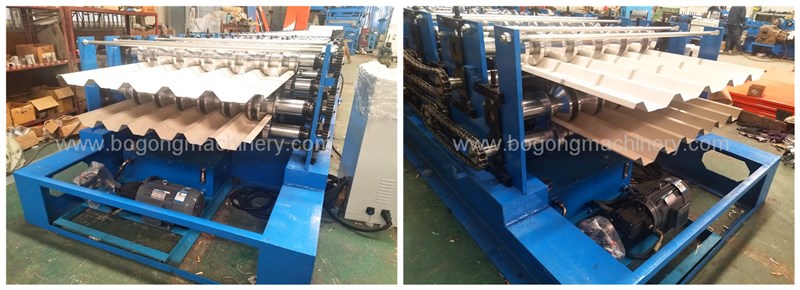

    Roof sheet sample after roll formed by Steel Metal Roofing Sheet Dual Level Roll Forming Machine before cut off, roof surface is no scratch and the roof sides are smooth.



    Technical Specification

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    11KW

    Forming Steps

    21 steps for upper layer, 22 steps for bottom layer

    Working Speed

    15-20m/min

    Thickness for Steel

    0.7-1.0mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    14500*1450*1650mm

    Weight

    11000KGS

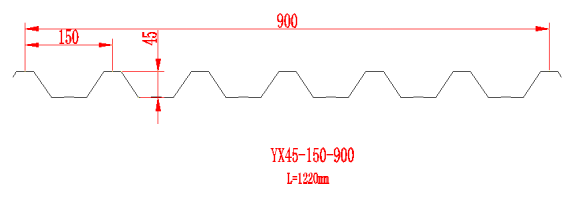

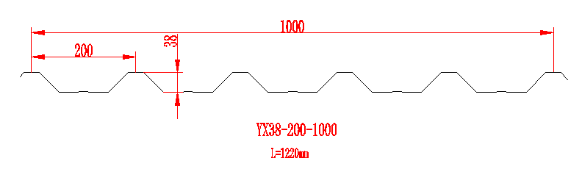

    Remark: YX38-200-100 roof is on upper layer, 21 steps roll forming; YX45-150-900 roof is on bottom layer, 22 steps roll forming.



    Roof Sheet Design



    Suit for Pre-paint Coil,0.7mm Minimum Thickness, 1.0mm Maximum Thickness, The raw material 0.7mm steel sheet for inspection, in common use, Grade: G450.
