    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Speed 30m/Min Zinc Metal Roofing Three Layers Roof Panel Forming Machine
    • Speed 30m/Min Zinc Metal Roofing Three Layers Roof Panel Forming Machine

    • Our Zinc Metal Roofing Three layers Roof Panel Forming Machine is width speed of 30m/min high speed roof roll forming design, it can roll forming pre-painted sheet, zinc coated sheet and aluminum-zinc steel sheet.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 1220mm
      Covered Width: 954/1060/1001mm
      Forming Station: 16/ 16/17 Stations
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
      Cutting Type: Cr12MoV
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Kinds of roof panel roll forming machines, for such as trapezoidal roof, standing seam roof, corrugated roof for aluminum sheet, prepainted sheet, zinc coated steel are available for custom manufactured.


    Product name: Speed 30m/min Zinc Metal Roofing Three layers Roof Panel Forming Machine


    Machine Details

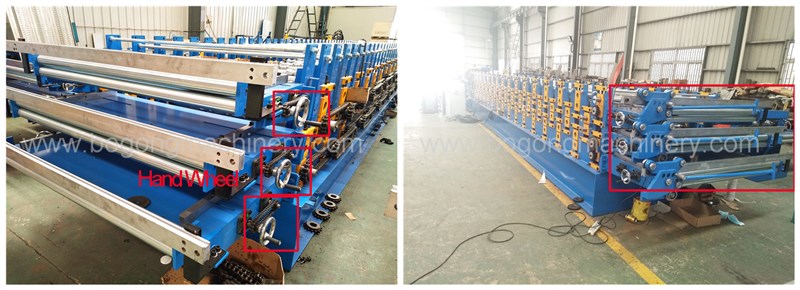

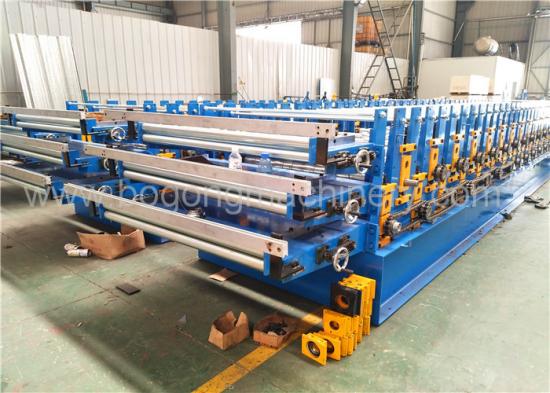

    This Zinc Metal Roofing Three Layers Roof PaneRoll Forming Machine has three working layers, each layers has their own feeding table, and each feeding table also has their own hand wheels for adjusting feeding width. So each layers has alone working height, it is good for machine maintenance and adjustment.

    The alone manual pre-shears for each roof panel layers also, one lay design is total separated from others.

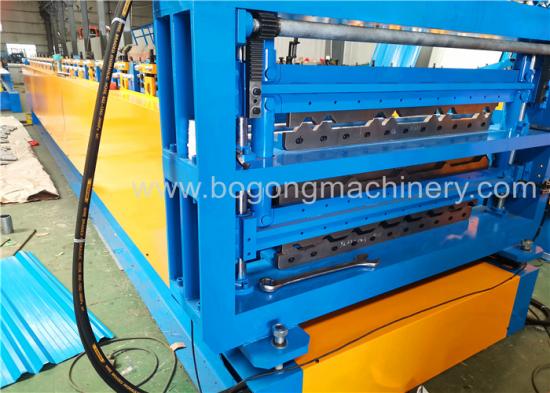

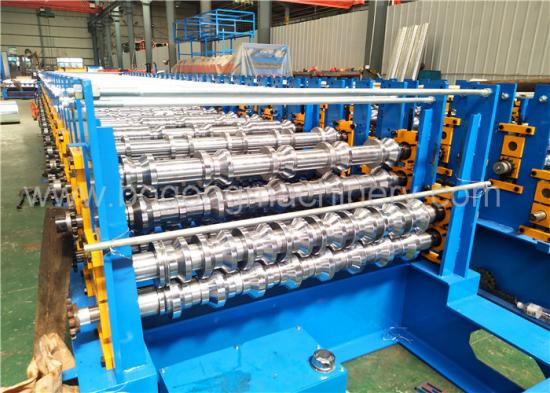

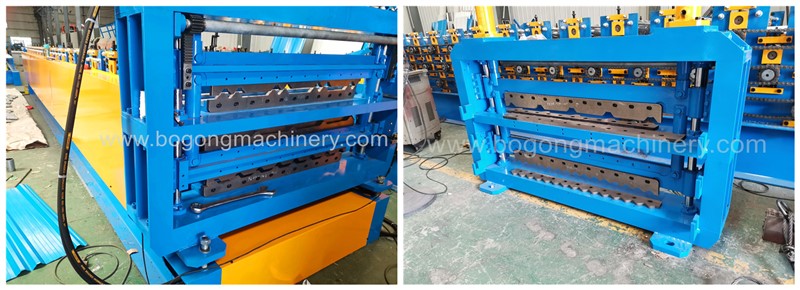

    Each roof design has its own cutting blades, all are hydraulic cutting but same hydraulic motor for each roof design. So in fact that this Zinc Metal Roofing Three Layers Roof PaneRoll Forming Machine's roof profile are separated roll forming rollers, separated cutting blades but only share the same PLC control system.

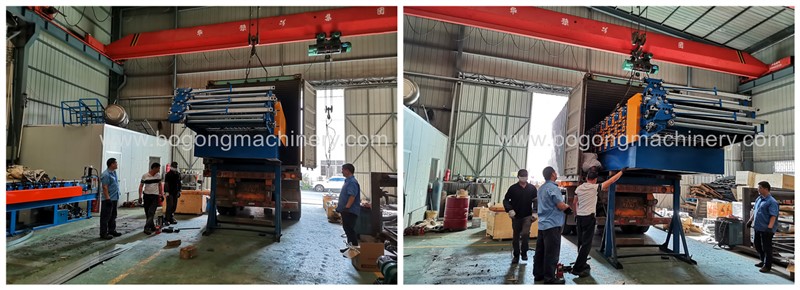

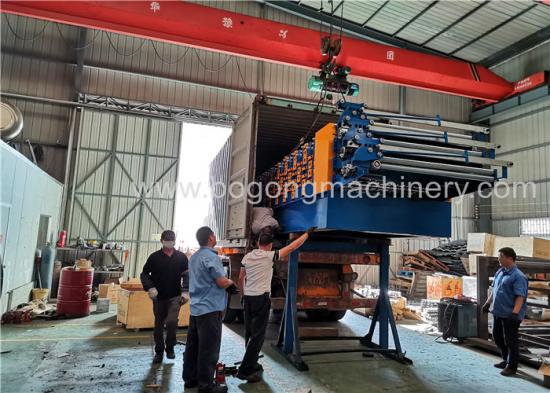

    Container Loading in our factory, one zinc metal roofing three layer roof panel roll forming machine need one 40 feet container for shipping, it is totally about 15tons for this machine, when we loading container or pull out from containers, should be more careful about this.


    Technical Specification

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    15KW*3

    Forming Steps

    16 steps for upper layer, 16 steps for middle layer, 17 steps for bottom layer

    Working Speed

    25-30m/min

    Thickness for Steel

    0.4-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    11500*1450*1650mm

    Weight

    15000KGS
