    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Custom Manufacture Three Layers Roof Panel Roll Forming Machine
    • Custom Manufacture Three Layers Roof Panel Roll Forming Machine

    • Three Layers Roof Panel Roll Forming Machine can be customized manufactured, it is the roll forming machine has three layers for three roof sheet designs, it is the good option for saving machines layout place.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 1220mm
      Covered Width: 1030/998/1060mm
      Forming Station: 14/ 16/17 Stations
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Customize all special designs of steel roof sheet double layers, three layers roll forming machines.


    Product name: Custom Manufacture Three Layers Roof Panel Roll Forming Machine


    Machine Details

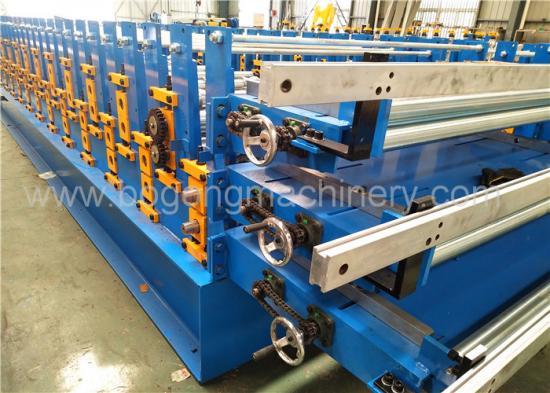

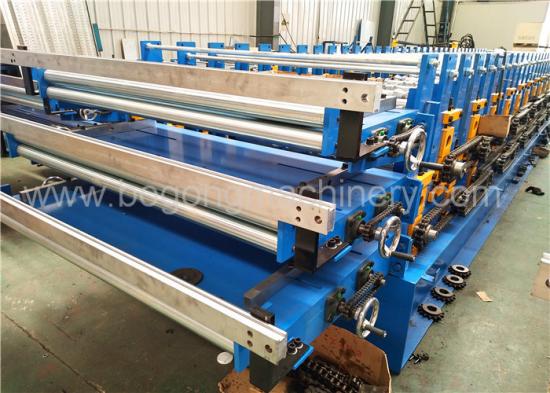

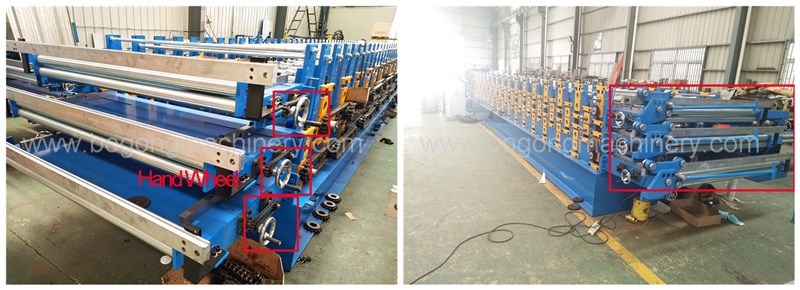

    This Custom Manufacture Three Layers Roof Panel Roll Forming Machine has three working layers, each layers has their own feeding table, and each feeding table also has their own hand wheels for adjusting feeding width. So each layers has alone working height, it is good for machine maintenance and adjustment.

    The alone manual pre-shears for each roof panel layers also, one lay design is total separated from others.

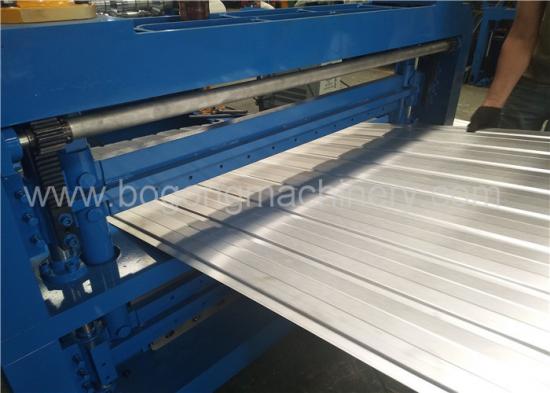

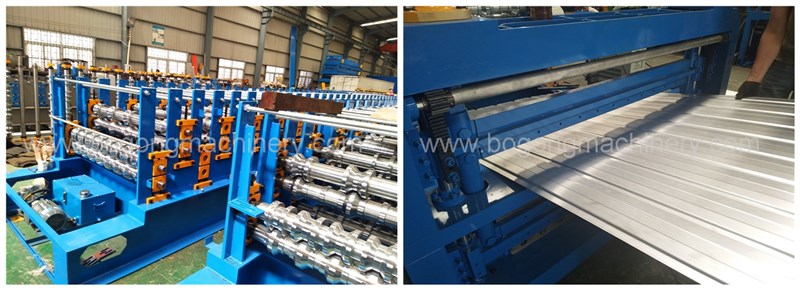

    The Custom Manufacture Three Layers Roof Panel Roll Forming Machine is installing and adjusting in our site. Install and adjust the bottom layer at first, then middle layer, at last top layers, after all roof sheet sample are confirmed well, the hydraulic cutting section can be continue.

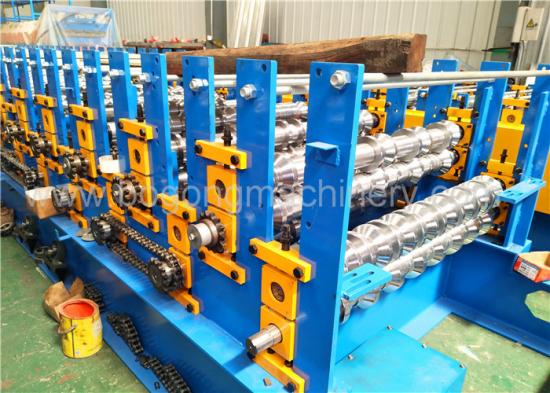

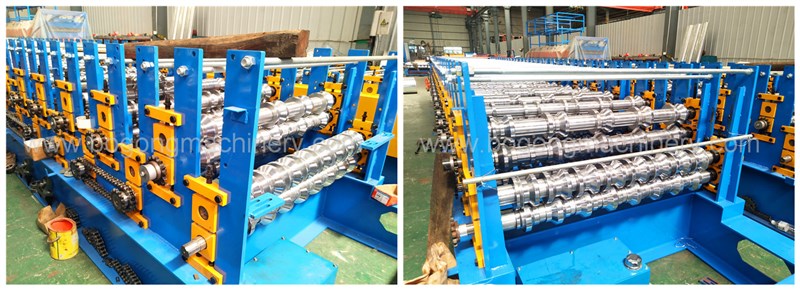

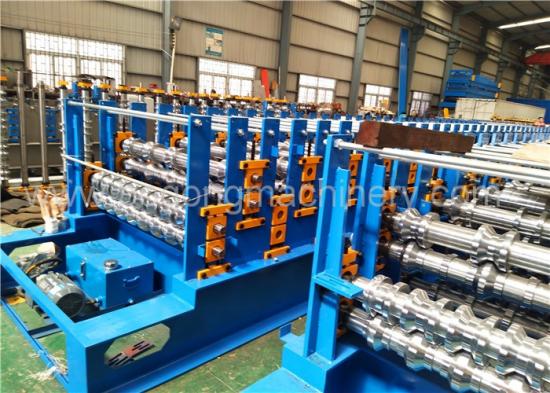

    Whole Custom Manufacture Three Layers Roof Panel Roll Forming Machine forming rollers and shafts are CNC lathe, all the rollers are coated by Chrome, good for anti-rust.


    Technical Specification

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    11KW*3

    Forming Steps

    14 steps for upper layer, 16 steps for middle layer, 17 steps for bottom layer

    Working Speed

    18-20m/min

    Thickness for Steel

    0.4-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    11500*1450*1650mm

    Weight

    11000KGS
