    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Double Layer Roofing Sheet Roll Forming Machine 915mm Raw Material Width
    • Double Layer Roofing Sheet Roll Forming Machine 915mm Raw Material Width

    • This double layer roofing sheet roll forming machine is for producing 915mm raw material width of pre-painted steel or GI steel coil, special high speed design.
    • Item No.:YX21-255-765/21-187-
      Lead Time:90days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.23-0.5mm
      Material Width: 880/900/915mm
      Covered Width: 765/748mm
      Forming Station: 16/17 Steps
      Driving Motor: 15KW*2
      Shaft Diameter: 75mm
      Roller Material: 45# Steel
      Cutting Blade Material: Cr12
      Cutting Type: No Waste Cutting
    • Contact Us
    Detailed description

    Any custom design/style are acceptable, provide OEM/ODM service


    Product Name: Double layer Roofing Sheet Roll Forming Machine 915mm Raw Material Width

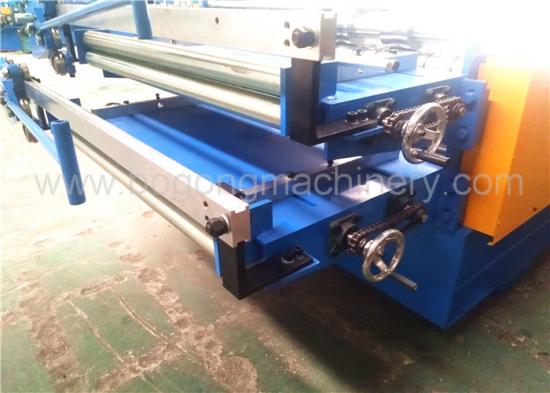

    This roll forming machine is double layer types for producing roofing sheet, at the beginning end of whole line, there is manual pre-cutter for the two roofing designs, one layer one manual pre-cutter. we have designed hand wheels at two sides of machine frame, it is for adjusting raw material width more convenient. When we want to change machine to produce another material width, loosen the screw nuts on strips top at first, then operate the hand wheel to adjust the width strips at correct position, then lock the screw nuts again on the top of strips.

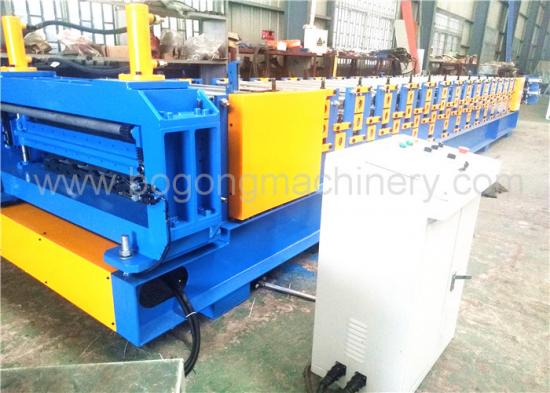

    One pressing rollers on feeding table is for compacting material down and ensure material head can go into main double layer roofing sheet roll forming machines.

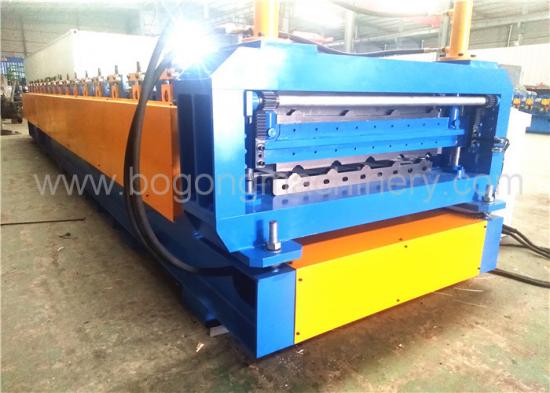

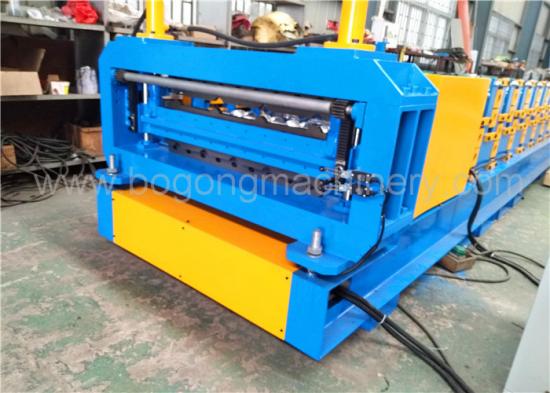

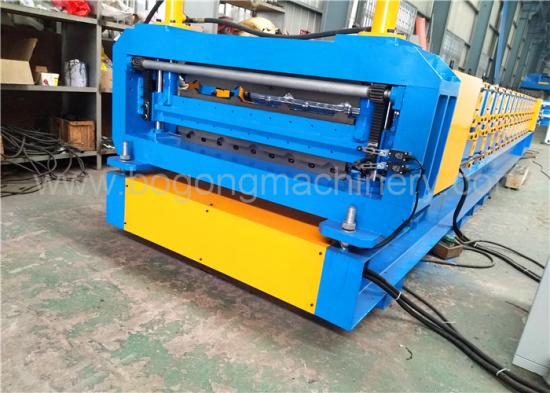

    double layer roof panel roll forming machine

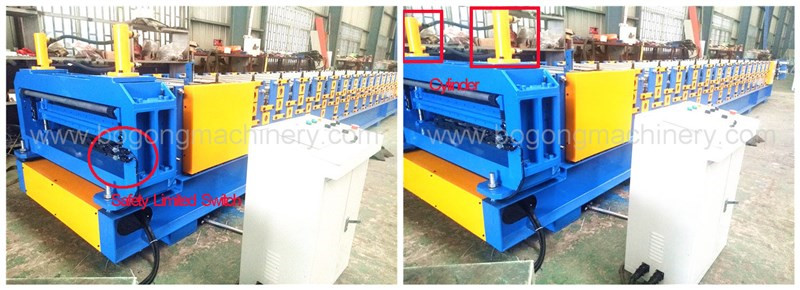

    This is the double layer roofing sheet roll forming machine, we need two cutting blades for each profile design, to avoid any accident happen, we have installed safety limited switch on machine cutting end. Our hydraulic cutting section choose gear guider type, matched with double cylinders to ensure power balance, this can ensure cutting effect more better and extend whole cutting section working life

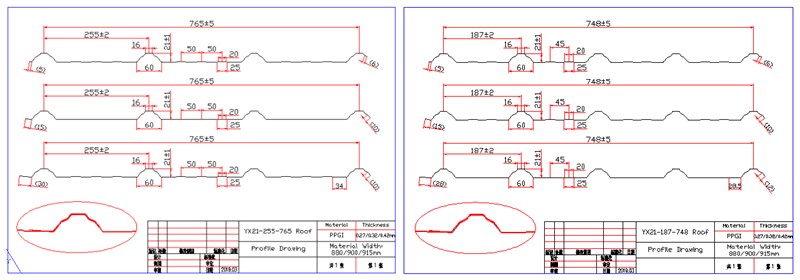

    Profile Design Drawing

    Each roofing design has three raw material width: 880mm, 900mm and 915mm and the effective width is 765mm and 748mm, material thickness is 0.27-0.5mm, for pre-painted steel coil only. If user need double layer roof panel roll forming machine for other material thickness or other material, we can custom design as requirements also.



    Technical Specification

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    15KW*2

    Forming Steps

    16 steps for upper layer, 17 steps for bottom layer

    Working Speed

    15-20m/min

    Thickness for Steel

    0.27-0.42mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9500*1450*1650mm

    Weight

    7000KGS

    Remark: YX21-255-765 roof is on upper layer, 16 steps roll forming; YX21-187-748 roof is on bottom layer, 17 steps roll forming.

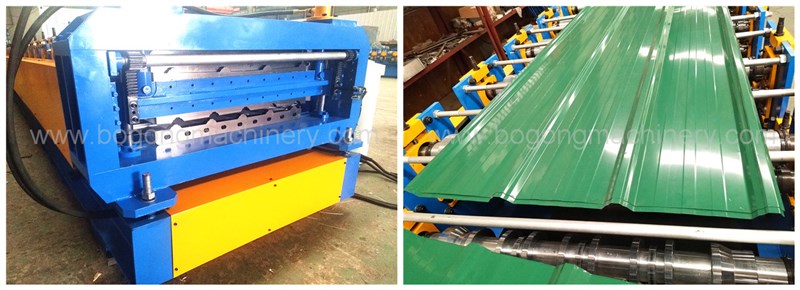

    Roof Sample and whole double layer roofing sheet roll forming machines.


    Need to buy double layer roofing sheet roll forming machines? Contact with us soon, we can customized for you as you want!
