    • Steel Metal Floor Deck Roll Forming Machine

    • Steel metal floor deck roll forming machine can be called combined deck floor roll forming machine also, it is for rollforming galvanized steel sheet into floor deck size with embossing and dot in panel surface. The raw material width normally can be 1220mm and 1250mm.
    • Product Orgin:China
      Shipping Port:Xiamen Port
      Material Thickness: 0.8-1.2mm
      Material Width: 1220mm
      Covered Width: 990mm
      Forming Station: 24
      Driving Motor: 15KW*2
      Shaft Diameter: 95mm
      Cutting Type: Waste Material Cutting
    • Contact Us
    Detailed description

    Each kinds of roll forming machines (such as steel roof, floor deck, roller shutter door, door guider, door frame, storage bracket, purlins) are acceptable.


    Product name: Steel Metal Floor Deck Roll Forming Machine

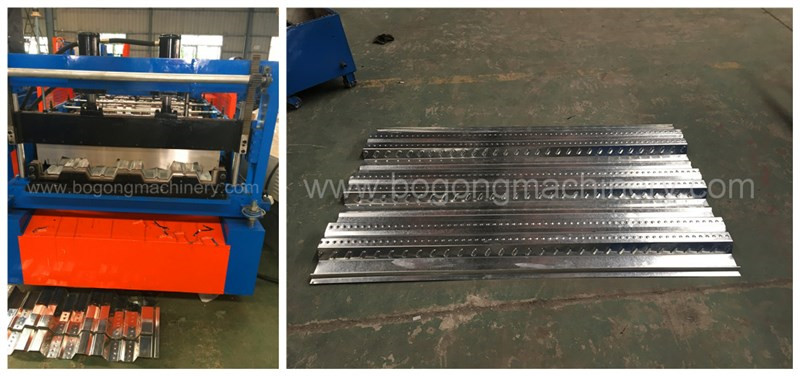

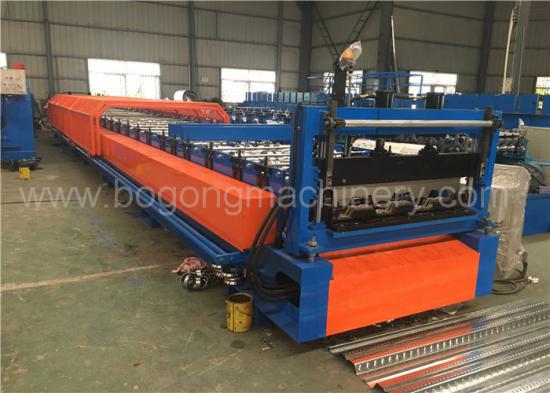

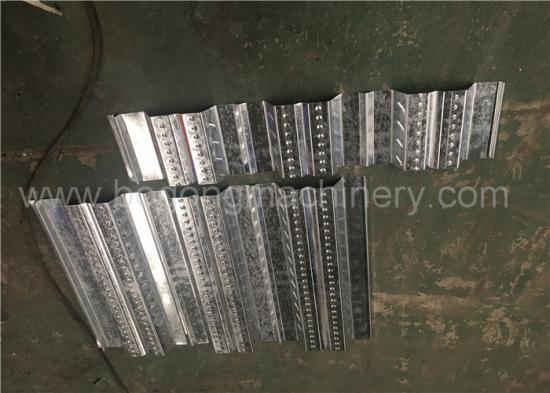

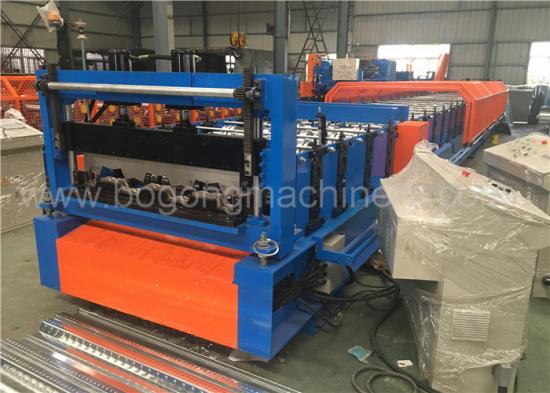

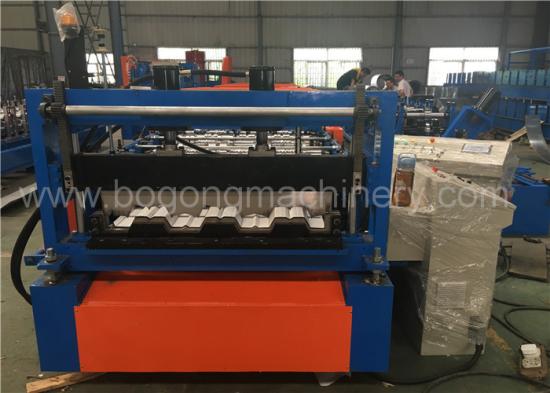

    This steel metal floor deck roll forming machine has been designed into 24 stations roll forming, with dot and embossing forming sections on floor deck top. To keep whole floor deck panel can be installed well on steel construction, the steel floor deck sample should be straight and the cutting of place should be smoothly, see bellow sample pictures, the embossing is for decoration function and whole sample should be flat not any bend. Normally, this type of steel floor is together working with concrete and sand.

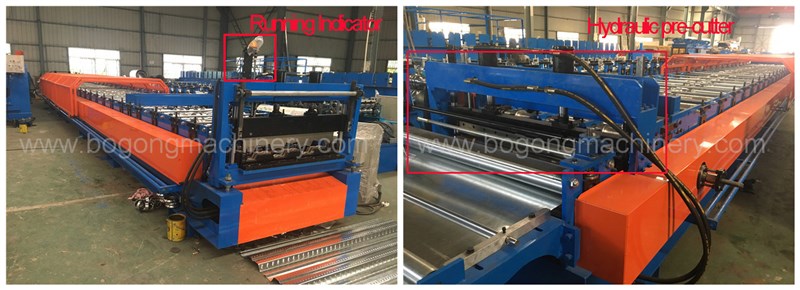

    For ensure whole steel metal floor deck roll forming machine is working safe enough, the running indicator is another new safety design of ours, this is the machine working state indicator.After we switch on the power supply, this indicator will be light. It can remind staffs work more carefully after seeing the indicator is light, also good for reminding staffs switch off the power supply after been off duty every day.

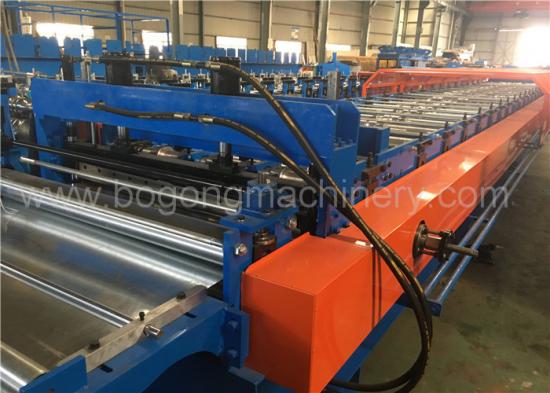

    Due to floor deck raw material thickness normally is bigger, there is hydraulic pre-cutter device on metal floor deck roll forming machine beginning end, the hydraulic motor can be the same unit as post hydraulic cutting device, it can cut the waste material head when off it needs,and this cutting action can be finished on PLC control system.

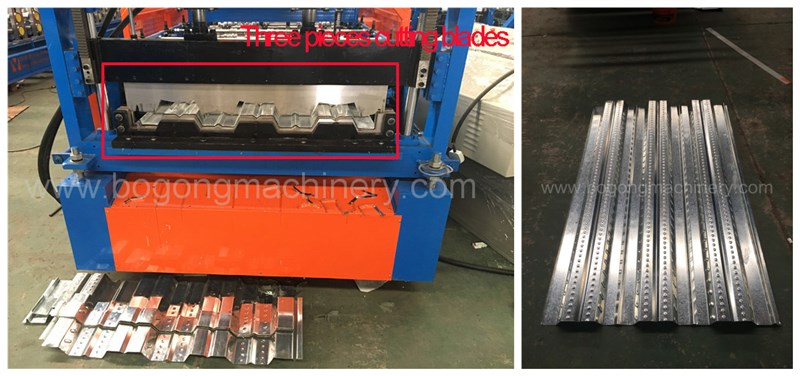

     All the hydraulic cutting type for steel sheet decking floor roll forming machines are the three pieces cutting blades, two fixed pieces at bottom and one movable piece cutting blade on up side. We also called this type of cutting type into waste cutting, because there are small waste material come out after floor deck panel has been cut off. All the waste material type cutting off are for keeping steel deck's cutting end is more beautiful.

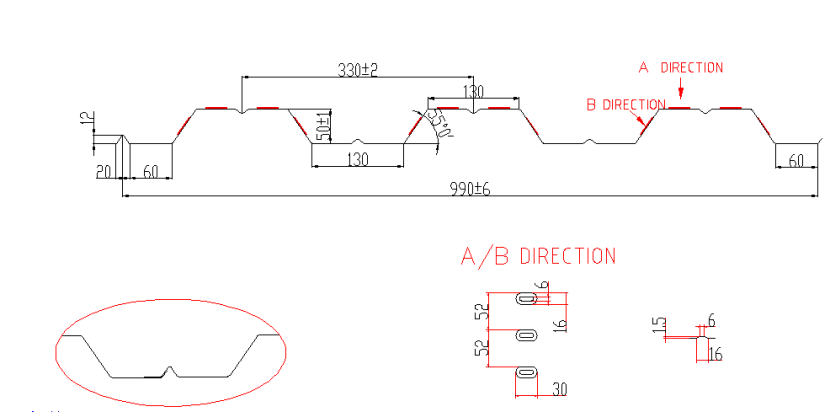

    Profile Design Drawing

    The raw material width is 1220mm, the material thickness is 0.8-1.2mm, with embossing and dot on surface, if you need any custom design of steel deck floor roll forming machine, feel free to contact with us soon.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    15KW*2

    Forming Steps

     24 steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.8-1.2mm

    Shaft Diameter

    95mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

     GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    13500*1650*1750mm

    Weight

    120000KGS


    For whole steel deck roll forming lines, we can matched with 7tons hydraulic uncoiler, safety cover, product rack or product pneumatic product stackers, it can be customized manufacture.
