    • Size Interchangeable CZ Channel Purlin Roll Forming Machine

    • 2020-07-27

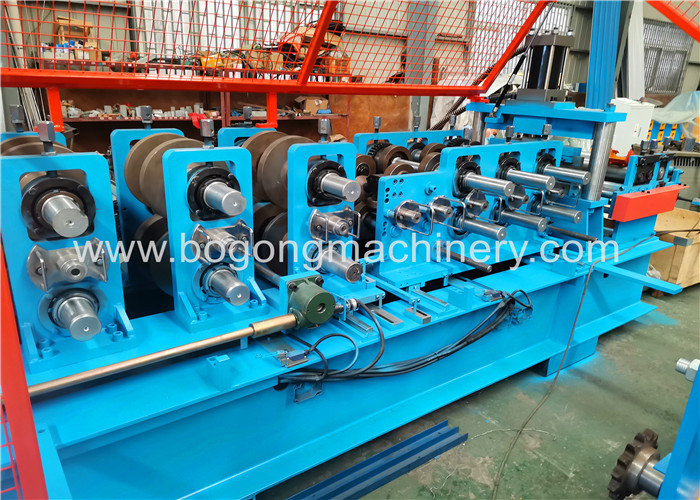

    Size Interchangeable CZ channel purlin roll forming machine


    This size interchangeable CZ channel purlin roll forming machine is high quality designed and manufactured for end user, it can both produce C purline and z purline roll forming machine, it suits for C80-300 and Z120-300, material thickness is 2-3mm hot rolled coil.  Whole purlin roll forming machine line is matched with mesh safety cover and portable electric control box, also has PLC control system.


    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH
    Driving Motor 18.5KW
    Hydraulic Cuting Motor 5.5KW
    Motor For Width Adjust 0.75KW*3
    Forming Steps 18
    Working Speed 15-20m/min
    Thickness for Steel 1.0-3.0mm (Material:PPGI,GI Steel G550)
    Shaft Diameter 80mm
    Shaft Material High grade 45# forged steel
    Roller Material Gr15 steel with polished and heat treatment
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Post punching post cutting
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+Gray White Or Customization
    Overall Size 9000*1400*1800mm
    Weight 9500KGS
