New Roller Shutter Door Machine Are Manufacturing
- 2020-08-13

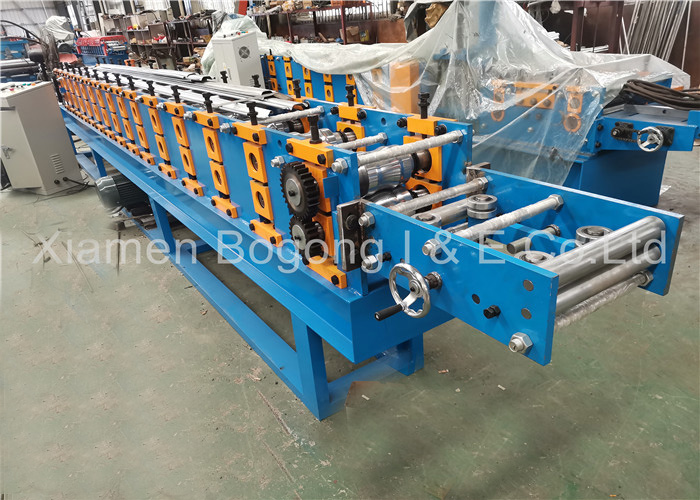

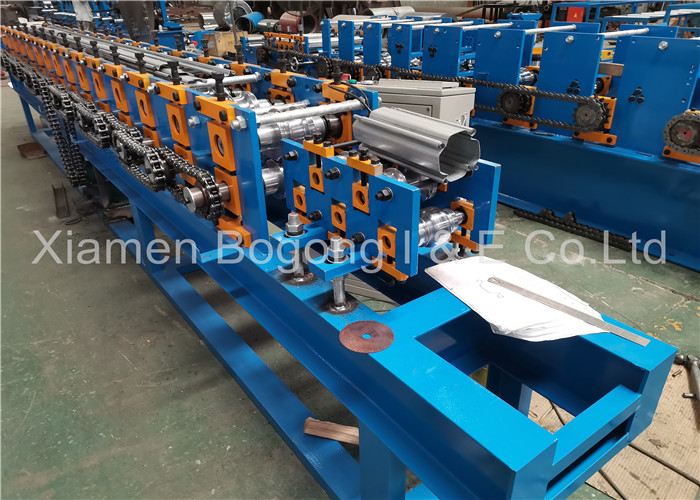

Roller shutter door machine manufacturer in China
These roller shutter door machine are traditational profile in the international market, roll forming galvanized steel and color steel coil, the raw material thickness is 0.8-1.2mm.
Technical Parameters
|
Parameters |
Specification |
|
Voltage |
380V/50HZ/3PH or customized |
|
Driving Motor |
4 KW |
|
Forming Steps |
15 steps |
|
Working Speed |
15-18m/min |
|
Thickness for Steel |
0.8-1.2mm |
|
Shaft Diameter |
65mm |
|
Shaft Material |
High grade 45# forged steel |
|
Roller Material |
G45# steel, CNC lathe,polished and chrome plated |
|
PLC Cabinet |
Schneider, Delta |
|
Encoder |
Omron |
|
Sprocket Wheel |
45 steel high-frequencies quench |
|
Cut-off System |
Post cutting, no waste cutting |
|
Cutting Blade Material |
Cr12 steel |
|
Machine Frame Material |
Fine welded structural steel; |
|
Raw Material |
GI steel G330-550 |
|
Painted Color |
Blue+Orange Or Customization |
|
Overall Size |
7200*950*1050mm |
|
Weight |
2500KGS |
