High Speed CU Purlin Roll Forming Machine
- 2020-09-14
High Speed CU Purlin Roll Forming Machine

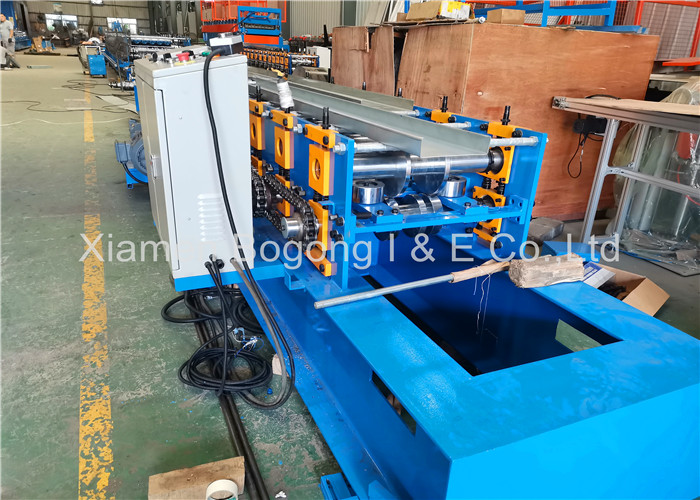

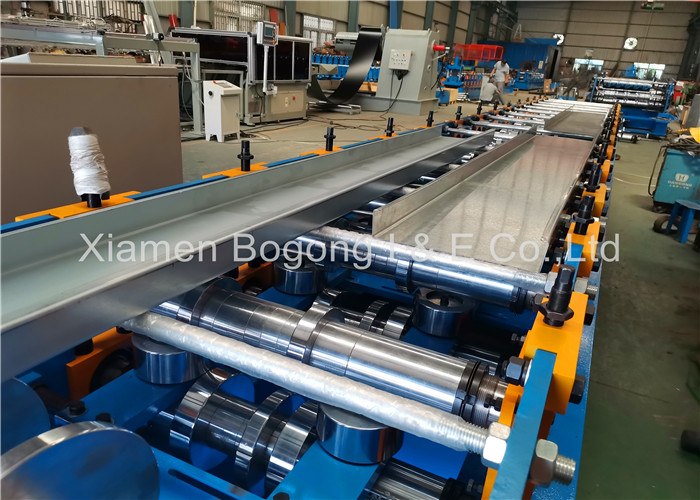

This CU purlin roll forming machine designed as 12 stations roll forming and 7.5KW motor driving, due to end user need easy operation machines, this machine is single size purlin roll forming machine.
Technical Parameters
|
Parameters |
Specification |
|
Voltage |
380V/50HZ/3PH or customized |
|
Driving Motor |
7.5KW |
|
Forming Steps |
12 steps |
|
Working Speed |
15-18m/min |
|
Thickness for Steel |
1.0-2.0mm |
|
Shaft Diameter |
75mm |
|
Shaft Material |
High grade 45# forged steel |
|
Roller Material |
G45# steel, CNC lathe,polished and chrome plated |
|
PLC Cabinet |
Schneider, Delta |
|
Encoder |
Omron |
|
Sprocket Wheel |
45 steel high-frequencies quench |
|
Cut-off System |
Post cutting, no waste cutting |
|
Cutting Blade Material |
Cr12 steel |
|
Machine Frame Material |
Fine welded structural steel; |
|
Roofing Material |
GI steel G330-550 |
|
Painted Color |
Blue+Orange Or Customization |
|
Overall Size |
7500*850*1350mm |
|
Weight |
3800KGS |
