High Speed Steel Keel Hat Roll Forming Machine Has Been Finished
- 2020-07-08

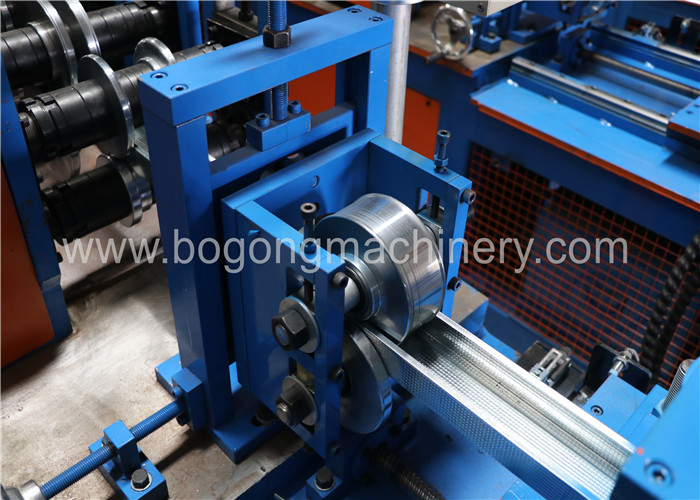

High Speed Steel Keel Hat Roll forming Machine
This high speed steel keel hat roll forming machine is special designed for our user, we choose 11kw main motor driving, in order to increasing whole line producing speed, it is flying cutting type design, the cutting section can run together with keel hat product, it is following cut.
Machine Parameters
|
Parameters |
Specification |
|
Voltage |
380V/50HZ/3PH or customized |
|
Driving Motor |
11KW |
|
Forming Steps |
11 steps |
|
Working Speed |
25-35/min |
|
Thickness for Steel |
0.4-0.8mm |
|
Shaft Diameter |
65mm |
|
Shaft Material |
High grade 45# forged steel |
|
Roller Material |
G45# steel, CNC lathe,polished and chrome plated |
|
PLC Cabinet |
Schneider, Delta |
|
Encoder |
Omron |
|
Sprocket Wheel |
45 steel high-frequencies quench |
|
Cut-off System |
Post cutting, no waste cutting |
|
Cutting Blade Material |
Cr12 steel |
|
Machine Frame Material |
Fine welded structural steel; |
|
Raw Material |
Galvanized steel |
|
Painted Color |
Blue+Orange Or Customization |
|
Overall Size |
6500*950*1050mm |
|
Weight |
2650KGS |
