Comflor 80 Floor Deck Roll Forming Machine

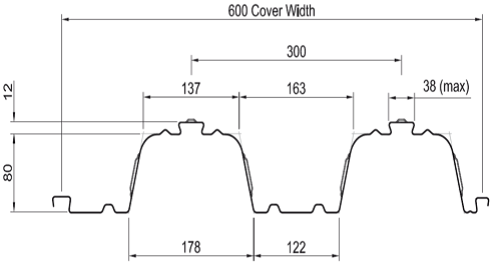

Comflor Floor Deck Roll Forming Machine has two models, comflor 80 and comflor 60, this one comflor 80 model, see below design drawing for reference. Material thickness is 1.0-1.5mm and feeding width is 1220mm:

Main Parameters Of Floor Decking Roll Forming Machine

Feeding section with guide

Gear box driving system, 32-step to form

Embossing at both sides and top side

Rollers manufactured from 45# steel, CNC lathes, Heat Treatment

Rollers surface should be like mirror effection

Shaft Diameter Φ95mm, Precision Machined

Main Motor 18.5KW*2 to driven, frequency speed control

Forming speed: Approx. 10-15m/min

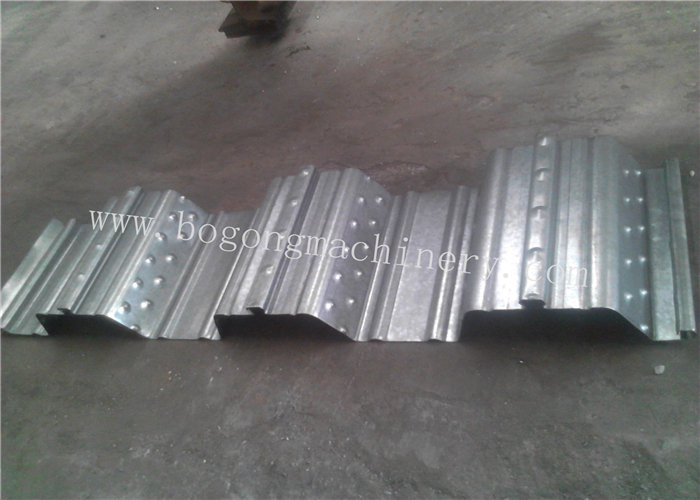

Sample pictures
