    Purlin Roll Forming Machine

    Home Purlin Roll Forming Machine Steel Frame Structure Roll Forming Machine M Purlin Shape

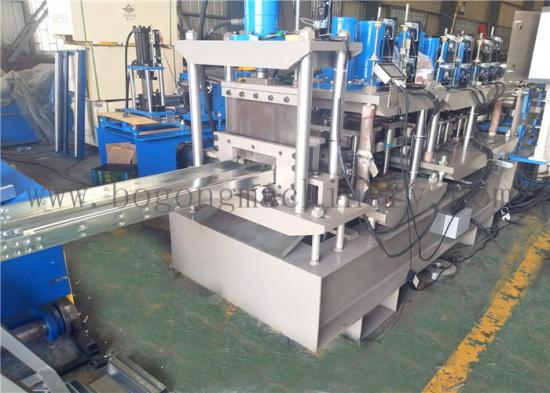

    • Steel Frame Structure Roll Forming Machine M Purlin Shape

    • This Steel Frame Structure Roll Forming Machine M Purlin Shape is design for steel frame used, it combines producing beehive hole, cutting side rolling material used, cable used hole, cutting plate web and other referring actions for steel frame structure needs.
    • Product Orgin:China
      Shipping Port:Xiamen Port
      Material Thickness: 3mm
      Forming Station: 20
      Driving Motor: 22KW
      Shaft Diameter: 90mm
      Roller Material: GCr15
      Cutting Blade Material: Cr12
    • Contact Us
    Detailed description

    All purlins, channels, steel frames used in door and steel structure roll forming machines are customized  for users in the world.


    Product Name: Steel Frame Structure Roll Forming Machine M Purlin Shape

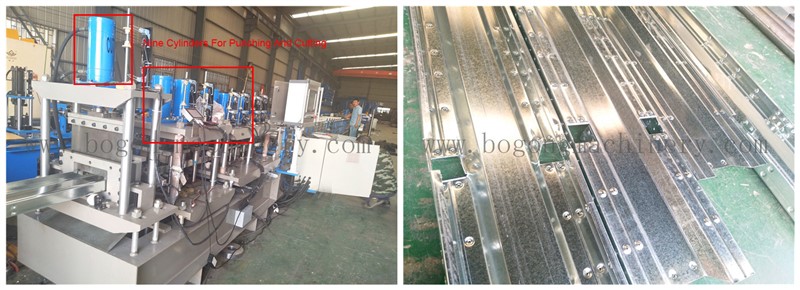

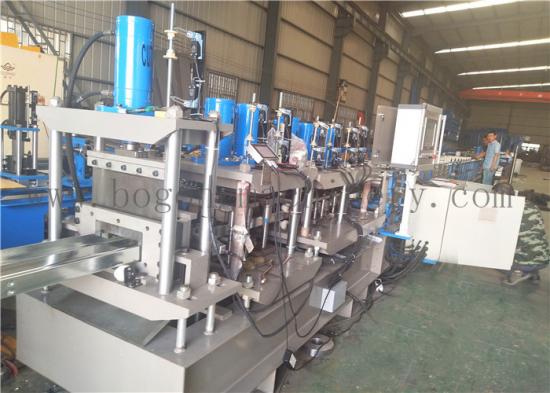

    This M280 Steel Frame Structure Roll Forming Machine has been designed with nine cylinders for all holes need by steel frame system.   The punching die list is as below.

    Description Quantity
    45*12mm punching die(for cutting side rolling material) 2sets
    Ф3.3mm beehive hole die 2 sets
    60*30mm punching die (for cable used hole) 1 set
    89*50 sqaure hole die ( for cutting plate web) 1 set
    45°angle cutting die 1 set
    plate web shrink die 1 set
    Cutting blades 1 set

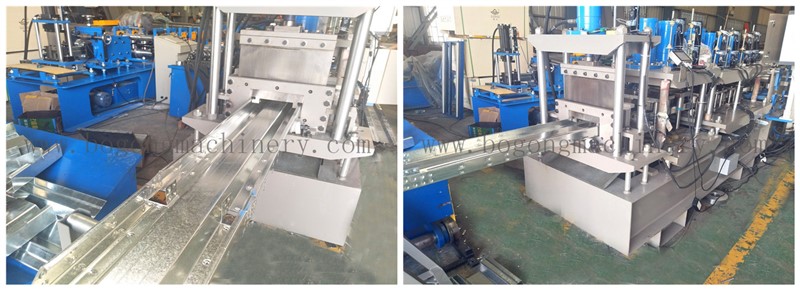

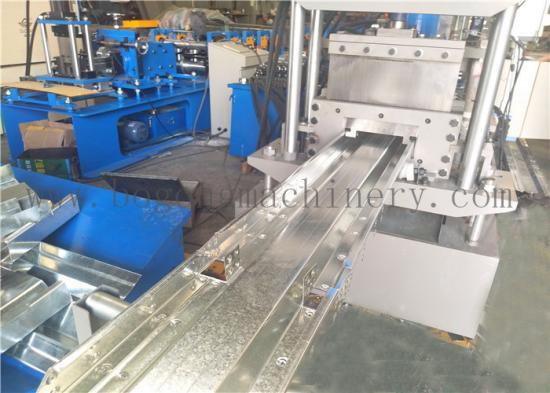

    There are one pre-cutter for material head and another post cutter for purlin shapes.



    Whole Steel Frame Structure Roll Forming Machine M Purlin Shape chooses two pieces of cutting blades cutting, no waste, because of too many holes to punching, the producing line roll forming speed is lower than common purlin machines. PLC system to combine all actions worked one by one step, no mistake and more precision accuracy.

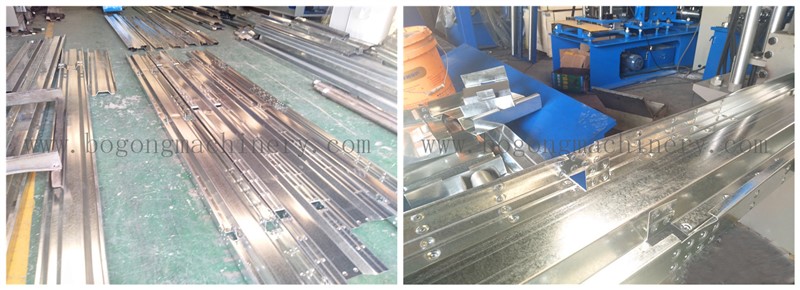

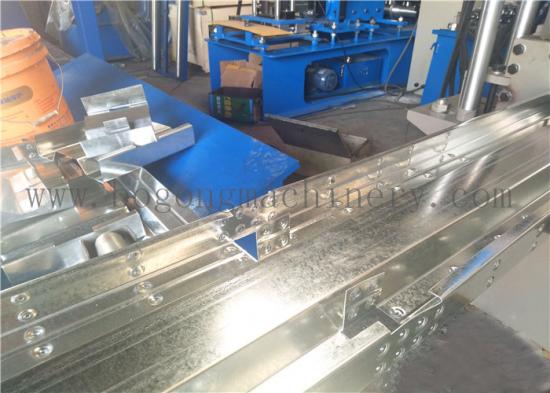

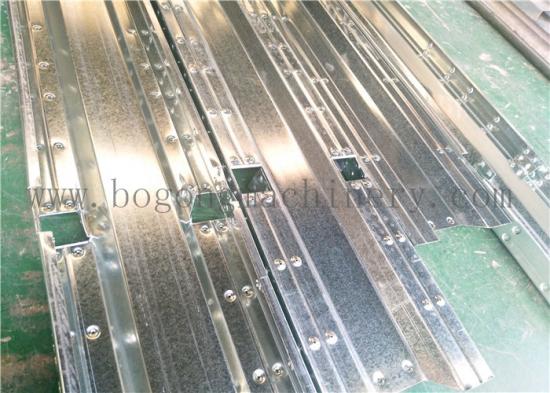

    Steel frame structure samples produced by this Steel Frame Structure Roll Forming Machine. What we should take care is ensure all the samples straighten enough, the holes are in their correction position and the cutting position are smoothly.
