Steel Shutter Door Roller Forming Machines Are Ready For Shipment
- 2019-12-11

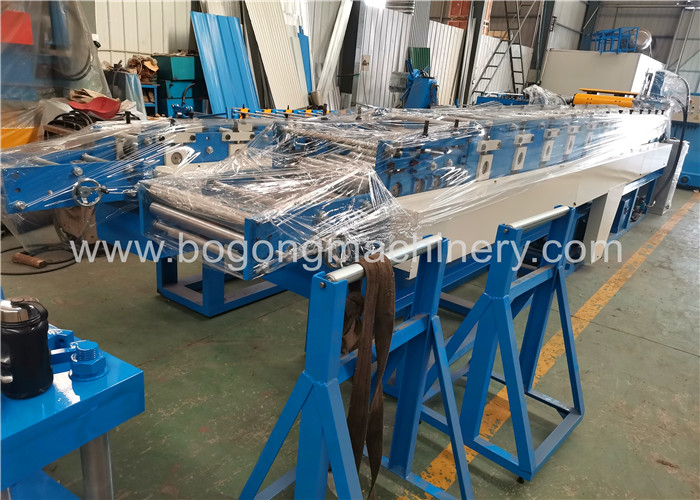

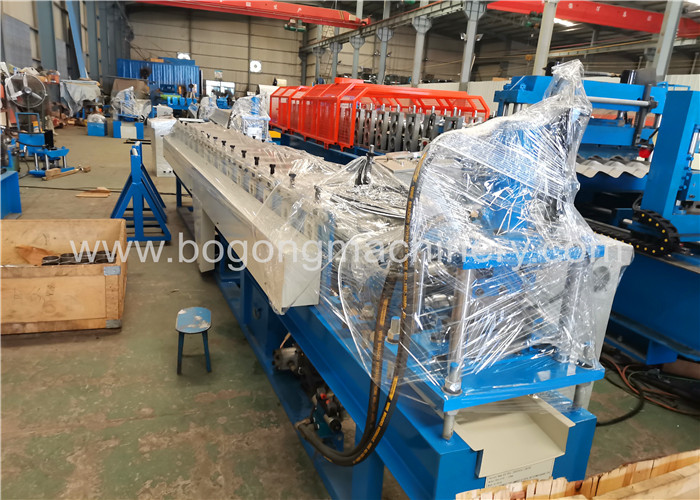

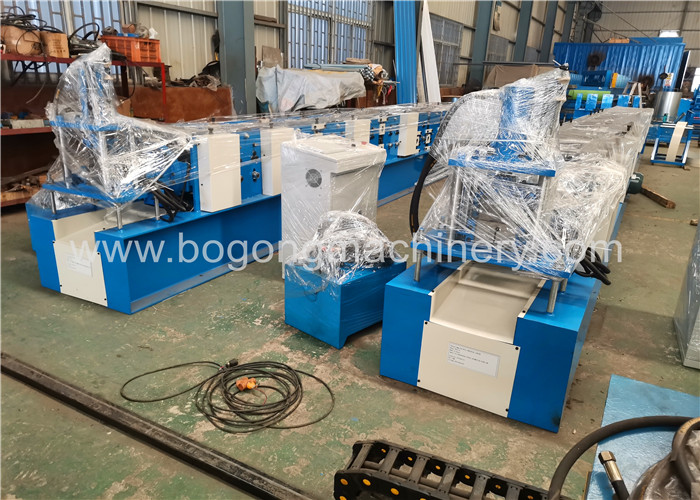

Steel Shutter Door Roller Forming Machines Are Ready For Shipment
This batch steel shutter door roller forming machines includes shutter door forming machine, door rail U shape roll forming machine, shutter door bottom plate profile roll forming machine. These are full set for industrial roller shutter door used.
Shutter door Roll Forming Machine Parameters As Below:
|
Parameters |
Specification |
|
Voltage |
380V/50HZ/3PH or customized |
|
Driving Motor |
4KW |
|
Forming Steps |
15steps |
|
Working Speed |
10-15m/min |
|
Thickness for Steel |
0.6-1.0mm |
|
Shaft Diameter |
65mm |
|
Shaft Material |
High grade 45# forged steel |
|
Roller Material |
G45# steel, CNC lathe,polished and chrome plated |
|
PLC Cabinet |
Schneider, Delta |
|
Encoder |
Omron |
|
Sprocket Wheel |
45 steel high-frequencies quench |
|
Cut-off System |
Post cutting, no waste cutting |
|
Cutting Blade Material |
Cr12 steel |
|
Machine Frame Material |
Fine welded structural steel; |
|
Raw Material |
Galvanized steel |
|
Painted Color |
Blue+Orange Or Customization |
|
Overall Size |
7500*950*1050mm |
|
Weight |
2500KGS |
Welcome to contact us for more information about this machine.
