Door Roll Forming Machines Shipment For Brazil

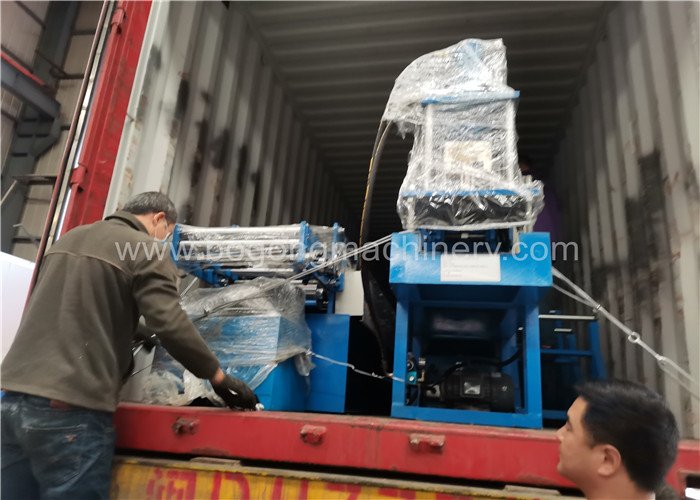

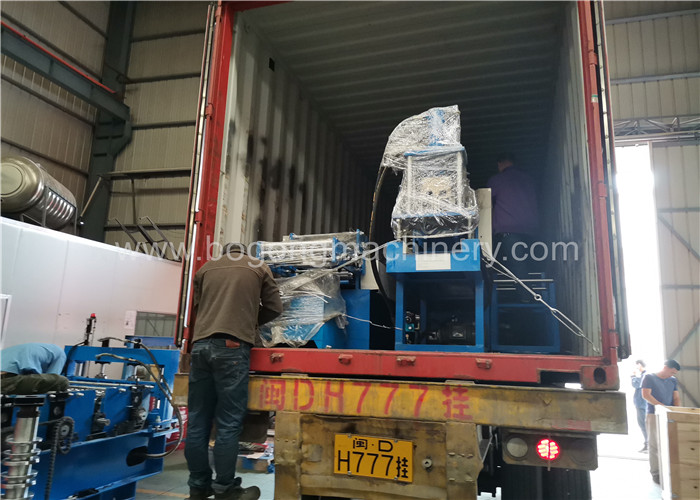

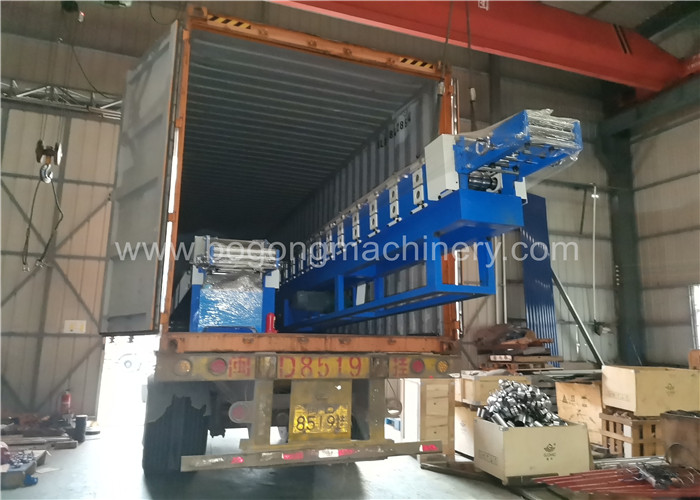

This our last batch of steel roller shutter door machines containers loading before Chinese new year holiday. Full set door used roll forming machines includes shutter door roll forming machine, door frame roll forming machine, shutter door bottom plate roll forming machines.
Whole steel plate profile roll forming machine line includes decoiler, straightening device, feeding section, roll forming machine and hydraulic cutting device.
Technical Parameters
|
|
Parameters | Specification |
Voltage | 380V/50HZ/3PH or customized |
Driving Motor | 5.5KW |
Hydraulic Motor3 | KW |
Forming Steps | 20 steps |
Working Speed | 10-15m/min |
Thickness for Steel | 1.0-1.5mm |
Shaft Diameter | 75mm |
Shaft Material | High grade 45# forged steel |
Roller Material | G45# steel, CNC lathe,polished and chrome plated |
PLC Cabinet | Schneider, Delta |
Encoder | Omron |
Sprocket Wheel | 45 steel high-frequency quench |
Cut-off System | Post cutting, three pieces of cutting blades |
Cutting Blade Material | Cr12 steel |
Machine Frame Material | Fine welded structural steel; |
Raw Material | Galvanized steel |
Painted Color | Blue+Orange Or Customization |
Overall Size | 11500*950*1050mm |
Weight | 7000KGS |
