Steel Profile Roll Forming Machine Manufacture Process Diagram
2019/10/09

Steel Profile Roll Forming Machine Manufacture Process Diagram

Roll Form Technolgy's use of the most up to date CNC techniques in the production of roll forming machine manufacturer, ensures a quality of finish and accuracy far superior to that obtainable from traditional methods of manufacture.

The need to produce costly templates is completely eliminated with manufacturing lead time greatly reduced.

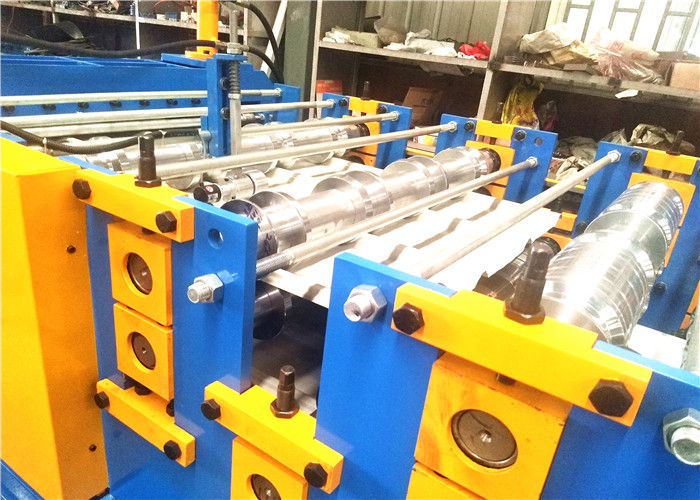

Roll forming rollers manufactured in tool steel can, if required, be turned in the hardened condition (60/62 Rockwell scale C), to alleviate problems of distortion from hardening. This is extremely beneficial particularly for 'tight tolerance', painted or coated sections.

All rolls are inspected and polished after manufacture.

Flying Shears
The range of flying shears available is very comprehensive and depends on the particular application.

we Xiamen Bogong Machinery have designed our own range of hydraulic cutting which are capable of single or double shear production.

A range of length measuring systems can be fitted from a simple 'end stop' through to open or closed loop systems with incremental encoders fitted via a measuring wheel. Whole line and actions are controlled by PLC control system.

The die or press accelerator can be either a pneumatic or hydraulic cylinder or servo drive via rack and pinion to give precise accuracy on cut lengths. The cutting blades are custom designed and manufactured according to steel profile.

Any combination of mechanical or hydraulic shear can be supplied with special presses designed to customers specification.

Pre-Punch Tools, Jigs and Fixtures

Xiamen Bogong Machinery manufacture their own pre-punch hydraulic presses and the necessary press tools to suit. Having our own toolmakers ensures both press and tool is compatible and can be tried out before delivery.

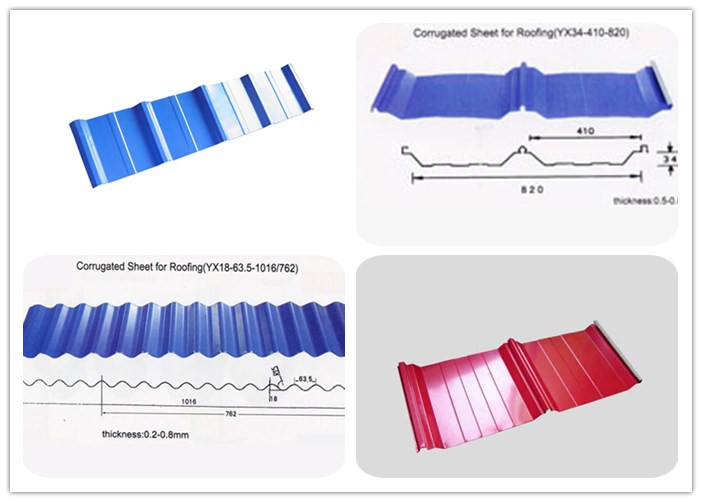

For this type of processing, kinds of steel roll forming machine can be customized design and manufactured as user's required profile. Welcome to contact us for more information.
